User’s Manual of GS-5220-16S8C & GS-5220-16S8CR
4.9.5.1 QoS Egress Port Schedule and Shapers
The Port Scheduler and Shapers for a specific port are configured on this Page. The QoS Egress Port Schedule and Shaper
sscreen in Figure 4-9-5 appears.

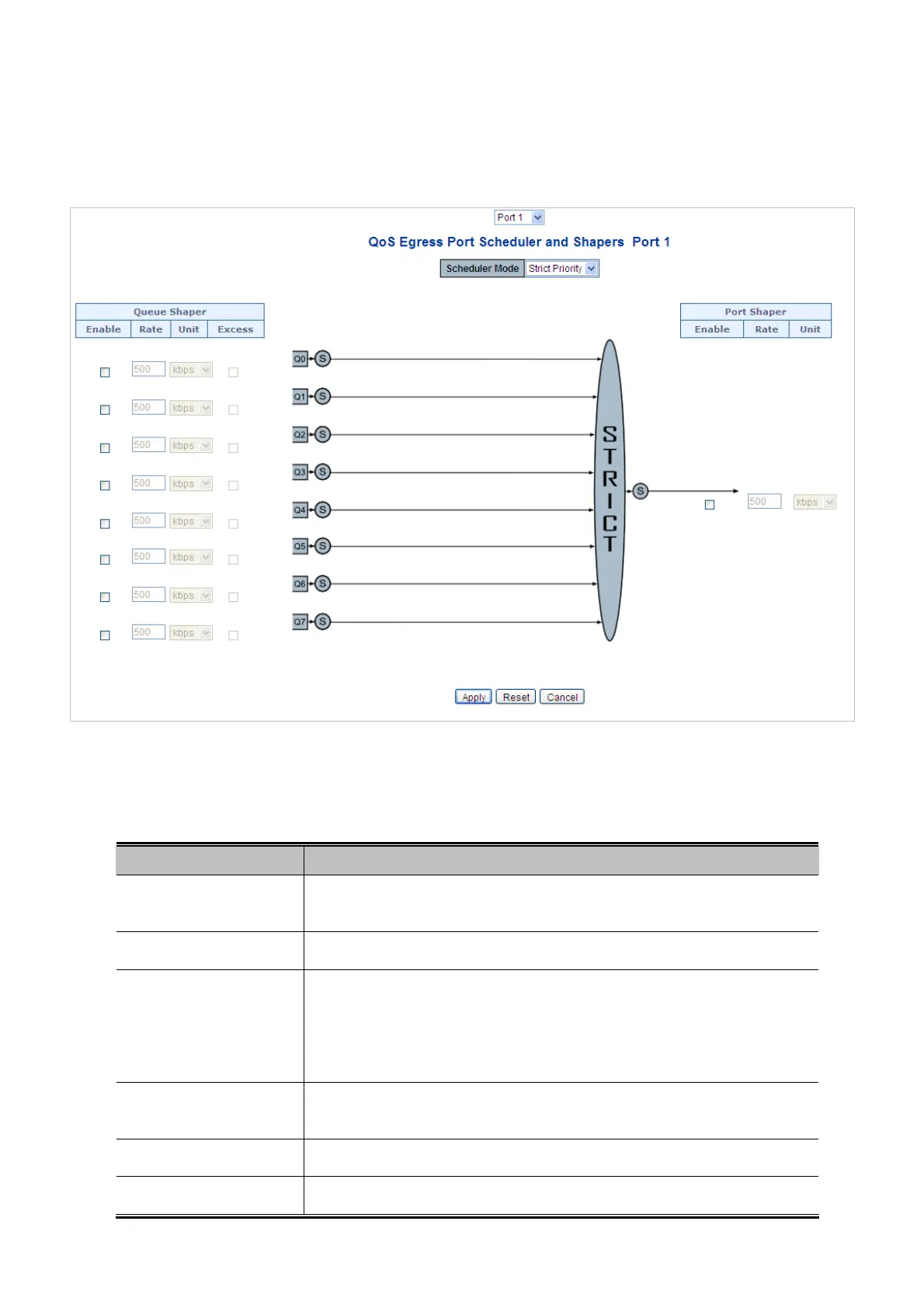

Figure 4-9-5: QoS Egress Port Schedule and Shapers Page Screenshot
The Page includes the following fields:
Object Description
Controls
whether the scheduler mode is "Strict Priority" or "Weighted" on this
switch port.
 Schedule Mode
 Queue Shaper Enable
Controls whether the queue shaper is enabled for this queue on this switch port.
Controls the ra
te for the queue shaper.
This value is restricted to 100-1000000 when the "Unit" is "kbps", and it is
restricted to 1-13200 when the "Unit" is "Mbps".
The default value is 500.
 Queue Shaper Rate
Controls the un
it of measure for the queue shaper rate as "kbps" or "Mbps".
The default value is "kbps".
 Queue Shaper Unit
 Queue Shaper Excess
Controls whether the queue is allowed to use excess bandwidth.
 Queue Scheduler
Controls the weight for this queue.
187
