RED Drop Probability Function

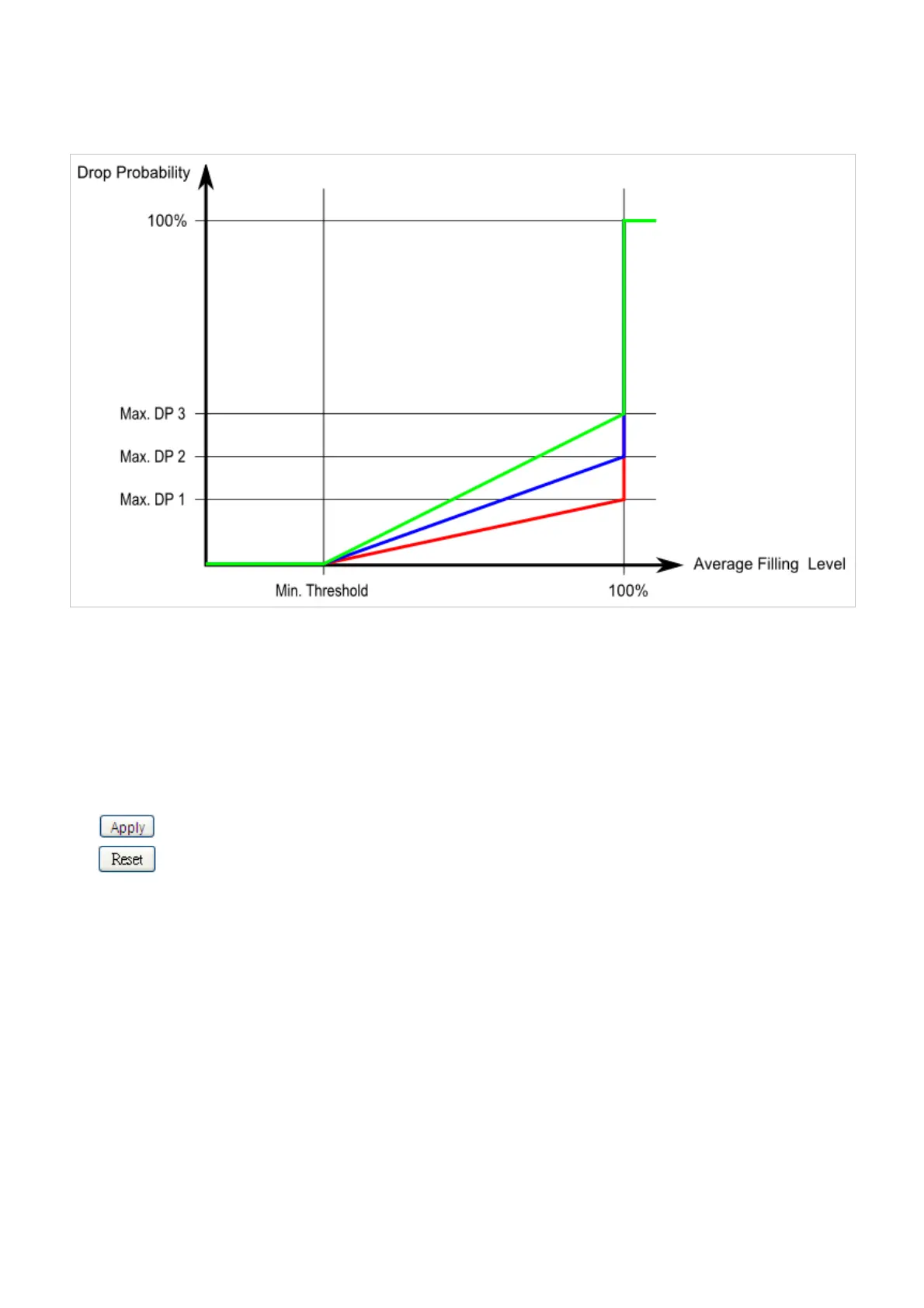

The following illustration shows the drop probability function with associated parameters.
Max. DP 1-3 is the drop probability when the average queue filling level is 100%. Frames marked with Drop Precedence Level 0
are never dropped. Min. Threshold is the average queue filling level where the queues randomly start dropping frames. The
drop probability for frames marked with Drop Precedence Level n increases linearly from zero (at Min. Threshold average queue
filling level) to Max. DP n (at 100% average queue filling level).
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
