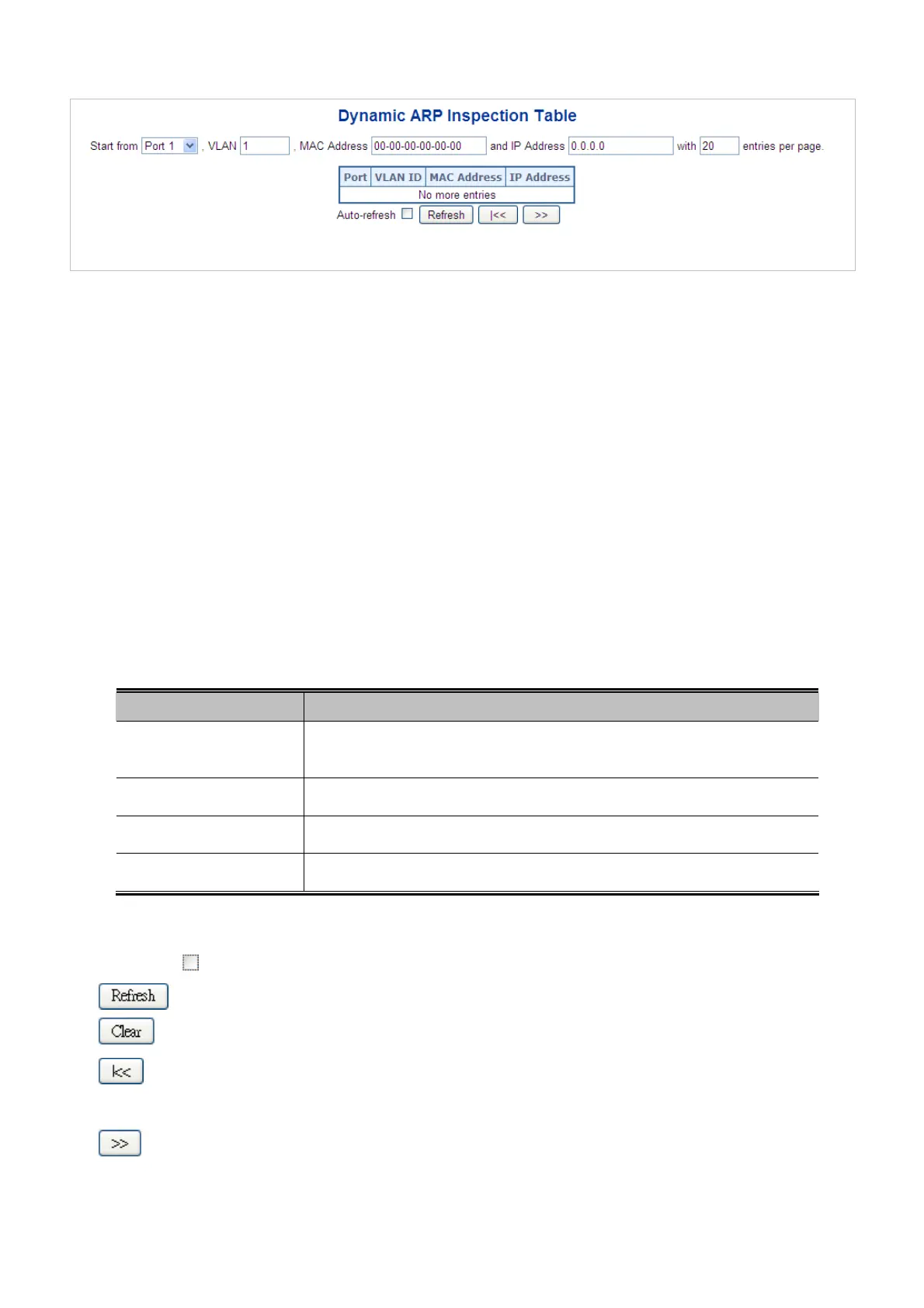

Figure 4-12-15: Dynamic ARP Inspection Table Screenshot
Navigating the ARP Inspection Table
Each Page shows up to 99 entries from the Dynamic ARP Inspection table, default being 20, selected through the "entries per
Page" input field. When first visited, the web Page will show the first 20 entries from the beginning of the Dynamic ARP
Inspection Table.
The "Start from port address", "VLAN", "MAC address" and "IP address" input fields allow the user to select the starting point
in the Dynamic ARP Inspection Table. Clicking the “Refresh” button will update the displayed table starting from that or the
closest next Dynamic ARP Inspection Table match. In addition, the two input fields will - upon a “Refresh” button click - assume
the value of the first displayed entry, allowing for continuous refresh with the same start address.
The “>>” will use the last entry of the currently displayed as a basis for the next lookup. When the end is reached the text "No
more entries" is shown in the displayed table. Use the “|<<” button to start over. The Page includes the following fields:
Object Description
Port
The port number for which the status applies. Click the port number to see the
status for this particular port.
VLAN ID
The VLAN ID of the entry.
MAC Address
The MAC address of the entry.
IP Address
The IP address of the entry.
Buttons
Auto-refresh : Check this box to refresh the Page automatically. Automatic refresh occurs every 3 seconds.
: Refreshes the displayed table starting from the "Start from MAC address" and "VLAN" input fields.
: Flushes all dynamic entries.
: Updates the table starting from the first entry in the MAC Table, i.e. the entry with the lowest VLAN ID and MAC
address.
: Updates the table, starting with the entry after the last entry currently displayed.
