User’s Manual of GS-5220-16S8C & GS-5220-16S8CR
All frames transmitted on a given port (also known as egress or destination mirroring).
Mirror Port Configuration

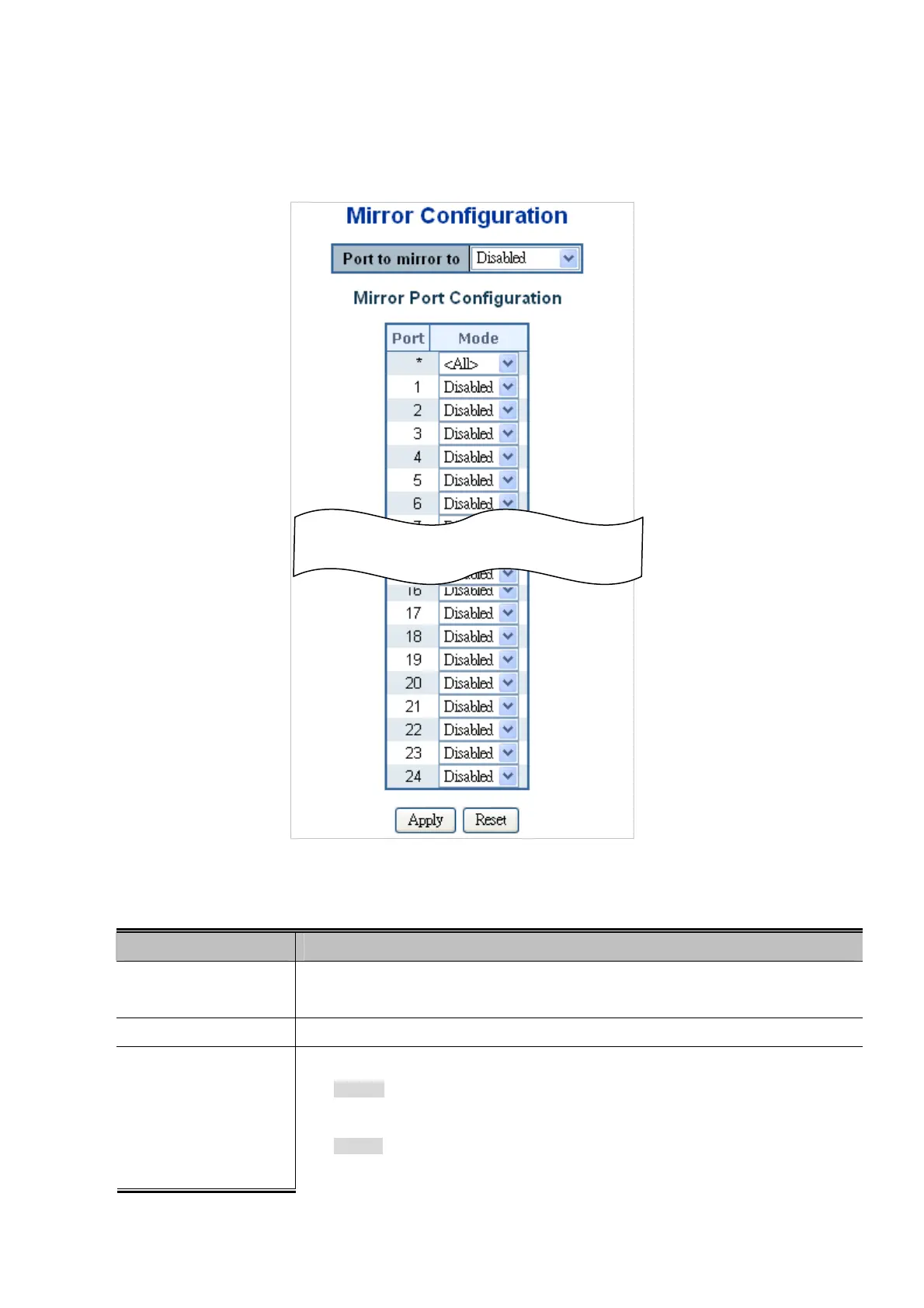

The Port Mirror screen in Figure 4-4-8 appears.
Figure 4-4-8: Mirror Configuration Page Screenshot
The Page includes the following fields:
Object Description
Port to mirror on
Frames from ports that have either source (rx) or destination (tx) mirroring enabled are
mirrored to this port. Disabled disables mirroring.
Port
The logical port for the settings contained in the same row.
Select mirror mode.
■ Rx only: Frames received at this port are mirrored to the mirroring port. Frames
transmitted are not mirrored.
Mode
■ Tx only: Frames transmitted from this port are mirrored to the mirroring port. Frames
received are not mirrored.
94
