Command Guide
-24-
Chapter 2 CONSOLE CLI MANAGEMENT
2.1 Terminal Setup
To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to RJ45 type of serial
(console) port of the Industrial Managed Switch.

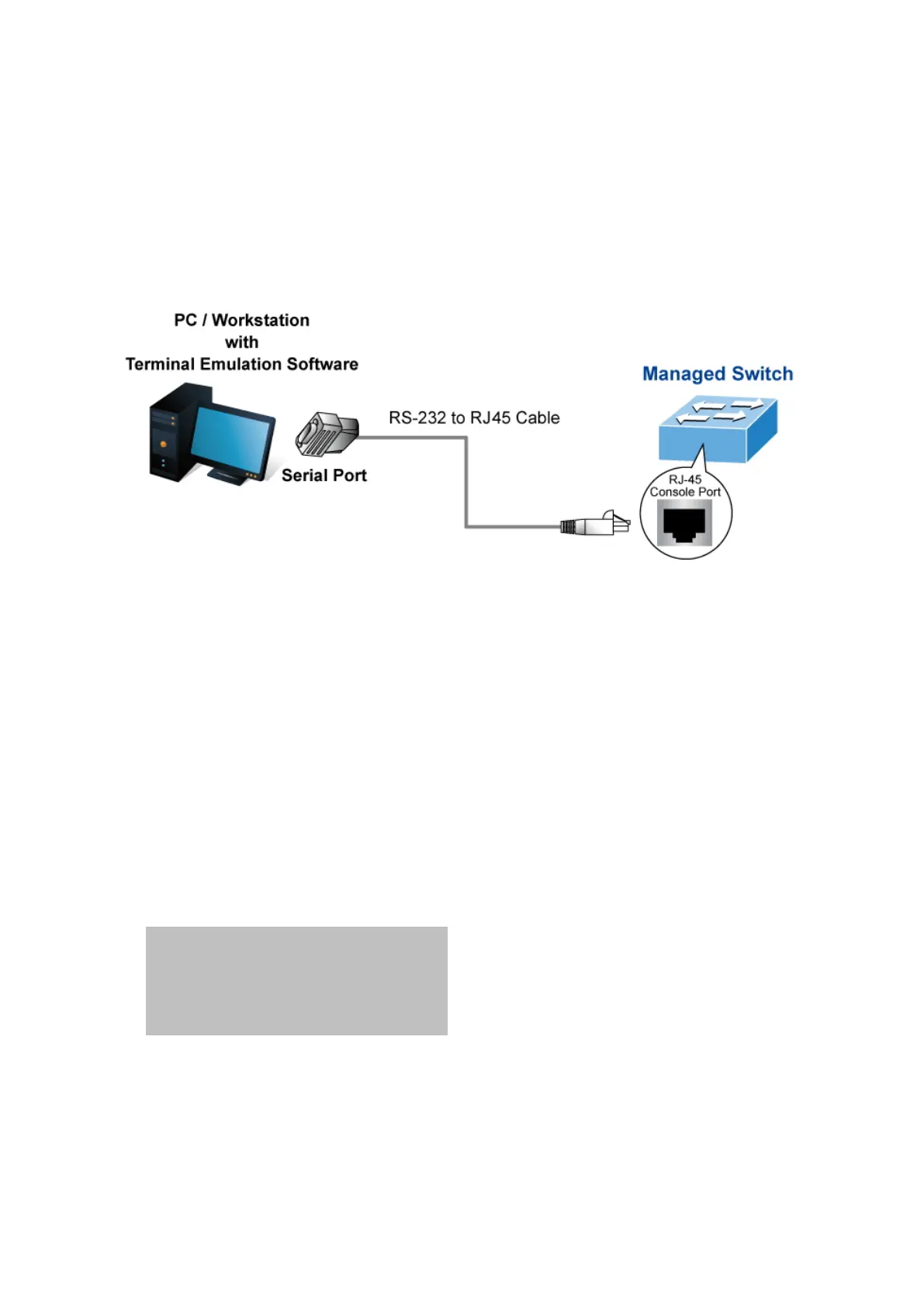

Figure 2-1 Industrial Managed Switch Console Connectivity
The console port of the Industrial Managed Switch is an RJ45 type, RS-232 serial port connector. It is an interface for
connecting a terminal directly. Through the console port, it provides rich diagnostic information including IP address setting,
factory reset, port management, link status and system setting. Users can use the attached RS-232 cable in the package and
connect to the console port on the device. After the connection, users can run any terminal emulation program (Hyper Terminal,
ProComm Plus, Telix, Winterm and so on) to enter the startup screen of the device.
A terminal program is required to make the software connection to the Industrial Managed Switch. Windows' Hyper Terminal
program may be a good choice. The Hyper Terminal can be accessed from the Start menu.
1. Click START, then Programs and Accessories, and then Hyper Terminal.
2. When the following screen appears, make sure that the COM port should be configured as:
Baud : 115200
Data bits : 8
Parity : None
Stop bits : 1
Flow control : None
