9 SYSTEM SETUP
User’s & installation manual Planmeca ProScanner 23
9.4.2 USB interface cable
The scanner interfaces with computer via USB
2.0 cable.
NOTE
Use the USB cable delivered with Planmeca
ProScanner.
CAUTION
Use only devices meeting the requirements
of IEC60950-1 or IEC60601-1 when con-
necting to the Planmeca ProScanner via
USB port.
1. Connect the USB cable to the scanner’s USB
port.
2. Connect the other end of the cable to the USB
2.0 port on the computer.
9.4.3 Ethernet cable
The scanner interfaces with computer via
Ethernet cable (RJ45 CAT.5E FTP).
1. Connect the cable to the scanner’s Ethernet
port.
2. Connect the other end of the cable to the
Ethernet port of the Ethernet-hub or directly to
your computer.
To connect to PC directly, use the supplied
crossed type cable.
9.4.4 Planmeca ProID RFID reader cable
The reader interfaces with computer via mini
USB cable.
1. Connect the other end of the cable to the
reader’s USB port.
2. Connect the other end of the cable to the USB
port on the computer.
.

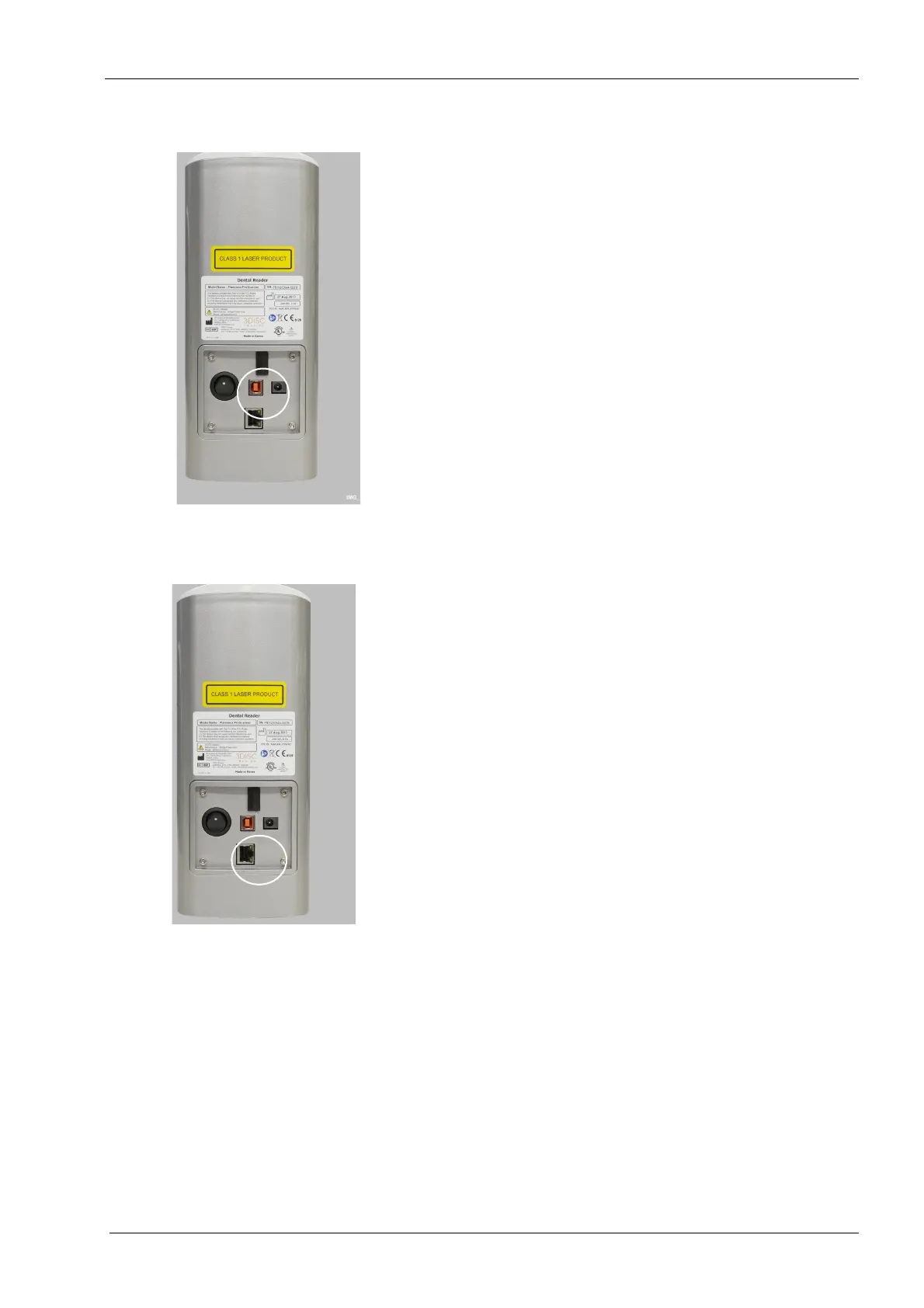

USB
connector
Ethernet port
