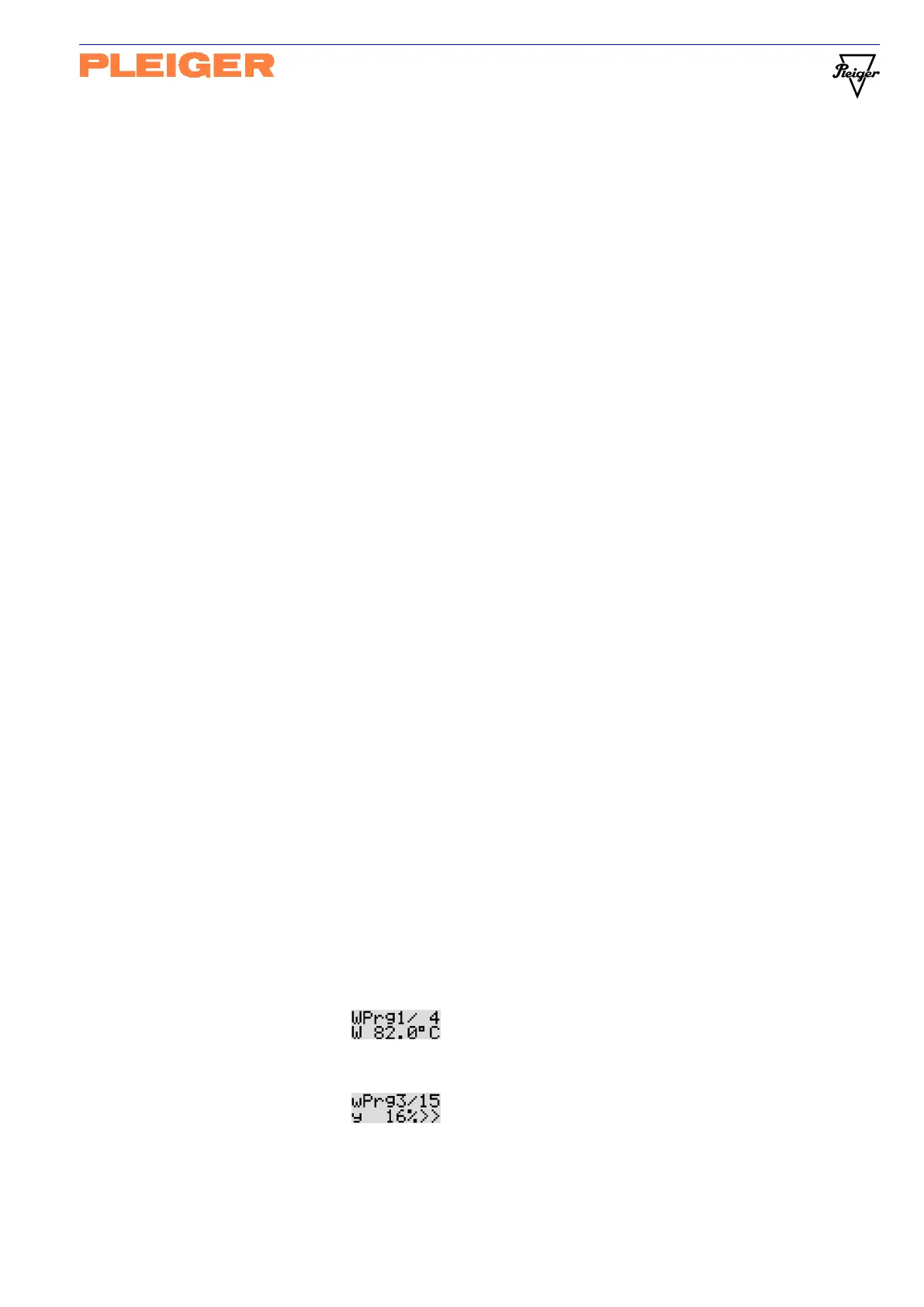

Example controller 1
1. Line: StpPrg1 in step 4
2. Line: current setpoint (1Setp W)
Example controller 2
1. Line: SwPrg3 in step 15
2. Line: controller output (2Feed+y)
In the 1
st
example the current setpoint of the pro-
gramme is displayed in the second line. This shows
the run of the setpoint between the different steps.
Programme entry
As shown in the table under ‘Parameterisation’, the number (1 to 5) of the programme to be created or
edited is first of all selected in the parameter “SpPrgNo”. The selected programme is then loaded into
the entry field. The individual steps, each defined by “Setp” (value) and “Time” (value) (1 to 20), are
then displayed and can be entered or edited.
Programme functions
In addition to starting, stopping and ending a setpoint programme, the following additional special
programme functions are also available:
Programme start: When a setpoint programme is activated it starts beginning at step 1.
The activation can either be triggered by an external switchover of the setpoint to
a setpoint programme or
by changing the type of the current setpoint to a setpoint programme StpPrg(1-5).
This selection should be carried out in Manual operating mode -
MANUAL = controller stop, after which the programme is started in Automatic
mode by pressing the Auto button.
Programme stop: If the controller is switched to Manual mode by pressing the Man and Exit buttons
(simultaneously), the setpoint programme will be stopped at the last time setpoint.
It will subsequently be resumed on pressing the Auto button for Automatic mode.
Programme end: When Time = 0s is programmed in a step, the setpoint programme will be ended
in the preceding step. The final setpoint programmed in this preceding step will
continue to be controlled as a fixed value.
Programme call: When Time = negative (-1 to -5) is programmed in a step, the corresponding
setpoint programme (1 to 5) will be called and started at step 1.
Programme loop: If the same setpoint programme is called within a programme call, e.g. in the final
programme call (Time = -(own StpPrg No), the setpoint programme will be
started again at step 1, thus creating a continuous programme loop.
Display
To display the state of the setpoint programme during execution a special display function is provided.
This function displays the number (1 to 5) and the current step (1 to 20) of the setpoint programme in a
single line.
The following figures show some examples how to use this function.
