4.6
FUEL INJECTION

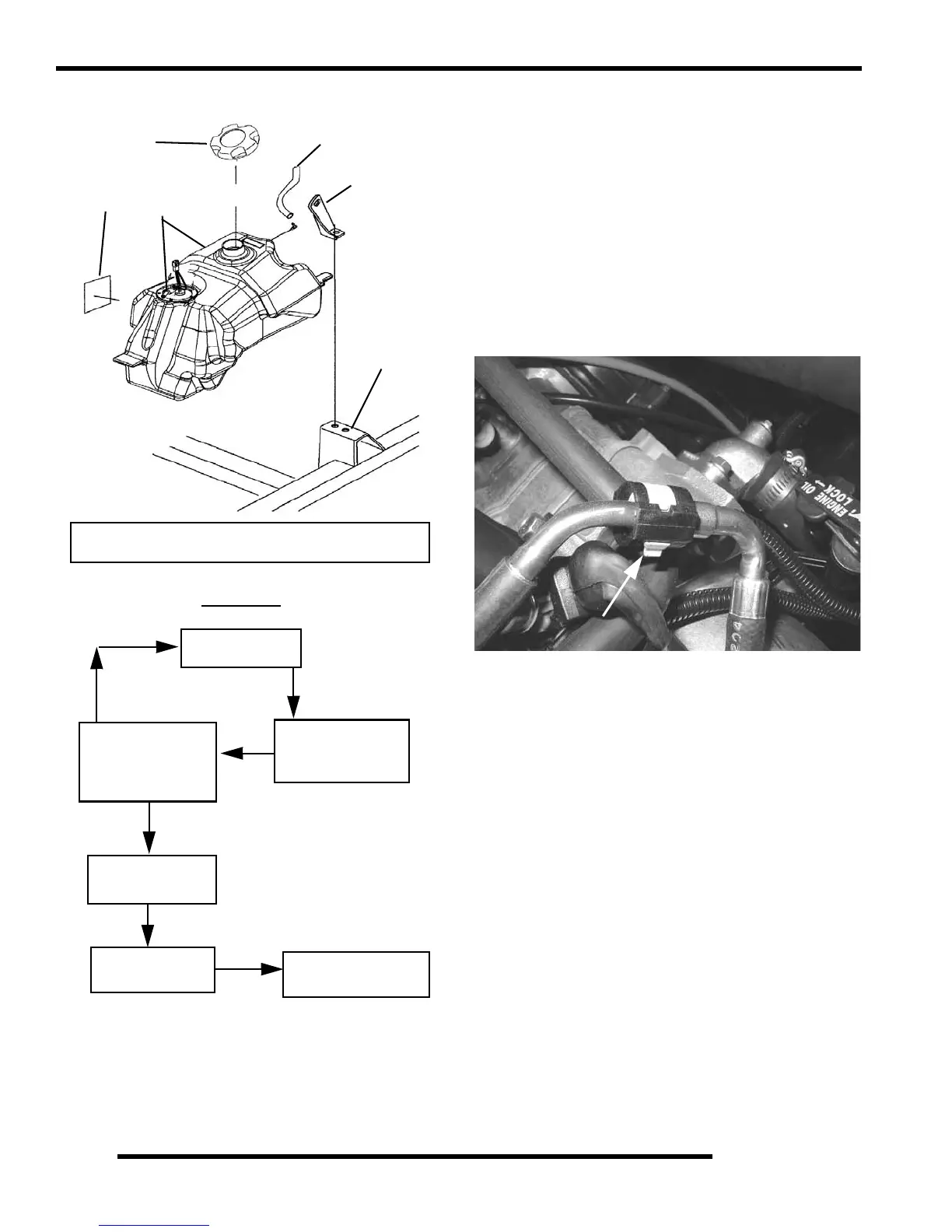

Fuel Tank Assembly Fuel Lines - Quick Connect
Sportsman 700/800 EFI models use quick connect fuel lines.
Refer to the steps below for fuel line removal.
1. Place a shop towel around the fuel line to catch any
dripping fuel. Squeeze the connector tabs together and
push the locking slide back.
2. Pull on the fuel line for removal.
3. To install the line, verify the connector and fuel tank nipple
are clean and free of debris.
4. Snap the fuel line back over the nipple and slide the locking
mechanism back into place. Verify the connector tabs snap
back into place.
1. Cap 2. Tank Vent 3. Tank Mount 4. Fuel Pump/
Tank Assembly 5. Frame 6. Protective Foil
1
2
3
4
5
6
Fuel Tank
* Fuel Filters
(30 micron)
(10 micron)
* Fuel Pump /
Pressure Regulator
Unit
External Fuel
Filter - 10 micron
Fuel Supply Rail
Injectors
Fuel Flow
* component
located in fuel tank
Squeeze Connector Tabs
