10.32
ELECTRICAL

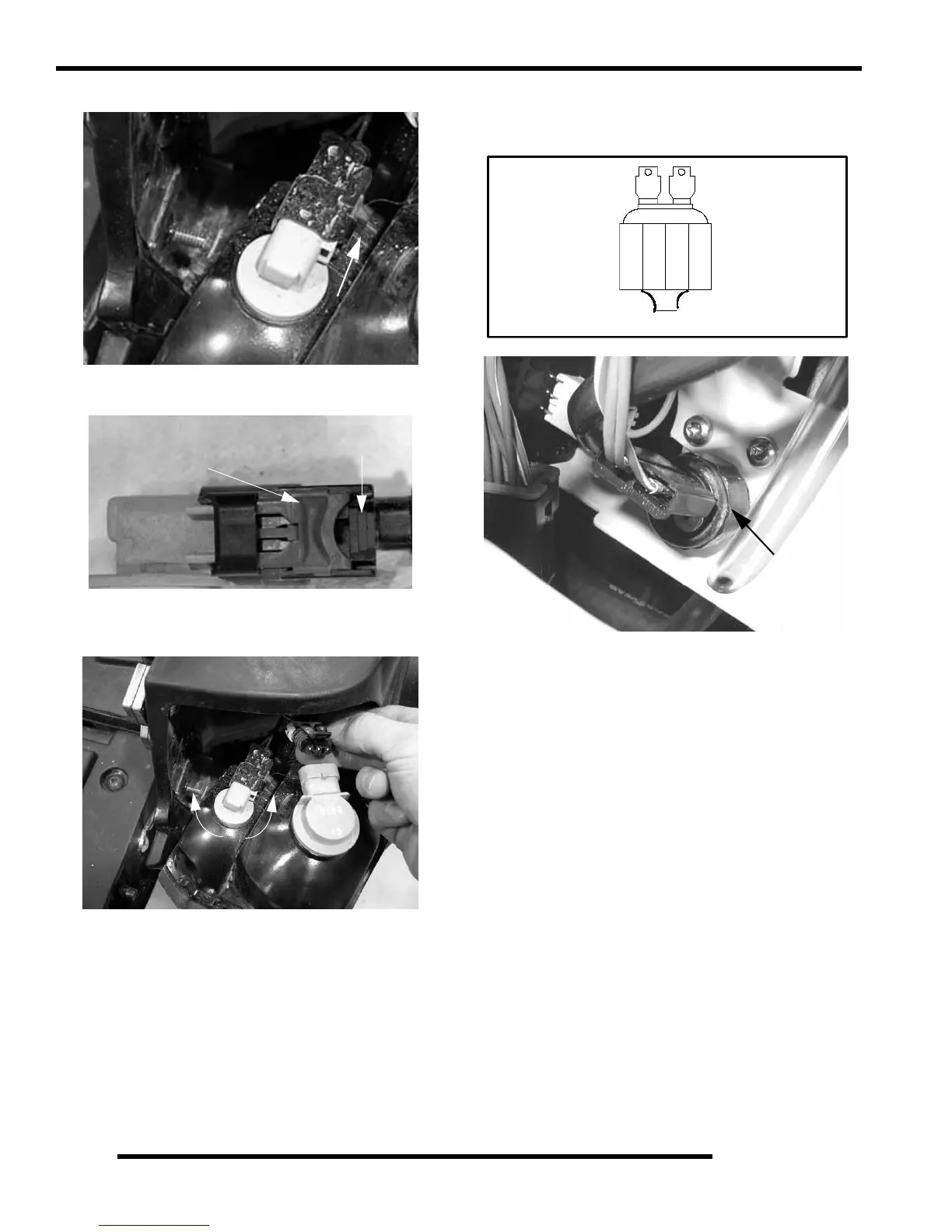

3. Carefully pull out the red locking tab on the connector.
4. Once the red tab is pulled out, press in on the black tab and
pull out to disconnect harness.
5. Disconnect the two wire harnesses connected to each of the
taillights. Twist bulb housing to remove from lamp
assembly.
Brake Light Switch
1. Remove the front cover.
2. Disconnect wire harness from switch.
3. Connect an ohmmeter across switch contacts. Reading
should be infinite (
.
4. Apply brake at handlebar lever and check for continuity
between switch contacts. Replace switch if there is no
continuity or greater than .5 ohms resistance when the brake
is applied with slight pressure.
Black Tab
Red Tab
Remove
Install
Brake Lamp Switch
Brake Switch
Location
To Next Page
