10.31
ELECTRICAL
10

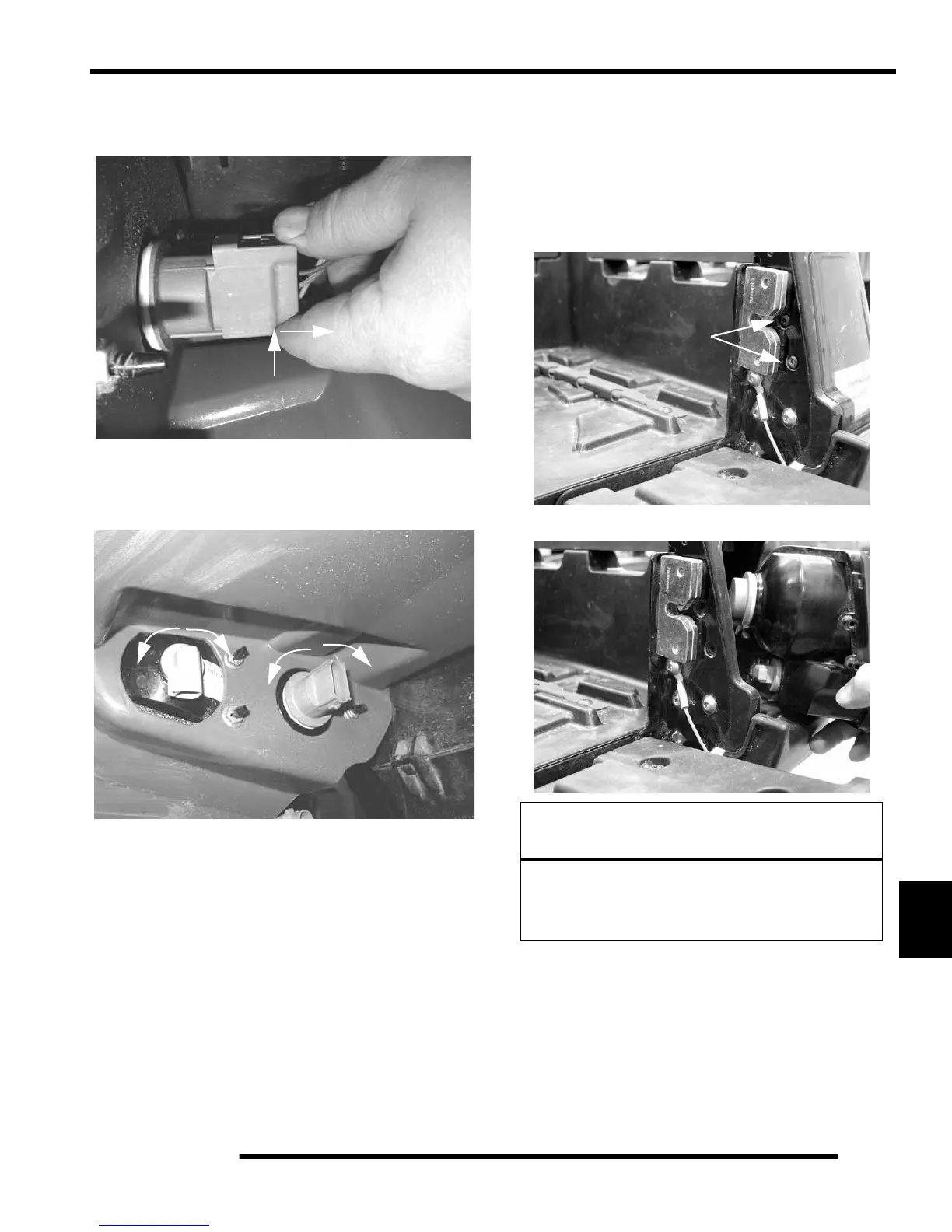

2. To remove the brake light electrical connector (B), press in
on the tab on the connector to unlock the connector and pull
the connector from the bulb assembly.
3. To remove either of the bulbs, turn the holder assembly
counter-clockwise to remove and pull out. Turn the holder
assembly clockwise to install. Refer to the parts manual for
the correct bulb part number.
X2 BRAKE LIGHT / WORK LIGHT (Deluxe)
REPLACEMENT
The brake light (A) and the work light (B) are both located in the
rear tail lamp housing.
1. Open the tailgate and remove the 2 torx head screws (A)
securing the rear taillights on each side of the cargo box as
illustrated below.
2. Remove the taillight assembly from the cargo box.
A
CAUTION
Use caution when disconnecting smaller light bulbs.
Follow the procedures to avoid damaging the
connector. Damaging connectors may require wire
harness replacement.
A
