Polaris 2007 SPORTSMAN X2 800 - Sportsman Body Assembly Exploded View

5.12
BODY / STEERING / SUSPENSION

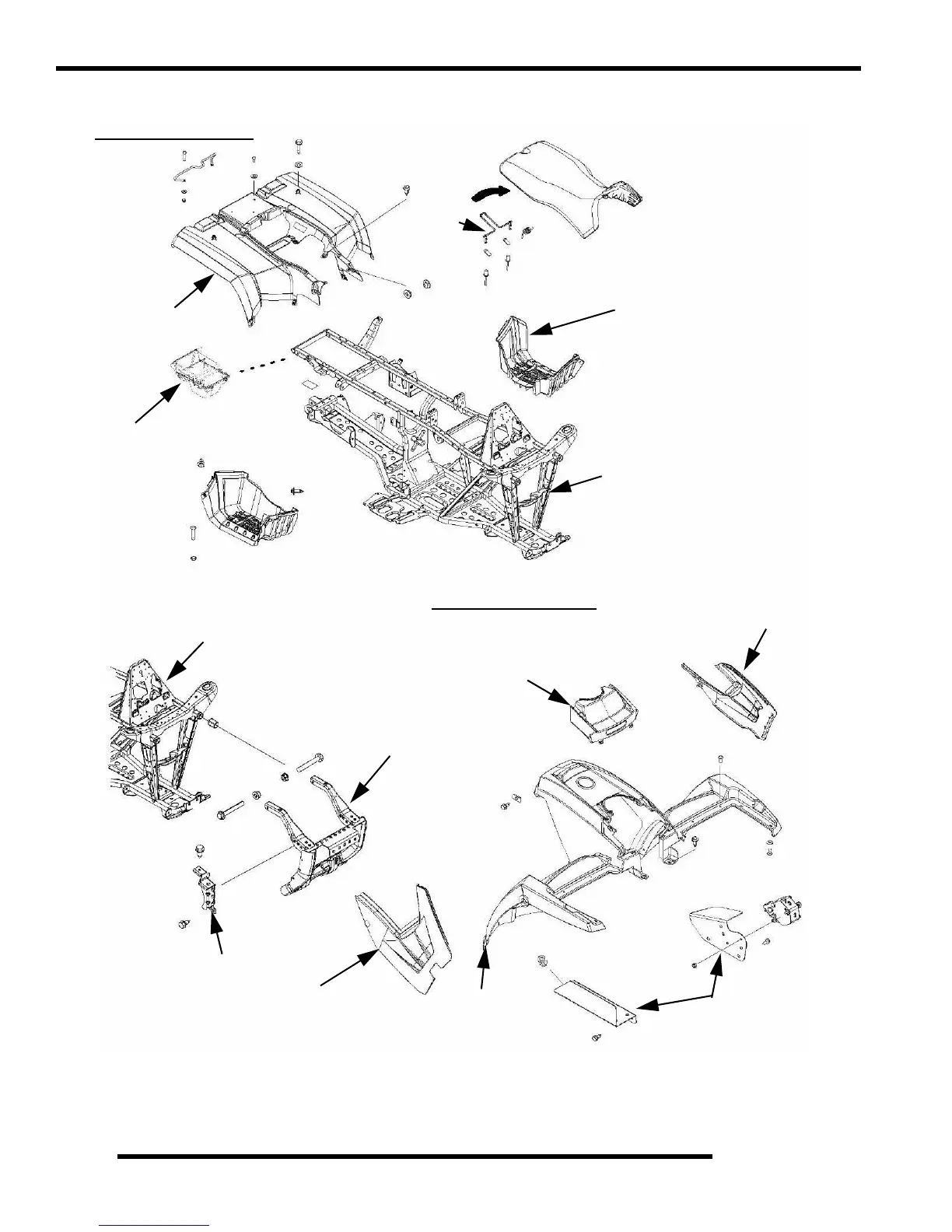

Sportsman Body Assembly Exploded View
Rear Cab Assembly
Pull UP on rear of seat and
back to disengage tabs at front
of seat.
Seat Latch
Rear Cab
Storage
Frame
Wheelwell
Frame
Front Brush Guard
Support
Side Cover
Splash Shields
Front Cab
Front Cover
Front Cab Assembly
