7.34
FINAL DRIVE

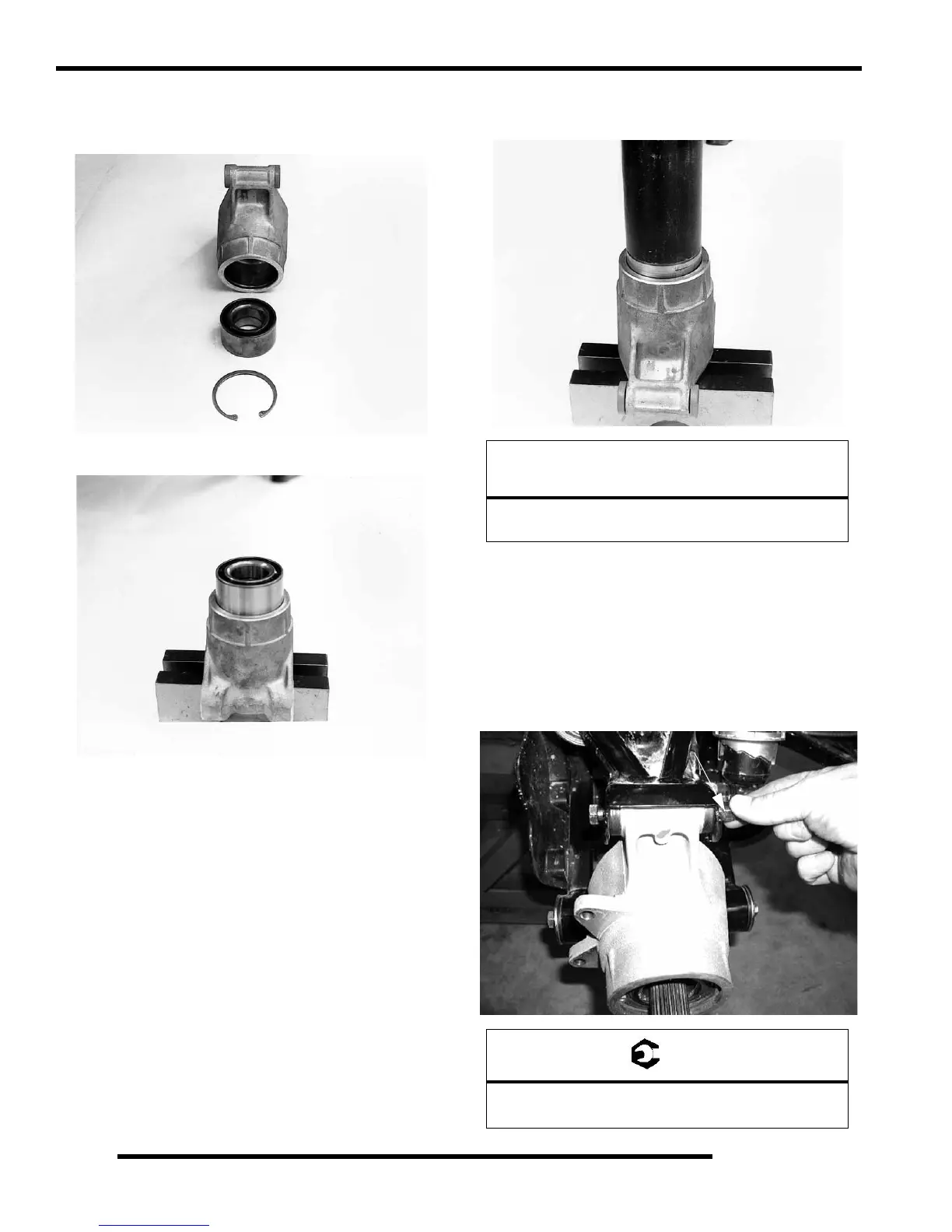

Assembly
1. Support bottom of bearing carrier housing.
2. Start bearing in housing.
3. Press bearing into place until outer race bottoms on
housing.
4. Install snap ring into groove.
Installation
1. Insert bearing carrier on drive shaft.
2. Align bottom of carrier housing and lower control arm.
Grease and slide lower control arm bushings into place,
securing corner housing.
3. Install and torque both lower control arm bolts.
CAUTION
Use an arbor press only on the outer race
to avoid bearing damage.
= T
Upper Control Arm Bolt Torque:
35 ft. lbs. (48 Nm)
