7.21
FINAL DRIVE
7
FRONT GEARCASE - ACTIVE DESCENT CONTROL (DELUXE MODELS)

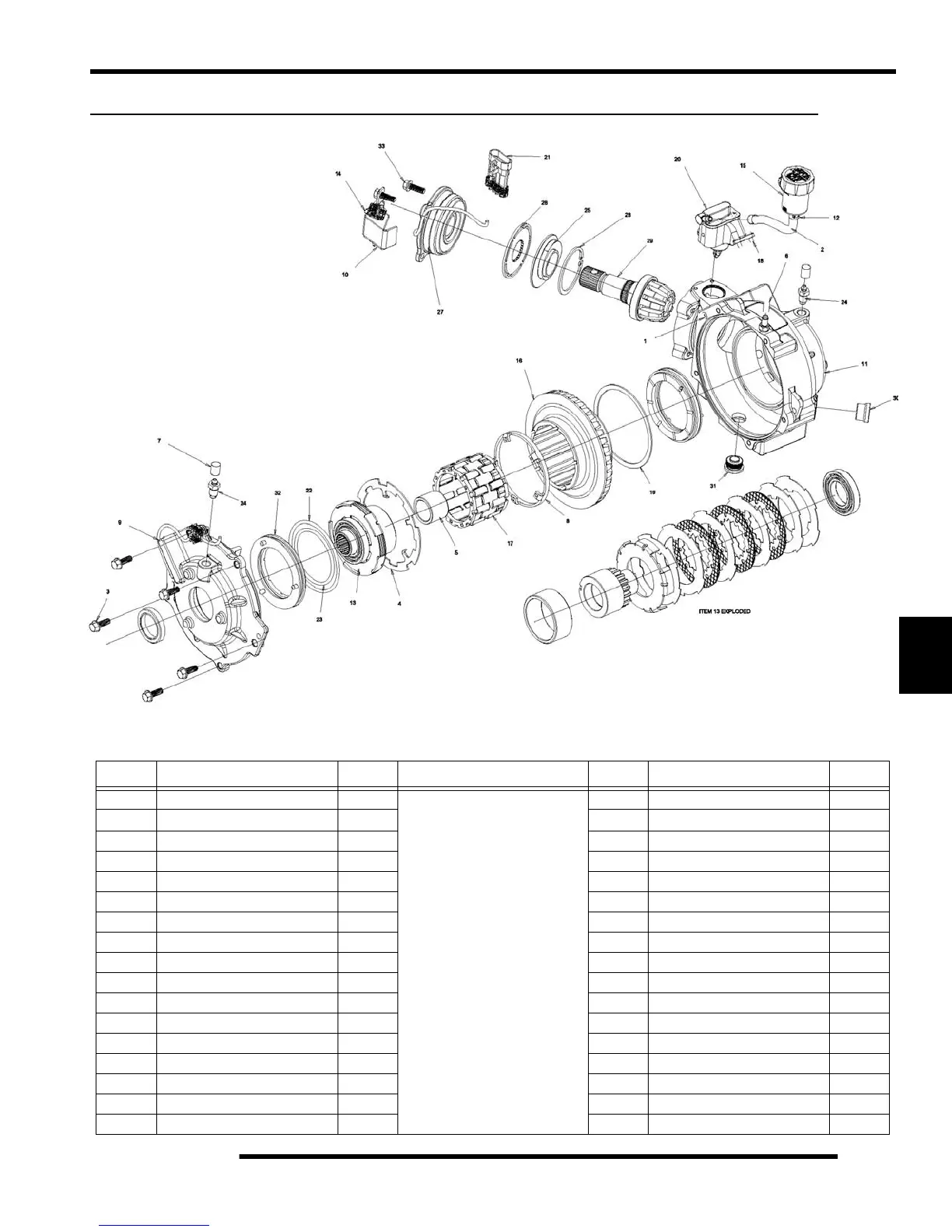

ADC Gearcase Exploded View (Deluxe Models)
Ref. # Description Qty Ref. # Description Qty
1 O-ring 2 17 Roll Cage Assembly 1
2
1/4
" Tubing
118
8-32 x 3/8" Screws
4
3 1/4-20 Screws 5 19 Spacer, Gear 1
4 Armature Plate 1 20 Pump Assembly 1
5 Bushing 1 21 Wire Connector 1
6 Vent 1 22 O-ring, Outer 2
7 Cap, Bleed Screw 2 23 O-ring, Inner 2
8 Spacer, Clutch Basket 1 24 Bleeder Valve 2
9 Cover Assembly 1 25 Cam Assembly 1
10 Cover Bracket 1 26 Armature Plate 1
11 Gear Case Sub-Assembly 1 27 Pinion Cover Assembly 1
12 Hose Clamp 2 28 Retaining Ring 1
13 Hub Sub-Assembly 2 29 Pinion Gear Assembly 1
14 Plastic Clip 2 30 Fill Plug 1
15 Reservoir 1 31 Drain Plug 1
16 Ring Gear 1 32 Piston Assembly 2
33 1/4-20 Screws 3
