BRAKES
9

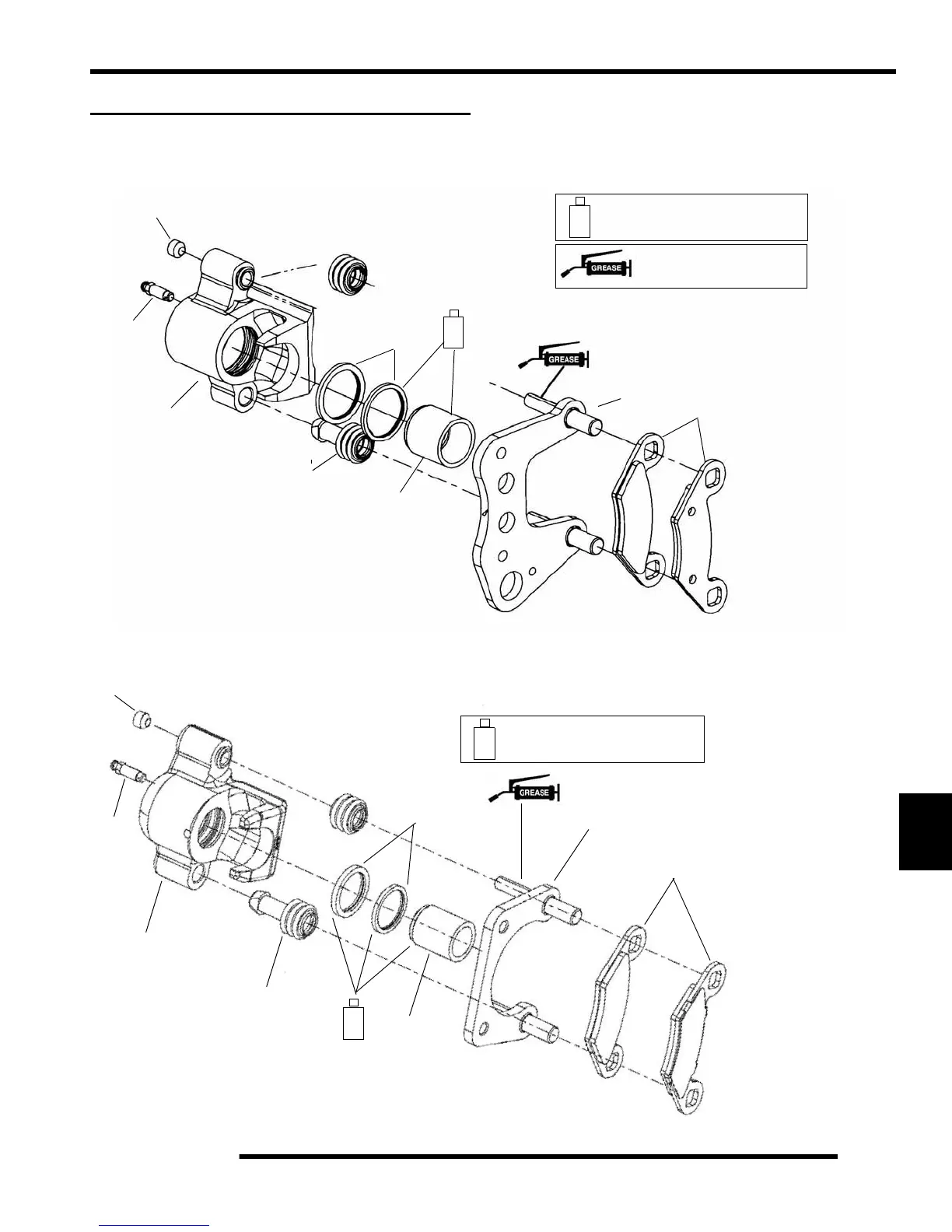

BRAKE CALIPER EXPLODED VIEWS
Sportsman and X2 Front Caliper Assembly
X2 Rear Caliper Assembly
A. Socket Set Screw
B. Bleeder Screw
C. Caliper Asm.
D. Boot
E. Square O-rings
F. Piston
G. Caliper Mount
H. Brake PAds
A
B
C
D
E
F
G
H
Apply Polaris All
Purpose Grease
3
3
Apply Polaris DOT approved
Brake Fluid to Component
A. Socket Set Screw
B. Bleeder Screw
C.Caliper Asm
D. Boot
E. Caliper Seals
F. Piston
G. Caliper Mount
H. Brake Pads
A
B
C
D
E
F
G
H
Apply Polaris DOT-approved
Brake Fluid to Component
3
3
