10.30
ELECTRICAL

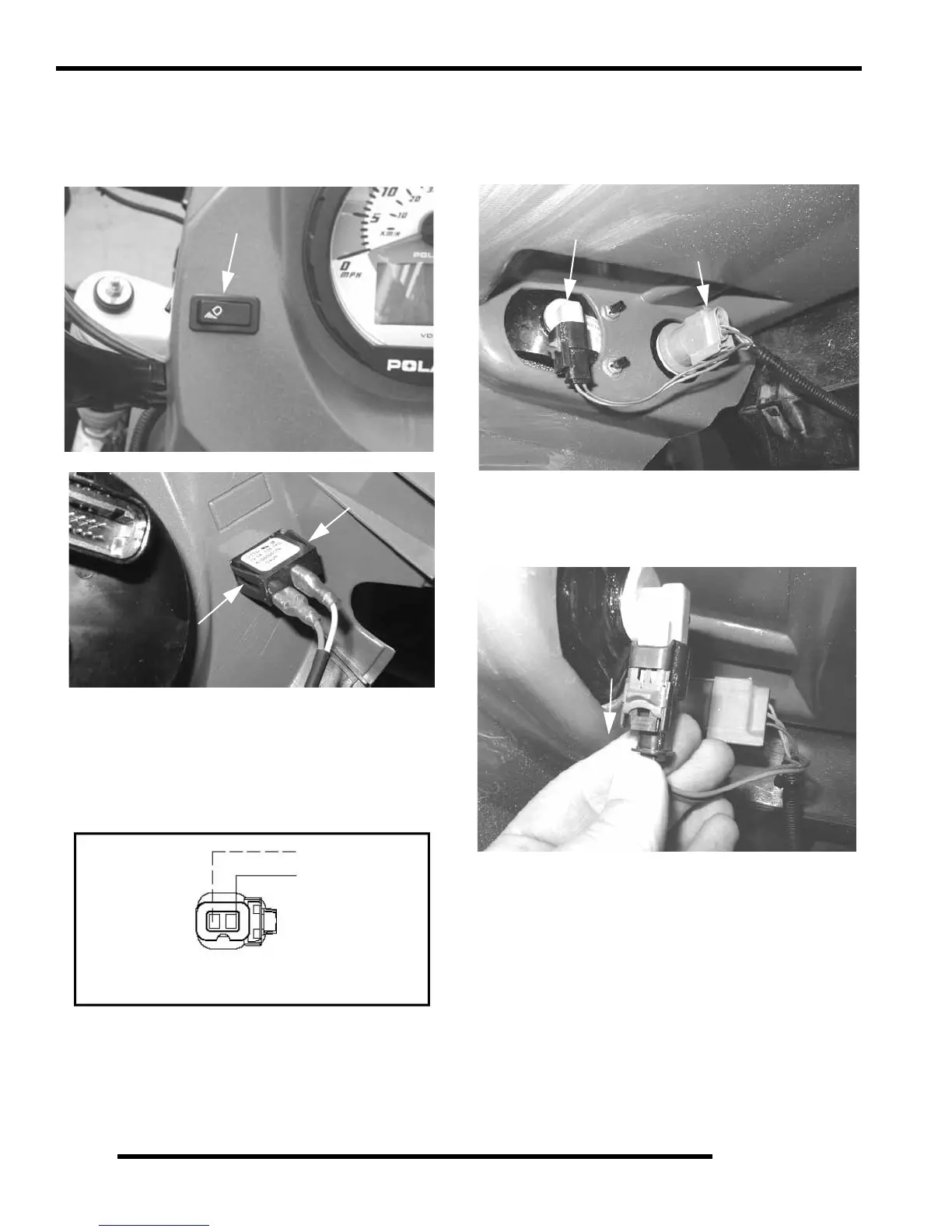

Sportsman Work Light Switch (Deluxe)
Remove the headlight pod cover to locate the switch wires. The
switch snaps out by pushing in on the tabs on both sides of the
switch.
• Check for continuity between the switch contacts -
Place meter leads between two contacts with switch in
‘ON’ position.
• Probe the worklight plug wires at back of vehicle, there
should be at least 12Vdc at the plug.
• Check for 12 Vdc at the blue wire.
Sportsman Brake Light / Work Light (Deluxe)
Replacement
The brake light (A) and the work light (B) are both located in the
rear tail lamp housing.
1. To remove the worklight electrical connector (B), pull
down on the connector lock and pull the connector from
the bulb assembly.
A
Squeeze Tabs - Push To
Remove
Brown
Blue
Worklight Connector Wires
B
A
B
To Next Page
