3.33
ENGINE
3

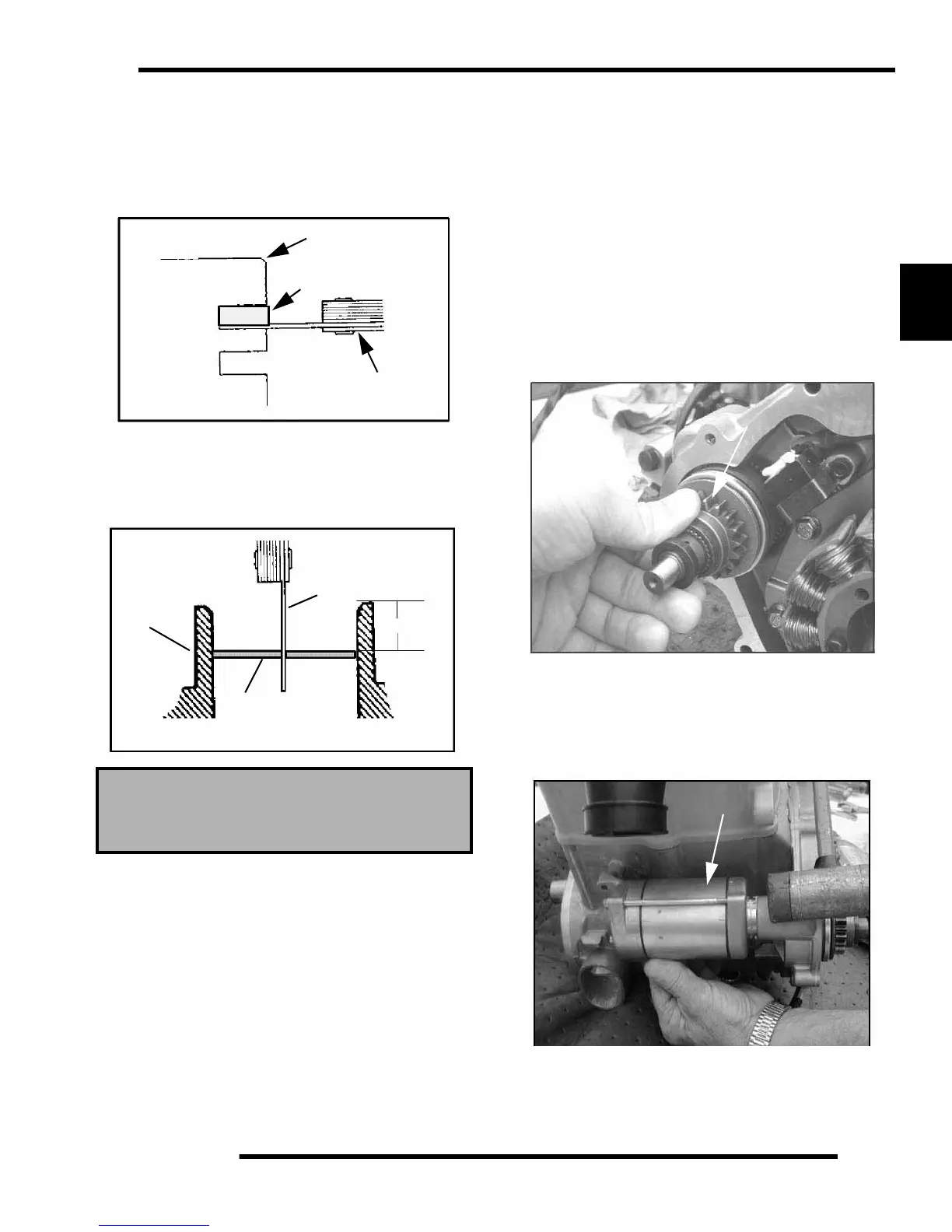

4. Measure piston ring to groove clearance by placing the ring
in the ring land and measuring with a thickness gauge.
Replace piston and rings if ring-to-groove clearance
exceeds service limits.
See “700/800 EFI Engine Service Specifications” on page 3.11
Piston Ring Installed Gap
1. Place each piston ring (A) inside cylinder (B) using piston
to push ring squarely into place as shown. (See next page)
NOTE: Ring should be installed with the mark facing
upward.
2. Measure installed gap with a feeler gauge (C) at both the
top and bottom of the cylinder. REMINDER: A difference
in end gap indicates cylinder taper. The cylinder should be
measured for excessive taper and out of round.
3. If the bottom installed gap measurement exceeds the
service limit, replace the rings. If ring gap is smaller than
the specified limit, file ring ends until gap is within
specified range.
NOTE: Always check piston ring installed gap after
re-boring a cylinder or when installing new rings. A
re-bored cylinder should always be scrubbed
thoroughly with hot soapy water, rinsed, and dried
completely. Wipe cylinder bore with oil immediately
to remove residue and prevent rust.
Starter Drive/Bendix Removal Inspection
1. Remove stator housing bolts and remove housing.
2. Remove the flywheel nut and washer. Install Flywheel
Puller (PN 2871043) and remove flywheel.
NOTE: Do not thread the puller bolts into the
flywheel more than 1/4, or stator coils may be
damaged.
3. Remove starter bendix assembly (A). Note the thrust
washers located on both sides of the bendix.
4. Inspect the thrust washer for wear or damage and replace
if necessary.
5. After the bendix is removed, tap on the starter assembly
with a soft faced mallet to loosen the starter from the
crankcase.
Piston Ring Installed Gap
See “700/800 EFI Engine Service
Specifications” on page 3.11
Piston
Ring
Feeler Gauge
A
B
C
25-50 mm
B
B
B
To Next Page
