4.2
FUEL INJECTION
GENERAL INFORMATION
Special Tools
IMPORTANT: The EFI fuel system remains under high
pressure, even when the engine is not running.
Before attempting to service any part of the fuel
system, the pressure must be relieved. The pressure
adapter has an integrated relief valve. Connect to the
test valve and release the pressure.
Polaris EFI Diagnostic Software (Digital Wrench) - PU-
47063
This dealer-only software installs on laptop computers equipped
with a CD drive and serial port connection, and is designed to
replace multiple shop tools often used to test EFI components.
It also includes step-by-step diagnostic procedures to aid
technician repair and troubleshooting.
Throttle Position Sensor Tester - PU-47082
This tester allows the use of a digital multi-meter to test TPS
function as well perform initialization procedures.
Throttle Body Adjustment Screwdriver - PU-47315
This tool has a special ‘D’ shaped end for adjusting the throttle
stop screw during a TPS initialization procedure.
WARNING
* Gasoline is extremely flammable and explosive
under certain conditions.
* EFI components are under high pressure. Verify
system pressure has been relieved before
disassembly.
* Never drain the fuel system when the engine is hot.
Severe burns may result .
* Do not overfill the tank. The tank is at full capacity
when the fuel reaches the bottom of the filler neck.
Leave room for expansion of fuel.
* Never start the engine or let it run in an enclosed
area. Gasoline powered engine exhaust fumes are
poisonous and can cause loss of consciousness and
death in a short time.
* Do not smoke or allow open flames or sparks in or
near the area where refueling is performed or where
gasoline is stored.
* If you get gasoline in your eyes or if you should
swallow gasoline, seek medical attention immediately.
* If you spill gasoline on your skin or clothing,
immediately wash with soap and water and change
clothing.
* Always stop the engine and refuel outdoors or in a
well ventilated area.
Table 4-1:
PART NUMBER TOOL DESCRIPTION
PU-47063
Polaris EFI Diagnostic
Software (Digital
Wrench
)
PU-43506
Fuel Pressure
Test Kit
2201519
Throttle Position Sensor
Tester
PU-47315
Throttle Body
Adjustment Screwdriver
(small “D” shape)

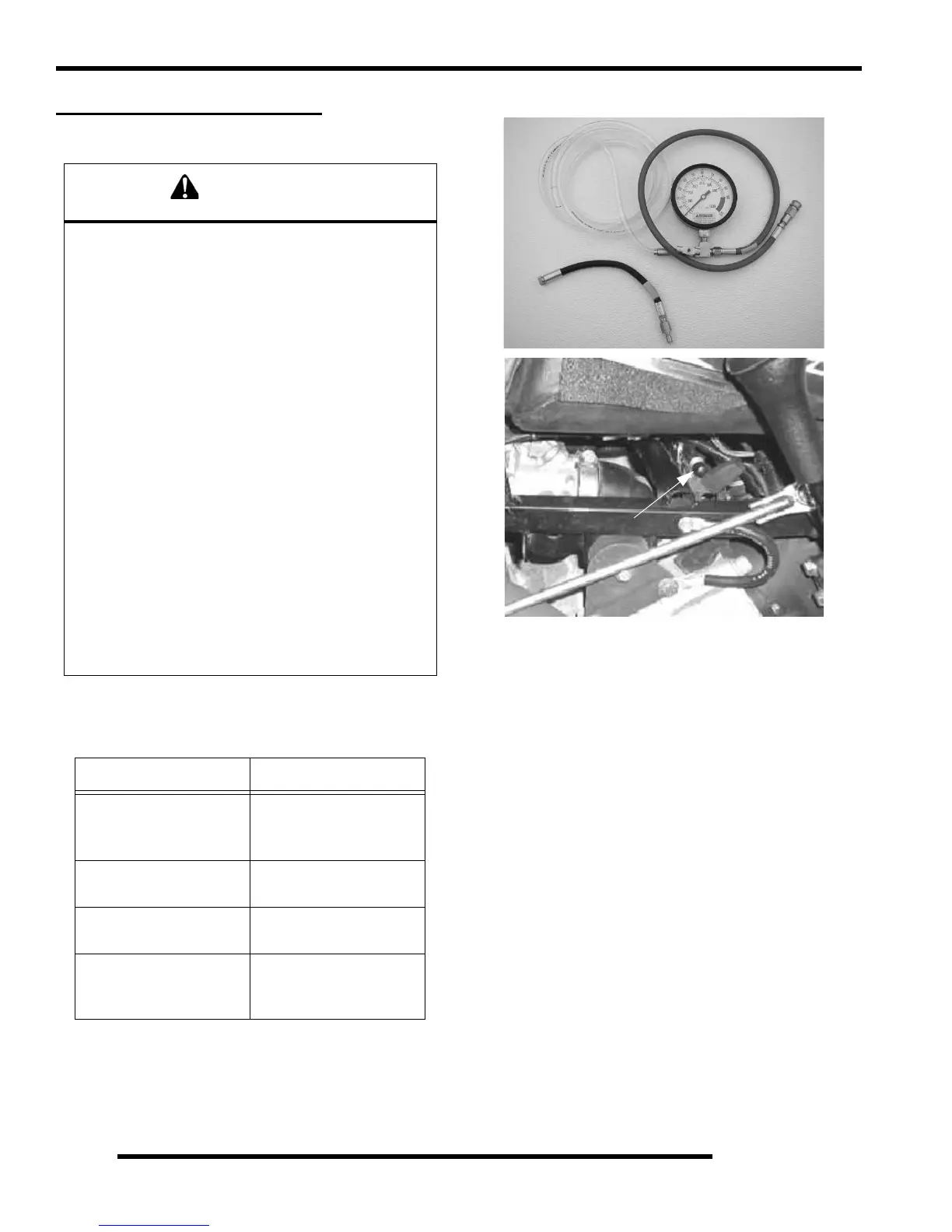

Fuel Pressure Tester -
PU-43506
Test Valve
