Polaris 2007 SPORTSMAN X2 800 - Foot Well Removal; Installation; X2 Foot Well Removal; Installation

5.5
BODY / STEERING / SUSPENSION
5

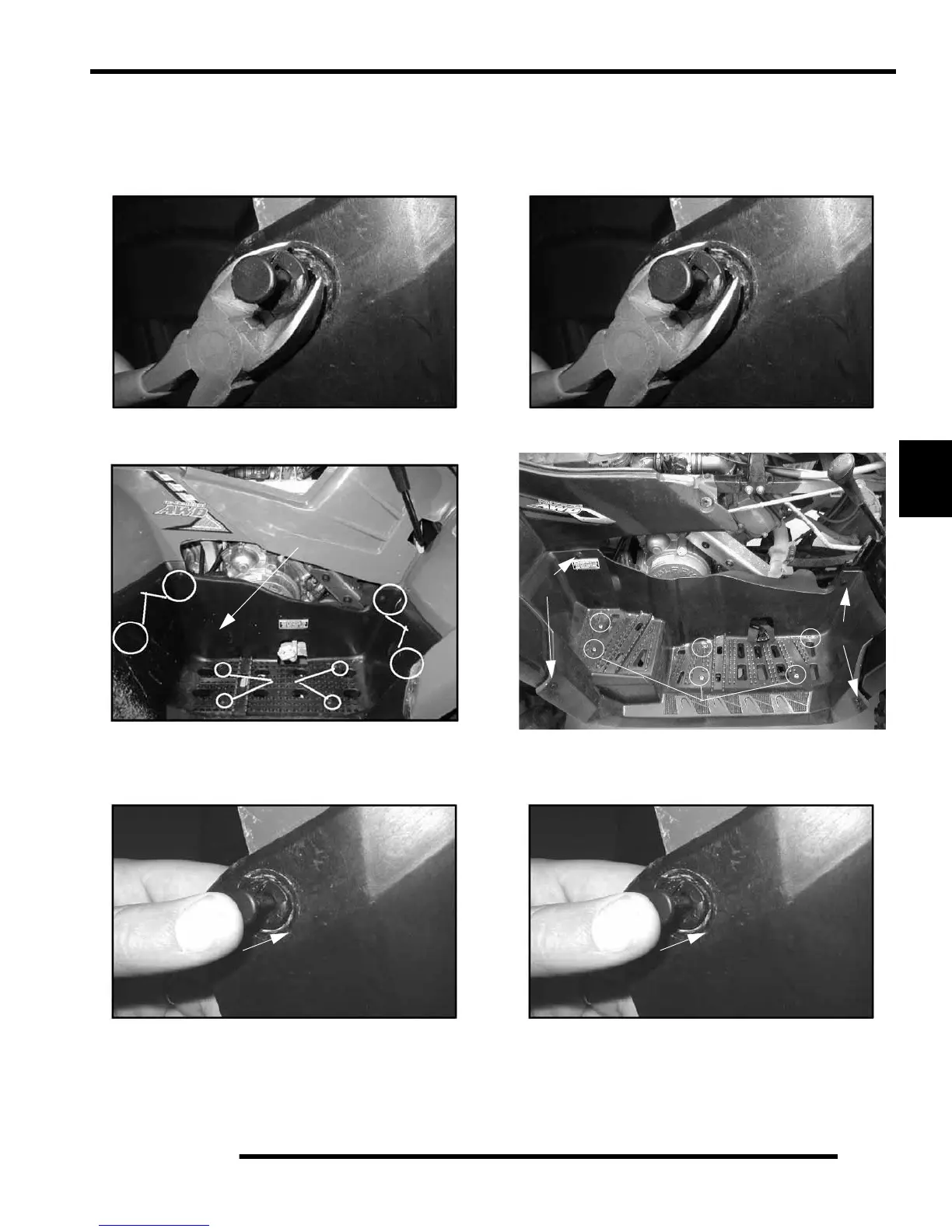

Foot Well Removal / Installation
1. Remove the four plastic inserts (A) that secure the wheel
well to the front and rear cabs. (See “PLASTIC INSERT
REMOVAL / INSTALLATION” for help).
2. Remove the four screws (B) from the bottom of the foot
well. Remove the footwell.
3. Reverse the removal procedures to install the foot well. Be
sure to properly align the cab ends into the foot wells upon
reassembly.
X2 Foot Well Removal / Installation
1. Remove the four plastic inserts (A) that secure the wheel
well to the front and rear cabs. (See “PLASTIC INSERT
REMOVAL / INSTALLATION” for help).
2. Remove the six screws (B) from the bottom of the foot well.
Remove the footwell.
3. Reverse the removal procedures to install the foot well. Be
sure to properly align the cab ends into the foot wells upon
reassembly.
A
B
A
18 in.lbs. (
A
B
A
