Polaris 2007 SPORTSMAN X2 800 - 800 Efi International Steering Post and Lock Assembly; Steering Assembly Exploded View

11.4
800 EFI INTERNATIONAL
800 EFI INTERNATIONAL STEERING POST AND LOCK ASSEMBLY

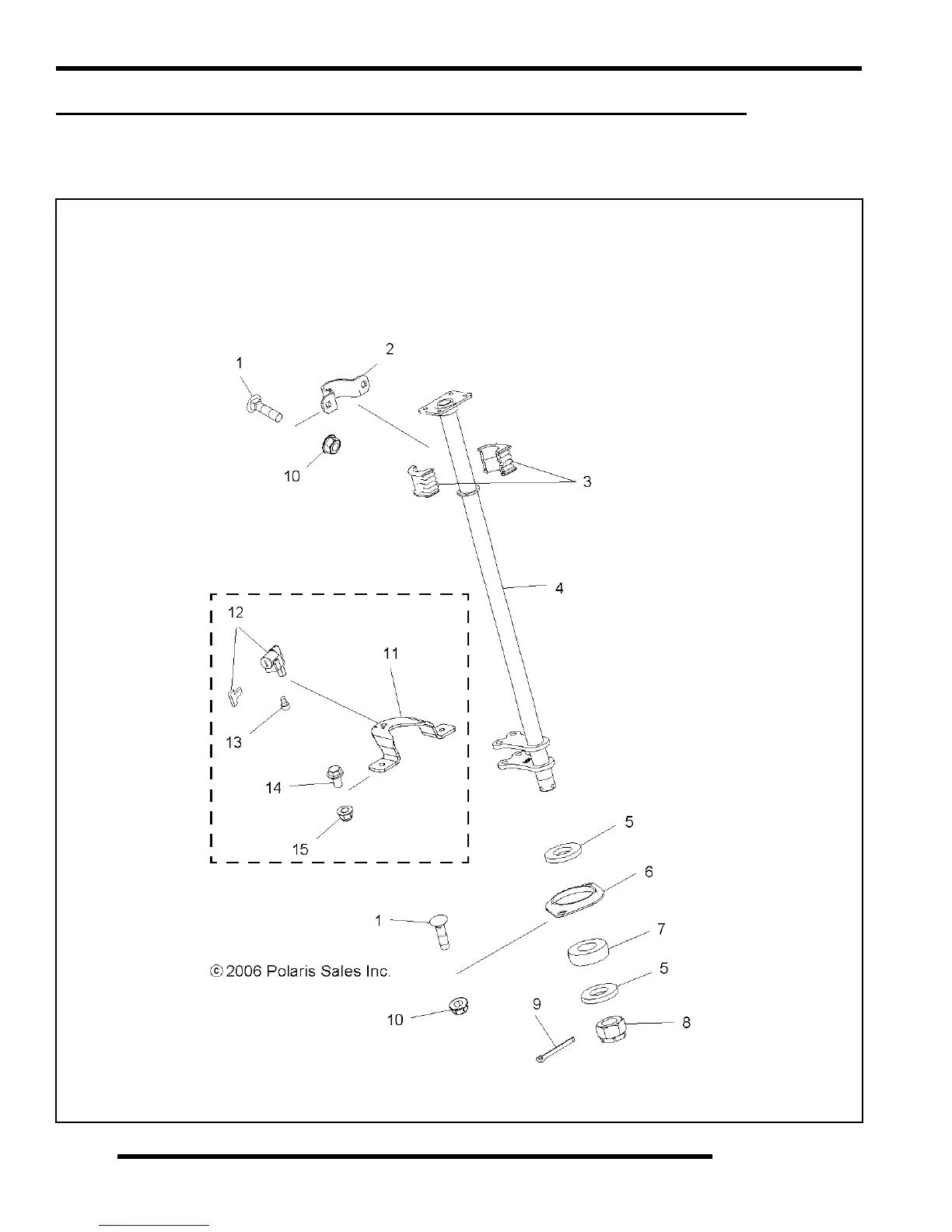

Steering Assembly Exploded View
The 800 EFI International Sportsman is equipped with a locking mechanism to prevent theft or unauthorized use. Steering post
removal may be required for lock service or repair.
Lock System Item Number / Description:
11. Lock Collar
12. Lock Set
13. Bolt, Lock Set
14. Bolt(s), Lock Collar
15. Nut(s), Lock Collar
