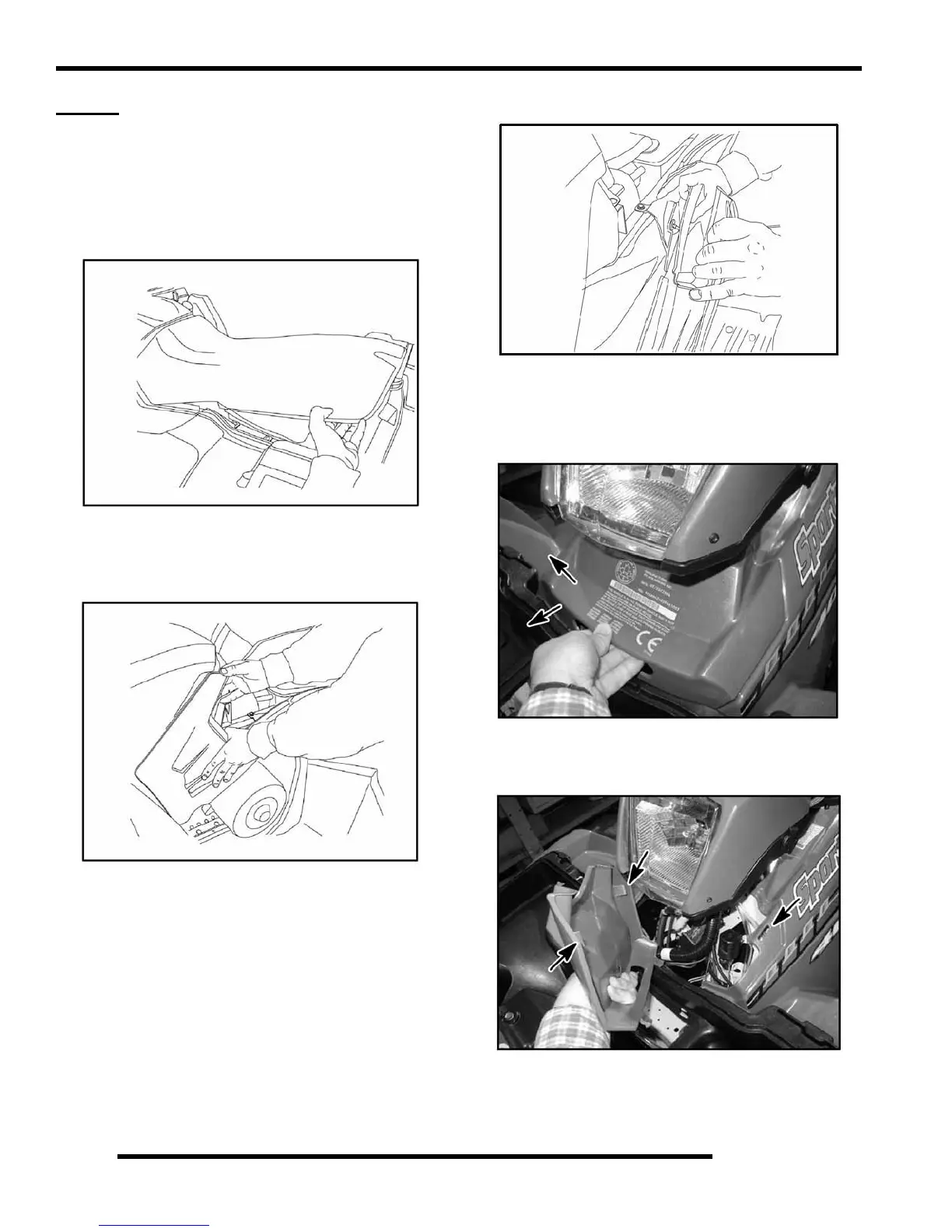

Side Panel Removal
Side panel removal is quick and easy, use the following
instructions for removal and installation.
1. Remove seat by releasing the latch and lifting up on the
seat.
2. Grasp the rear of the side panel near the rear cab. With a
firm motion, pull the panel outward to disengage the side
panel from the grommet. Pull the panel downward and
rearward to remove it from the ATV.
3. Reinstall the side panel by reversing the removal procedure.
Front Cover Removal / Installation
1. Open the front storage compartment
2. Pull up and outward on the front cover to remove the cover.
3. To install the front cover, insert the tabs of the front cover
into the inserts of the cab. Make sure the tabs are aligned
with the slots. Then press the rear tabs into the slots.
Step 1
Step 2
Step 3
