Polaris 2007 SPORTSMAN X2 800 - Rear Master Cylinder; X2 Exploded View

9.26
BRAKES

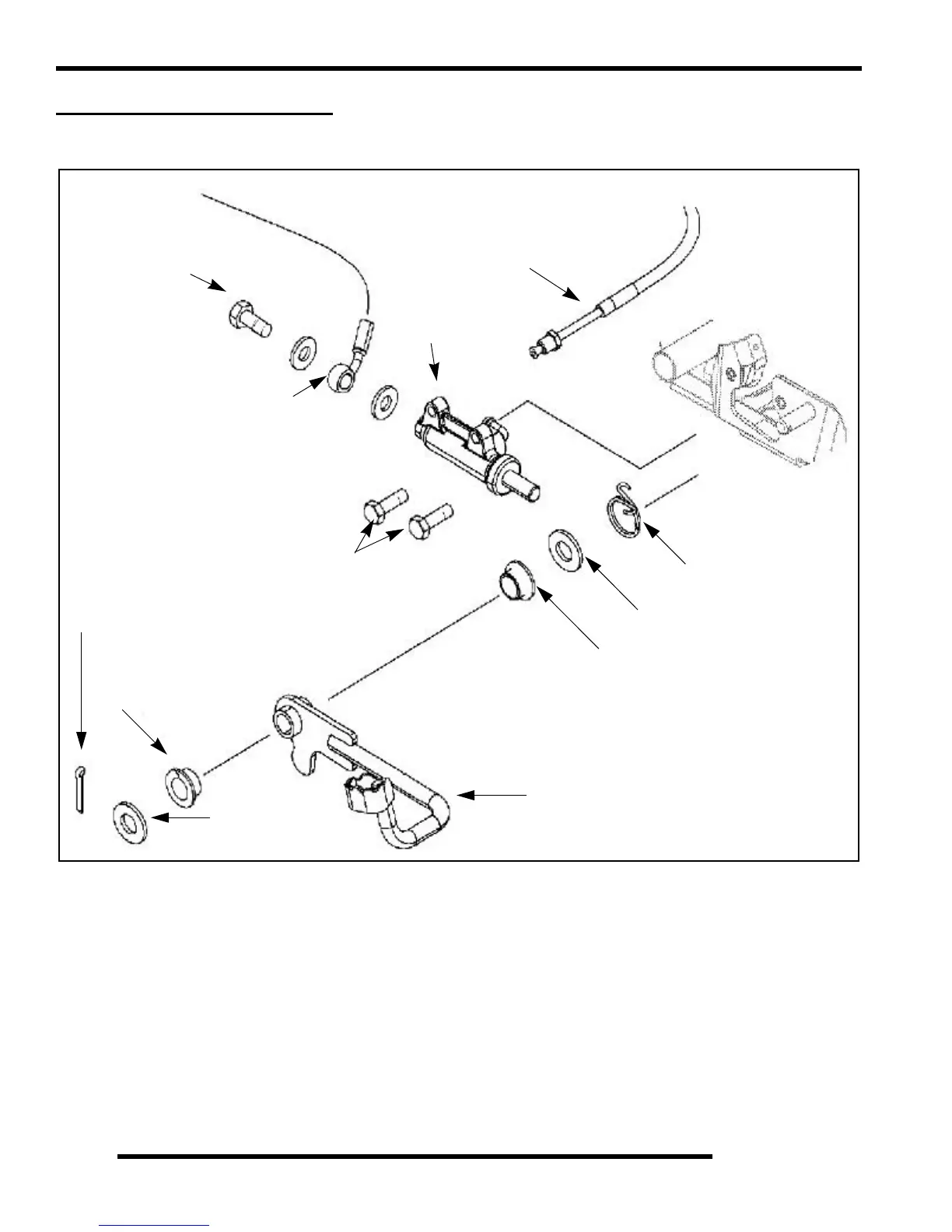

REAR MASTER CYLINDER
X2 Exploded View
A
B
D
E
F
G
I
H
C
D
E
J
A. Master Cylinder Bolts
B. Rear Brake Line
C. Rear Master Cylinder
D. Bushing(s)
E. Washer(s)
F. Cotter Pin
G. Foo t Pedal
H. Spring
I. Front Brake Line
J. Banjo Fitting
