5.10
BODY / STEERING / SUSPENSION

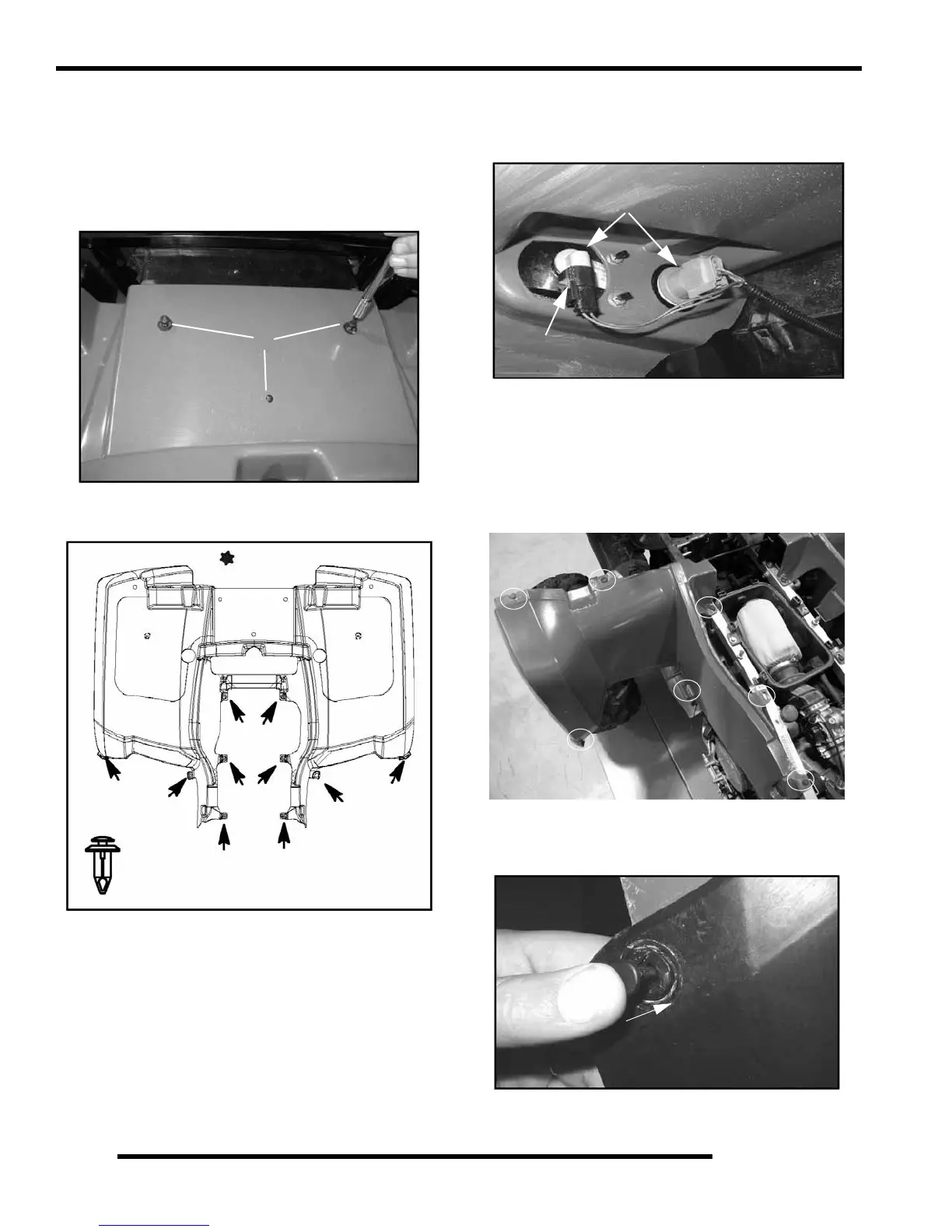

Sportsman Rear Cab / Fender Removal /
Installation
1. Follow the “REAR RACK REMOVAL” procedure to
remove the rear rack.
2. Remove the three screws (A) (T-25) that secure the rear cab
to the storage container.
3. Remove the ten plastic inserts that secure the rear cab to the
frame and plastic.
4. Disconnect the rear lights by pulling the locks on each side
and removing the connectors. Lift the rear cab from the
frame.
5. Reverse the removal steps for installation.
X2 Rear Quarter Panel Removal / Installation
1. Remove the seat.
2. Remove the plastic inserts (circled) that secure the quarter
panel to the rear footwell. (See “PLASTIC INSERT
REMOVAL / INSTALLATION” for information).
3. Reverse the removal procedures to install the quarter
panels. Verify panels are properly aligned to the footwell
end upon reassembly.
A
T-25 - 6 in.lbs.
Remove plastic dart inserts.
Remove Connectors
Lock
To Next Page
