BODY / STEERING / SUSPENSION
5.11
G Apply grease to extension cap and
threads of puller bolt to ease
removal.
G Thread bolt (D) with nut (C) onto ball
joint stud as shown.
G Hold bolt (D) and turn nut (C)
clockwise until ball joint is removed
from strut housing.

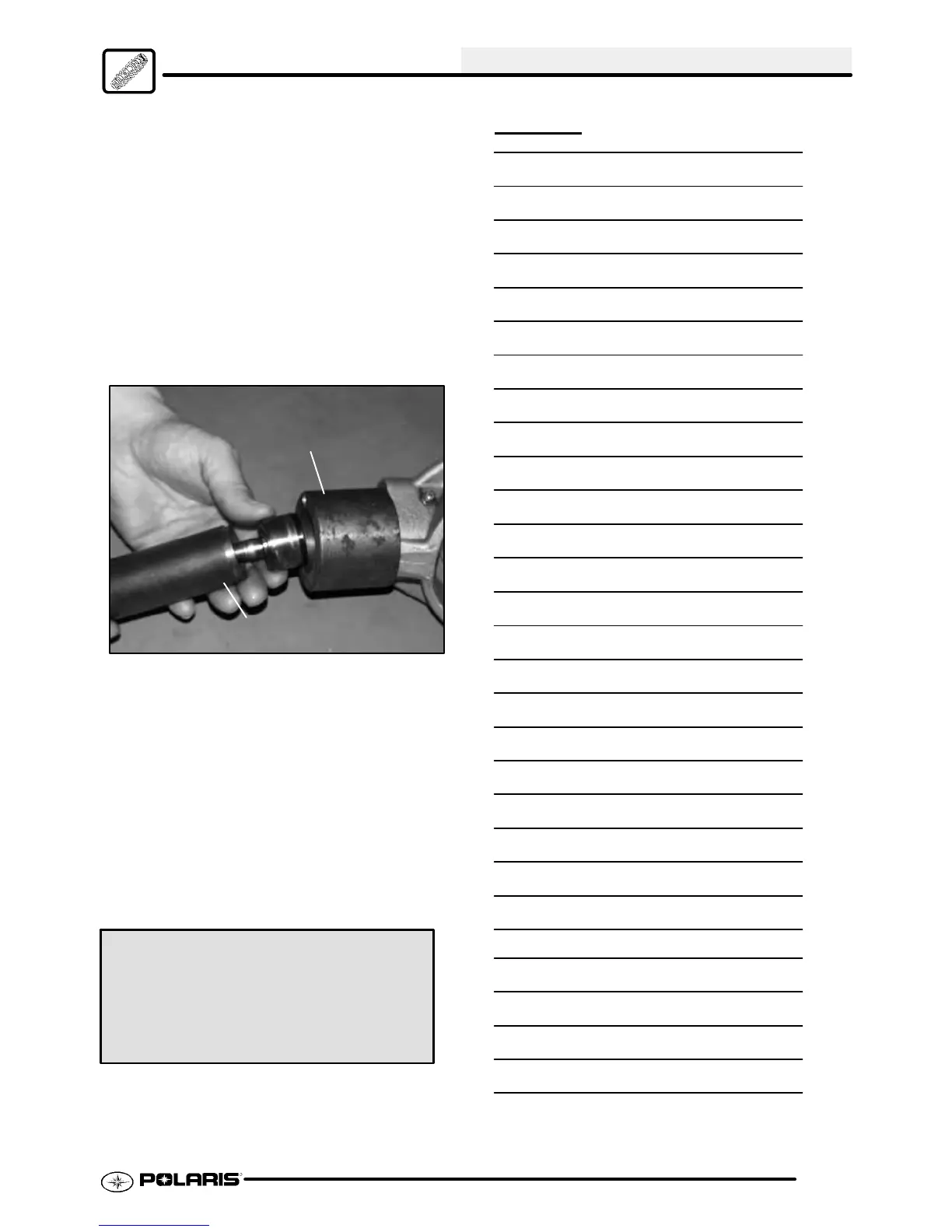

8. To install new ball joint:
G Remove extension cap and attach
puller guide using short bolts
provided in the kit.
G Insertnewballjoint(E)intodriver(F).
F
E
G Slide ball joint/driver assembly into
guide.
G Drivenewjoint intostrut housinguntil
fully seated.
9. Apply Loctitet 242 (PN 2871949) to threads of
retaining plate screws or install new screws with
pre-applied locking agent. Torque screws to 8 ft.
lbs. (11 Nm).
10. Install A-arm on ball joint and torque castle nut to
25 ft. lbs. (35 Nm).
11. Reinstall cotter pin with open ends toward rear of
machine.
SAFETY REMINDER:
Remember to use safety glasses and
other protective equipment when
performing these procedures
NOTES
