TRANSMISSION
8.5

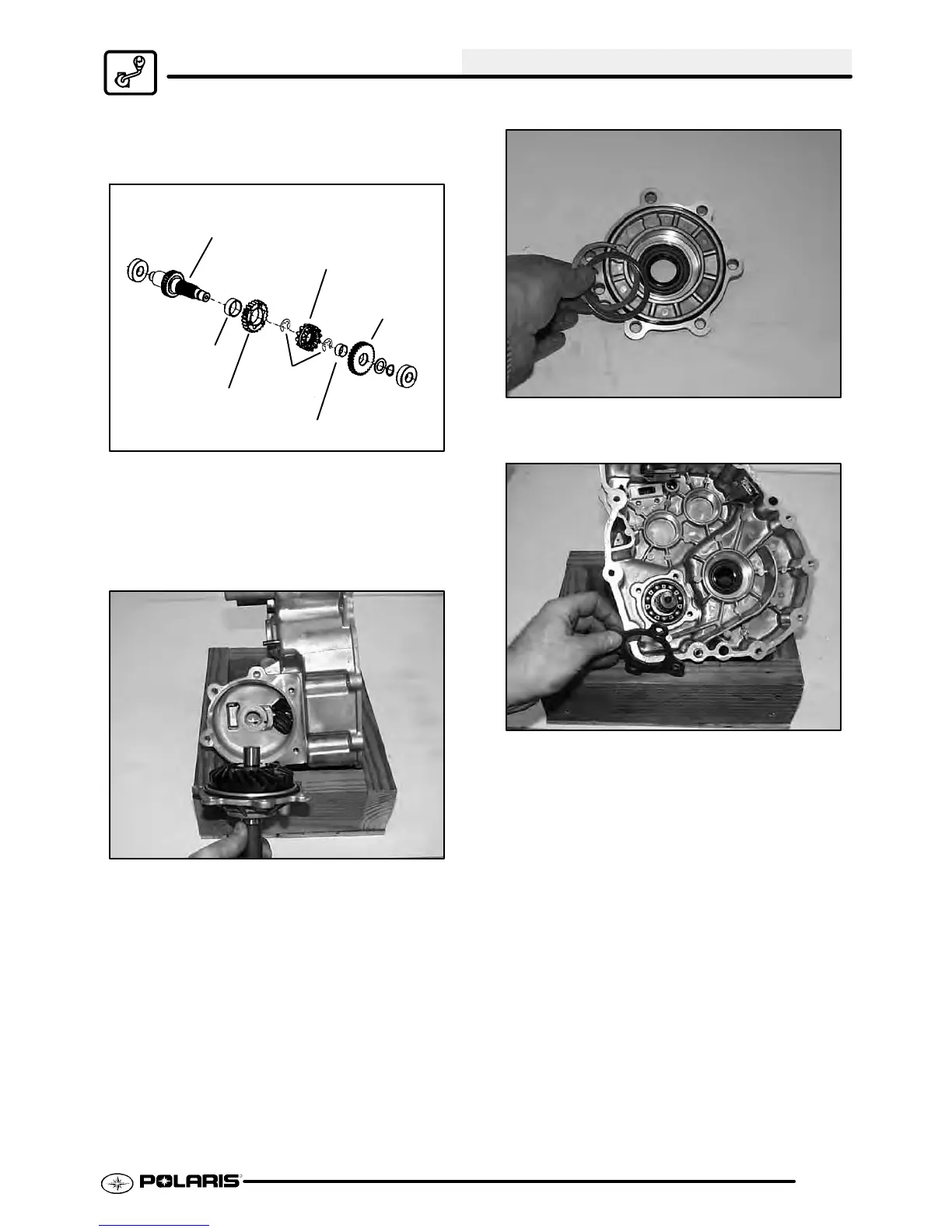

12. Inspect reverse shaft gear, sprocket, needle
bearings and engagement dog for wear or
damage. Replace if necessary.
Reverse Shaft
Needle Bearing
Sprocket
Engagement Dog
Needle Bearing
Gear
E--Rings
Reverse Shaft Assembly
NOTE: Gear cogs face toward engagement dog.
13. Inspect input shaft, gear, and bearing. Replace if
necessary.
14. Remove front output shaft cover and ring gear
assembly.
15. Remove ring gear and bearing from output shaft
bystandingassemblyonsplineendandlightlytap
on housing.
16. Check number and orientation of shims from
bearing cavity. Inspect O-ring. Replace if
necessary.
17. Remove front drive input shaft bearing retainer
plate.
18. Remove pinion shaft assembly. Inspect gear for
wear. Replace if necessary.
