8.16
TRANSMISSION

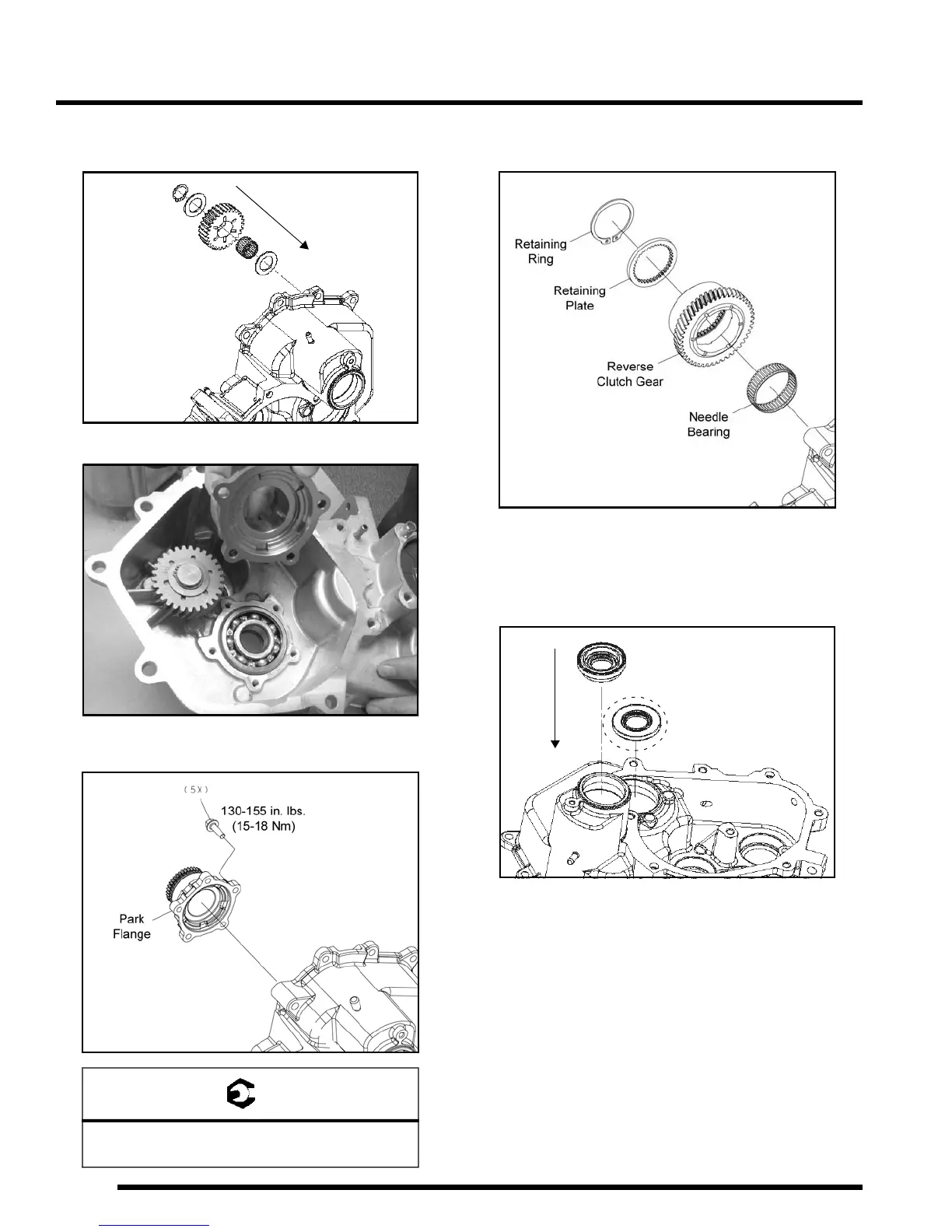

14. Install the reverse idler lower washer, needle bearing, gear,
upper washer and retaining ring onto the idler shaft.
15. Install a new shaft bearing (if required).
16. Install the park flange and torque the (5) screws to
specification.
17. Install the reverse clutch assembly onto the park flange.
Note the orientation of the needle bearing.
18. Install the retaining plate and a new retaining ring.
19. Install the input shaft seal and verify it is fully seated. Install
the intermediate shaft seal (circled) flush or slightly below
the case. Apply lubricant to both seal lips.
= T
Park Flange Screws:
130-155 in. lbs. (15-18 Nm)
