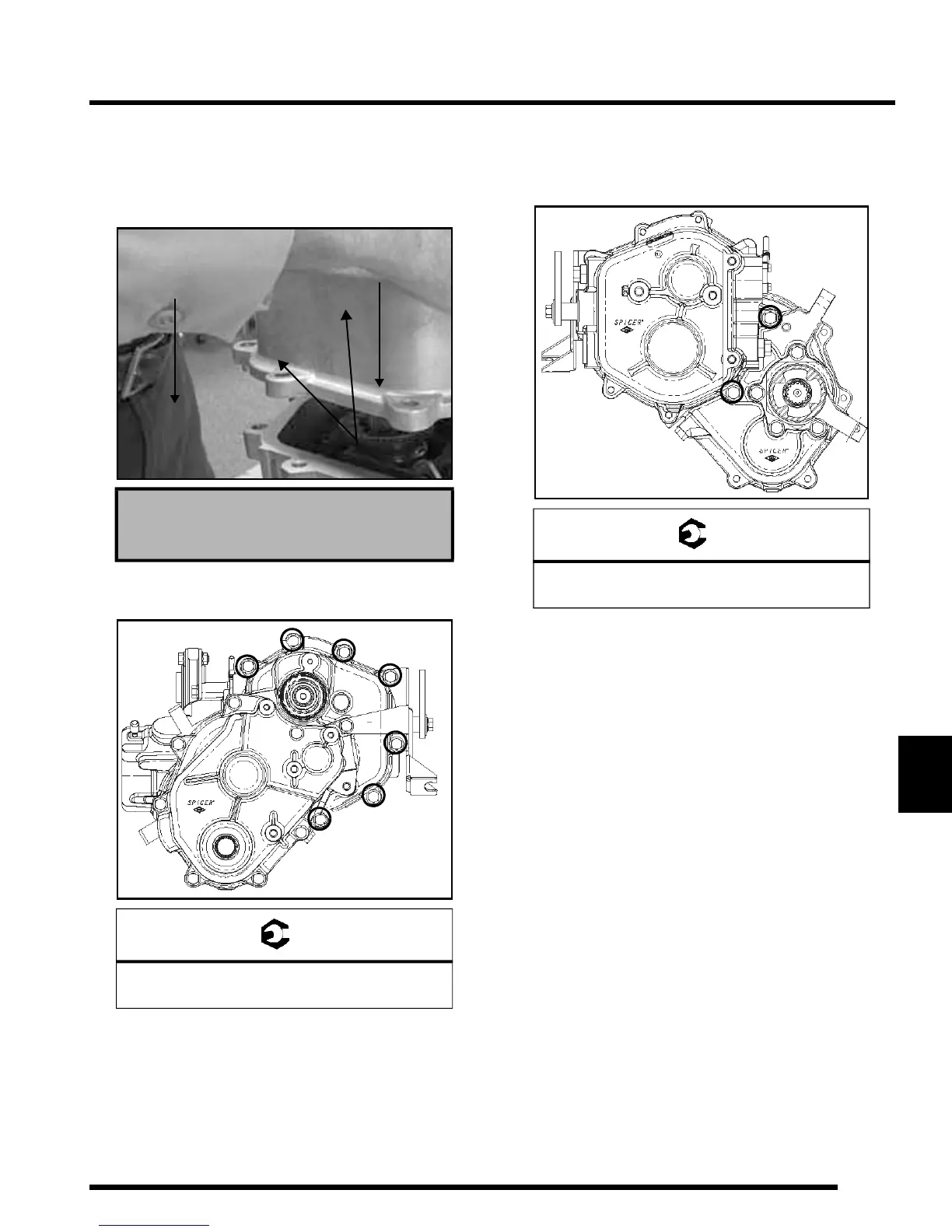

20. Place the transmission shift housing onto a flat surface as
shown. Apply a bead of crankcase sealant onto the mating
surfaces. Align the dowels and install the transmission case
half onto the shift housing while rotating the input shaft,
using care not to damage the seal surfaces.
21. Install the shift cable bracket (7) shift housing case screws
to the front of the transmission. Torque to specification.
22. Install the (2) shift housing case screws to the backside as
shown. Torque to specification.
NOTE: Shift cable bracket installation is required.
23. Proceed with transfer case reassembly.
See “Transfer Case Reassembly” on page 8.7
Apply Sealant PN 2871557
to Case Mating Surfaces
= T
Shift Housing Screws:
23-27 ft. lbs. (31-37 Nm)
2871557
= T
Shift Housing Screws:
23-27 ft. lbs. (31-37 Nm)
