Polaroid ProCam Repair Manual

3 - 40

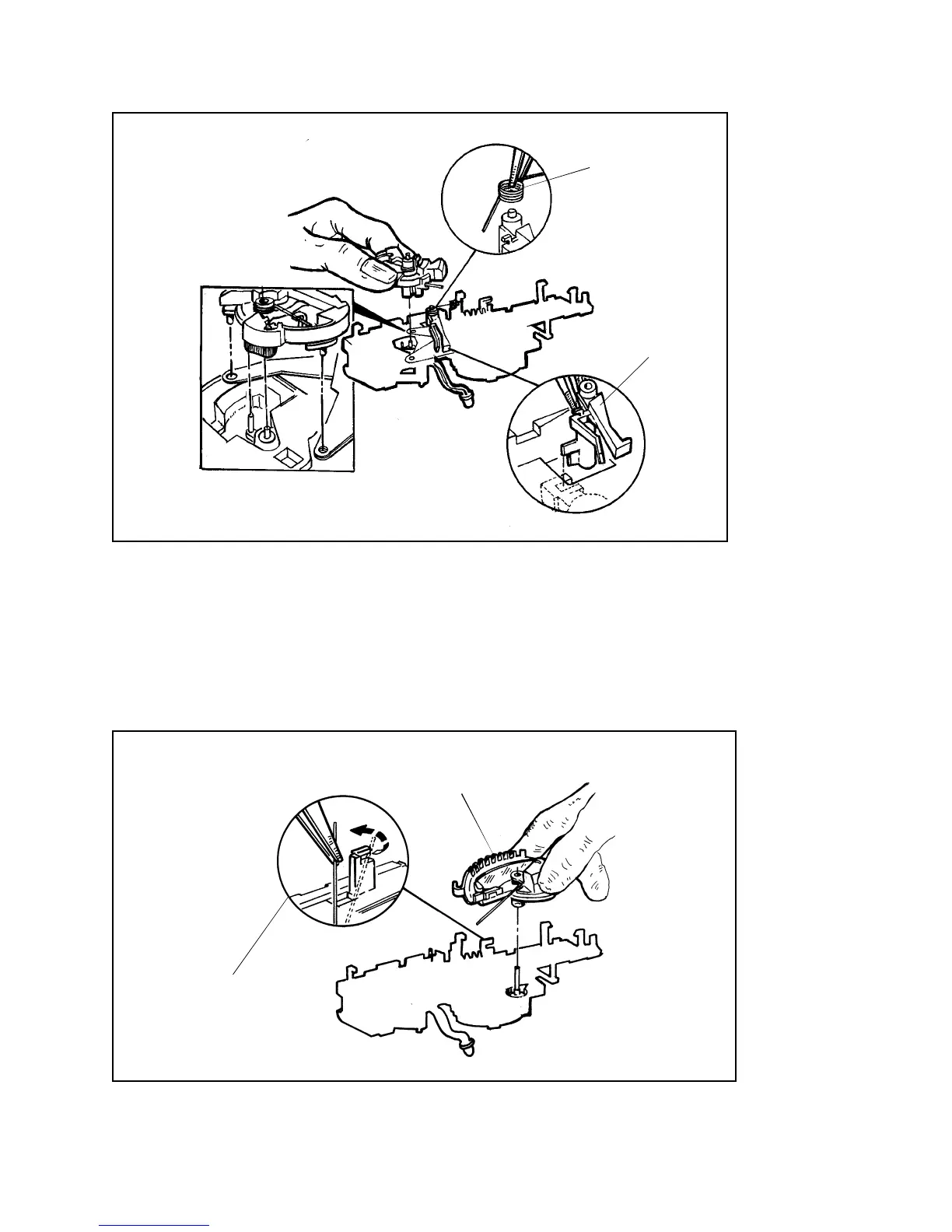

Figure 3-39. Removing Catch Pawl and Spring, and
Walking Beam/Inertia/Kick Spring Assembly
h. Unhook the upper leg of the Quintic Return Spring (Figure 3-40).
i. Remove (and disassemble, if necessary) the Quintic Moving Lens
Assembly (wear lintless cotton gloves or finger cots) (Figure 3-40).
Figure 3-40. Removal and Disassembly of Quintic Moving Lens Assembly
QUINTIC MOVING
LENS ASSEMBLY
QUINTIC RETURN
SPRING
WALKING BEAM/
INERTIA/KICK SPRING
ASSEMBLY
CATCH PAWL
SPRING
CATCH PAWL
