3 - 9
e. Remove Mid Cover but leave Bottom Cover in place (Figure 3-4).
Lift back of Mid Cover first; Push in button marked FILM (Door
Latch) and lift off the Mid Cover.
Caution: AS SOON AS FLASH CAPACITOR TERMINALS
ARE ACCESSIBLE, DISCHARGE BOTH
CAPACITORS WITH DUMP PROBE #13119.
f. If Mid Cover Grip is loose or damaged, peel it off and replace it.

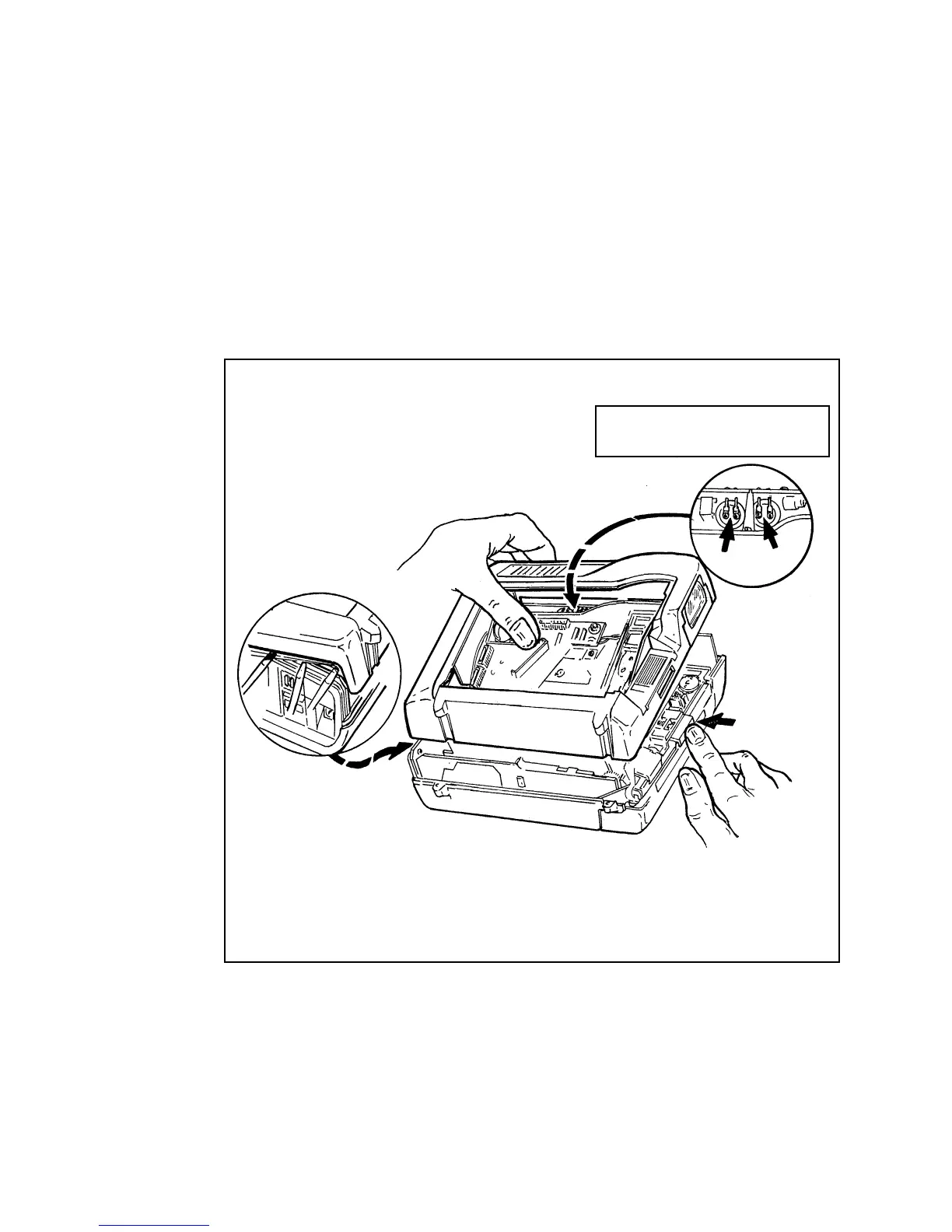

Figure 3-4. Removing Mid Cover (Note Exposed Flash Capacitor Terminals)
2. Replacement
Follow removal steps in reverse order.
FILM
DOOR
LATCH
CAUTION: SHOCK HAZARD
FROM FLASH CAPACITORS
