Polycom SoundPoint IP 335 User Manual

Getting Started with Your SoundPoint IP 335 Phone
1 - 7

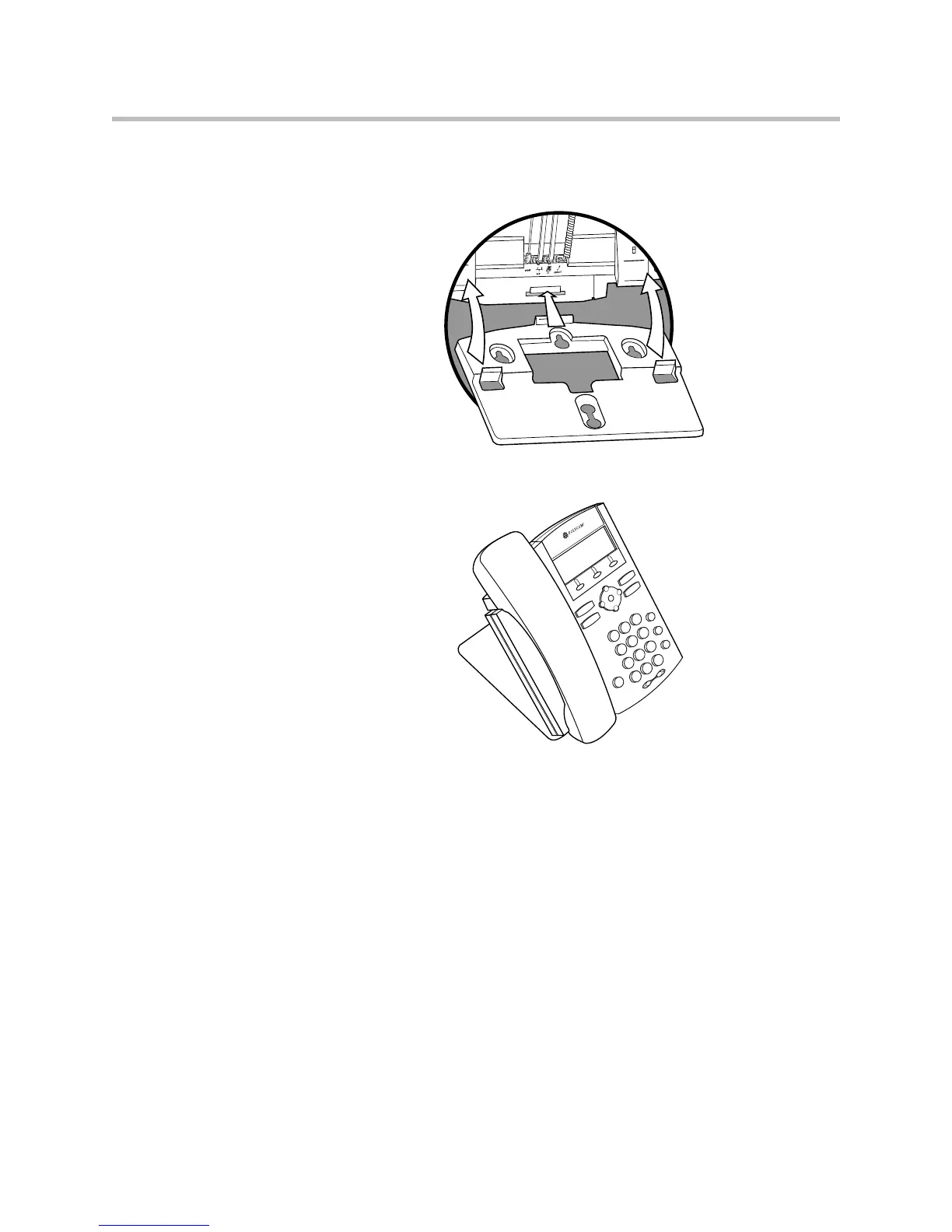

2. Align the protrusions on the bracket with their corresponding holes in the
phone.
3. Snap them together to lock the bracket to the phone.
To attach the base as a wall mount:
1. Place all cords in the recessed area below the modular jacks.

Polycom SoundPoint IP 335 Specifications

Operating Environment

operating temperature	0 to 40°C
operating relative humidity	5% to 95%, non-condensing
storage temperature	-40 to +70°C

Power

power over ethernet	IEEE 802.3af Class2
external AC adapter voltage	24V DC
external AC adapter current	500mA

Weight and Dimensions

phone weight	0.625 kg
unit box dimensions	25 cm x 10.5 cm x 29.5 cm
unit box weight	1.49 kg
size	17 cm x 14.5 cm x 17.5 cm
