Polycom SoundPoint IP 335 User Manual

Getting Started with Your SoundPoint IP 335 Phone
1 - 8

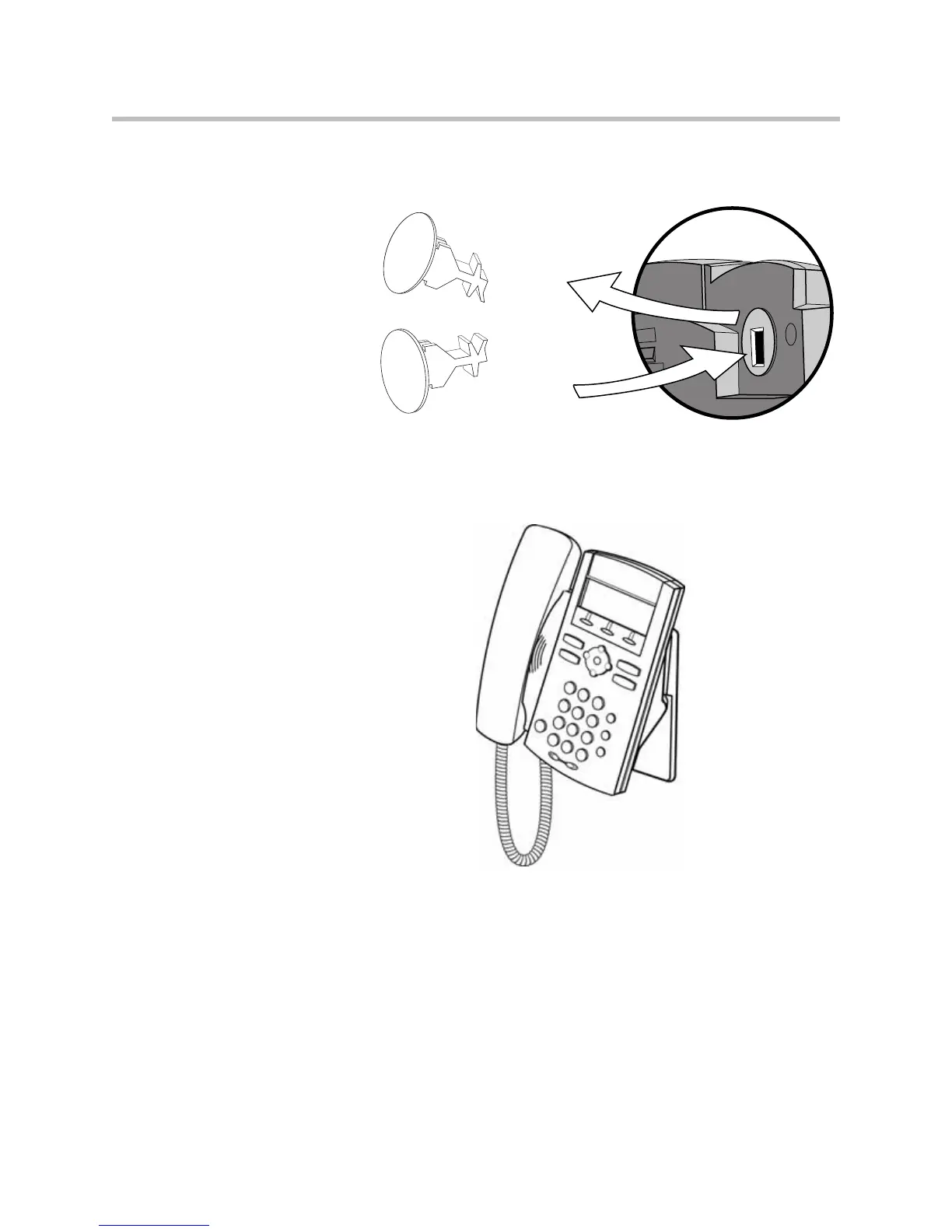

2. On the back of the phone, remove the key located behind the hook switch
and reposition it so that the end tab (at a 45
0
angle) is facing up.
3. Using wall anchors (not included), fasten the base stand with the
mounting tab facing up.
4. Align the base stand tabs with their corresponding insertion points on the
phone, and then snap the phone into place (as shown).

Polycom SoundPoint IP 335 Specifications

Operating Environment

operating temperature	0 to 40°C
operating relative humidity	5% to 95%, non-condensing
storage temperature	-40 to +70°C

Power

power over ethernet	IEEE 802.3af Class2
external AC adapter voltage	24V DC
external AC adapter current	500mA

Weight and Dimensions

phone weight	0.625 kg
unit box dimensions	25 cm x 10.5 cm x 29.5 cm
unit box weight	1.49 kg
size	17 cm x 14.5 cm x 17.5 cm
