A-16
A Optional Accessories
Horizontal test
stand
For mounting the scanning head on the telescope drive horizontally, proceed
as follows:
1. Fix the telescope drive at the measurement location using the 6 screws
and the corresponding washers of the assembly kit.
CAUTION!
Damage caused by false thread! Only use the M6 x 16 metric screws. A wrong screw can
damage the threads on the device.

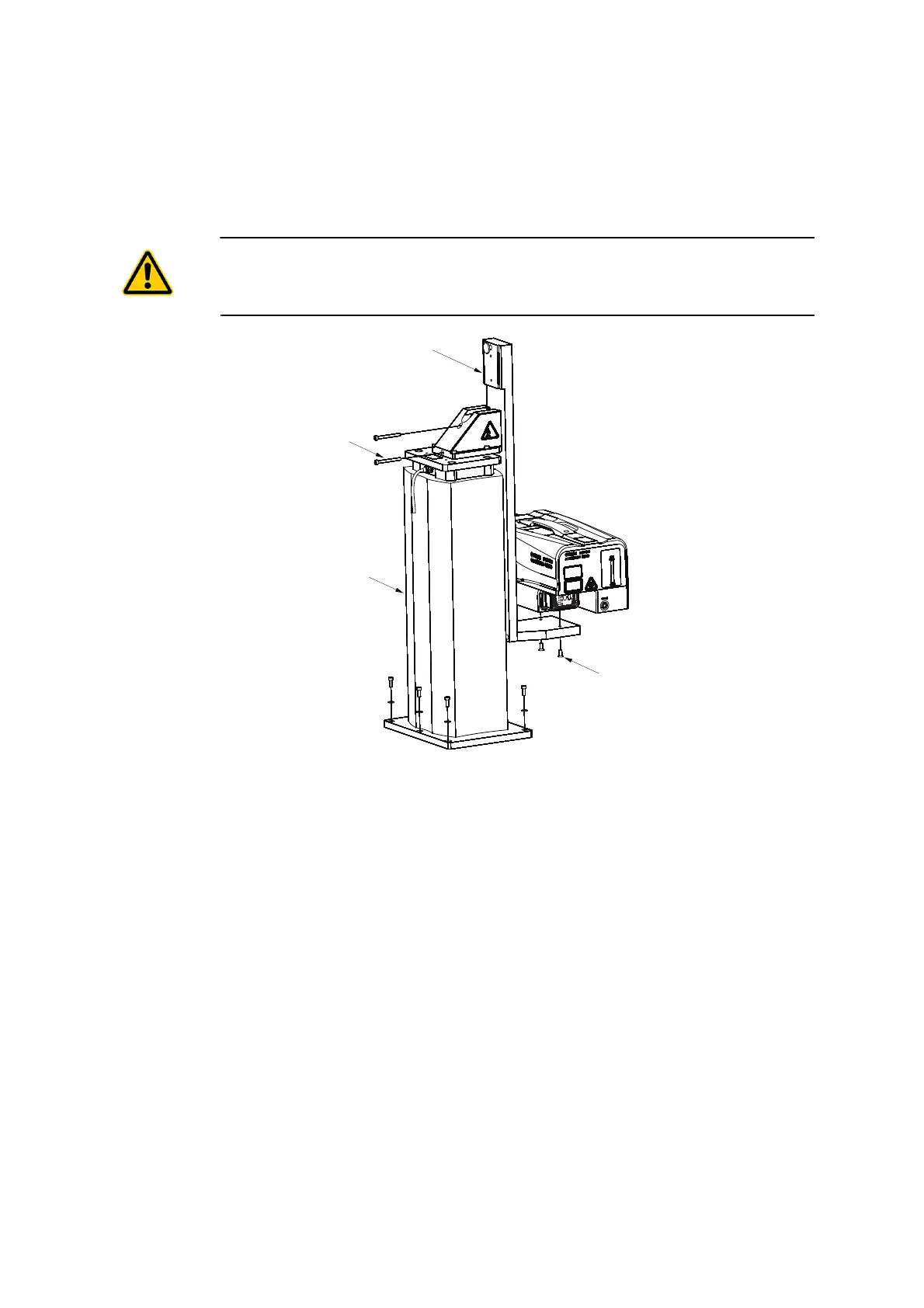

Figure A.10: Mounting the scanning head on the telescope drive of the horizontal test
stand
2. If applicable, undo the quick release plate or the mounting plate for the
pan-tilt head from the scanning head.
3. Attach the adapter plate on the underside of the scanning head using the
2 M6 x 16 countersunk screws.
4. Hang up the scanning head carefully with the adapter plate on the top of
the telescope drive.
5. Secure the scanning head by fixing the adapter plate to the telescope
drive using the 2 M6 x 60 Allen screws.
Adapterplate
Telescope drive
M6x60
Allen screws
M6x16
Countersunk screws
