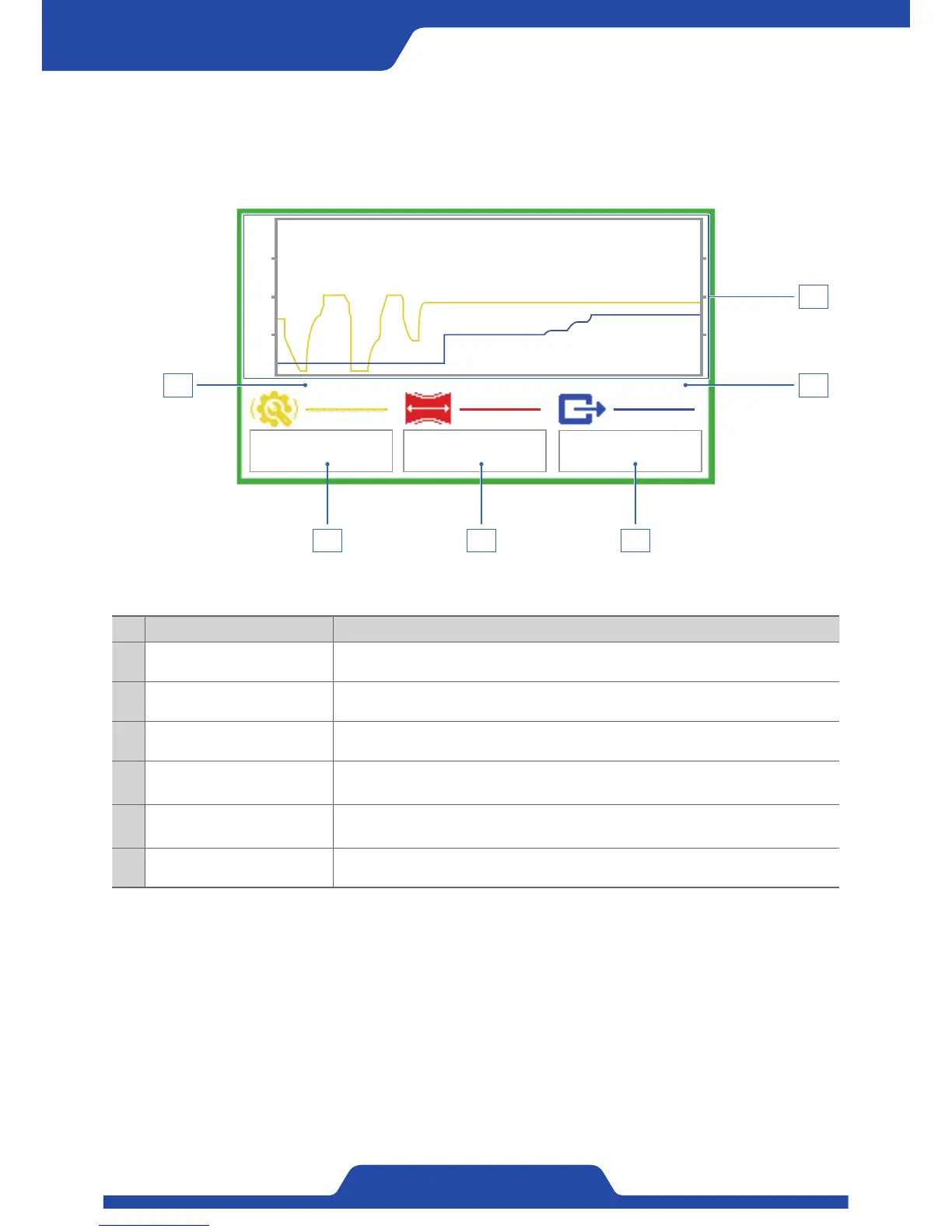

2) Type 2 (Tendency graph display): It is able to watch a change of tension
values, output values, target values
through tendency graph.
Name Guidance
1 Target tension It shows set-up target tension being by a user.
2 Measured tension It shows currently measured tension.
3 Controlled output It shows values of control output.
4 Graph display
It shows target tension, measured tension, and values of control output as a
shape of tendency graph.
5 Time setting
It is able to set the movement speed of a graph using left/right button.
(Time/Div)
6 Tension setting It is able to set the range of tension indicated using up/down button.
4.5kg 18.2kg
38.4%
◀ 0.05s ▶▲
10kg ▼
0
50
100
1 2 3
56
4
