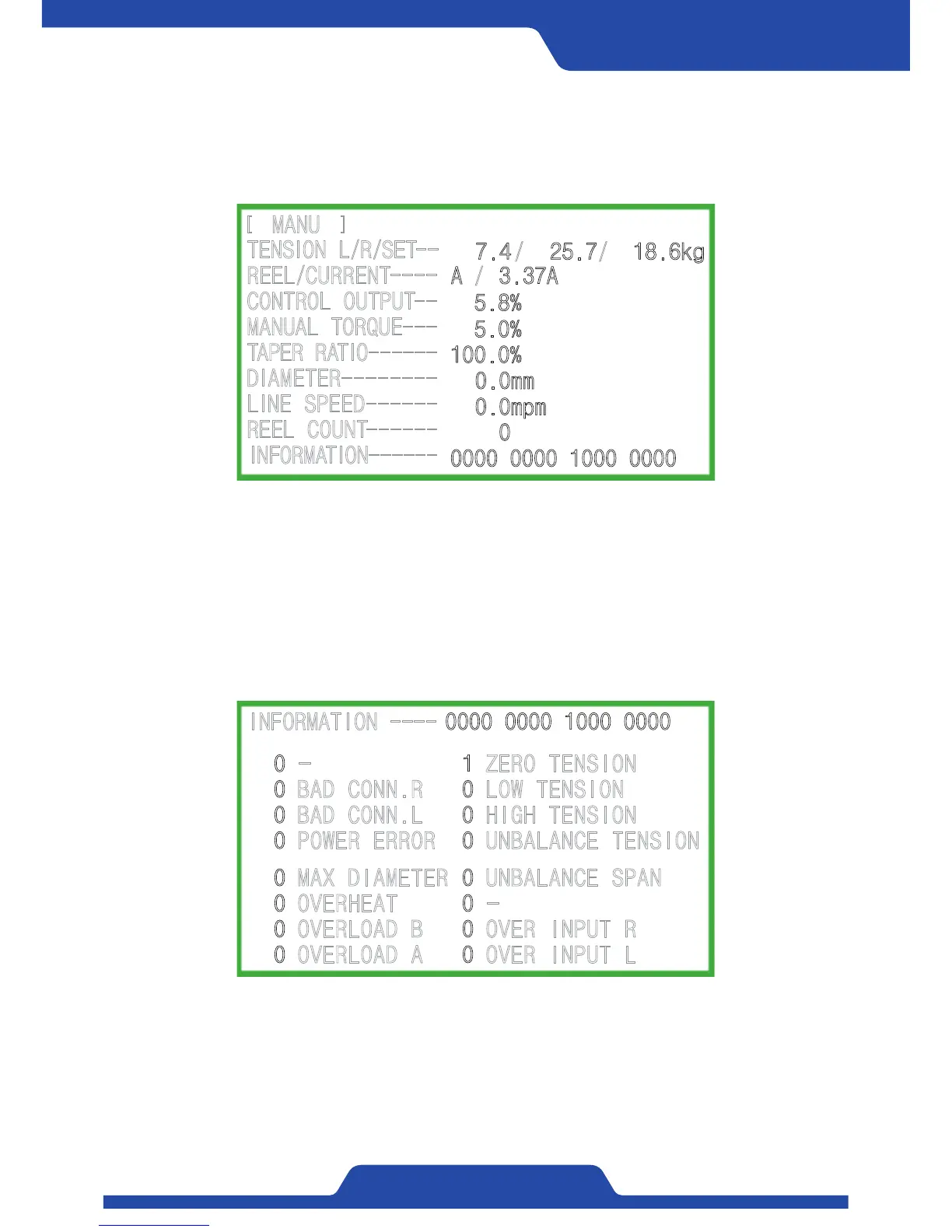

3) Type 3 (Data display): It shows standard setting values and the information
of current operation as a shape of data figures.
[ ]
MANU
TENSION L/R/SET--
REEL/CURRENT----
CONTROL OUTPUT--
MANUAL TORQUE---
TAPER RATIO------
DIAMETER--------
LINE SPEED------
REEL COUNT------
INFORMATION------
/
7.4
/
100.0%
0.0mm
0.0mpm
0
0000 0000 1000 0000
5.8%
5.0%
A 3.37A
/
25.7 18.6kg
4) Alarm message display: When pressing Left/right button longer together
in data display, it is able to check message
information.
0 - 1 ZERO TENSION
0 BAD CONN.R 0 LOW TENSION
0 BAD CONN.L 0 HIGH TENSION
0 POWER ERROR 0 UNBALANCE TENSION
0 MAX DIAMETER 0 UNBALANCE SPAN
0 OVERHEAT 0 -
0 OVERLOAD B 0 OVER INPUT R
0 OVERLOAD A 0 OVER INPUT L
INFORMATION ---- 0000 0000 1000 0000
15 7
8 0
Bit: 15 8 07
