Step 4:
For each CAN network, number sequentially on the “Module Number” row for each backbone
connection that has a module present.

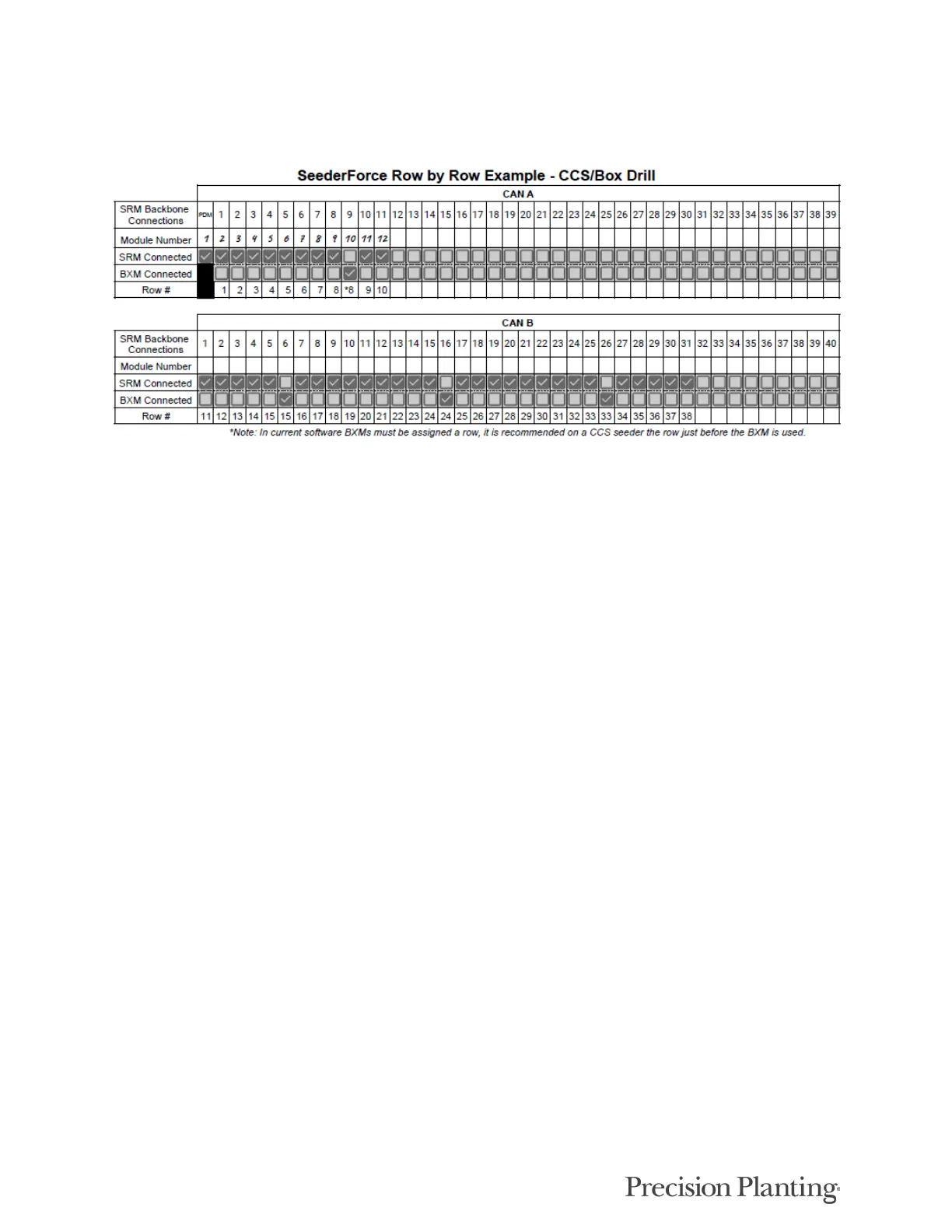

Using the above example, configure the Bus Devices on the 20|20 as follows:
CAN A Module Assignment: CAN A Module Location:
Backbone Connector 1 – SRM SRM – PDM (only on CAN A)
Backbone Connector 2 – SRM 1|SRM – Row 1
Backbone Connector 3 – SRM 2|SRM – Row 2
Backbone Connector 4 – SRM 3|SRM – Row 3
Backbone Connector 5 – SRM 4|SRM – Row 4
Backbone Connector 6 – SRM 5|SRM – Row 5
Backbone Connector 7 – SRM 6|SRM – Row 6
Backbone Connector 8 – BXM 7|SRM – Row 7
Backbone Connector 9 – SRM 8|SRM - Row 8
Backbone Connector 10 – SRM 9|BXM - Row 8
Backbone Connector 11 – SRM 10|SRM - Row 9
11|SRM - Row 10
