CCS/Drill Style Example

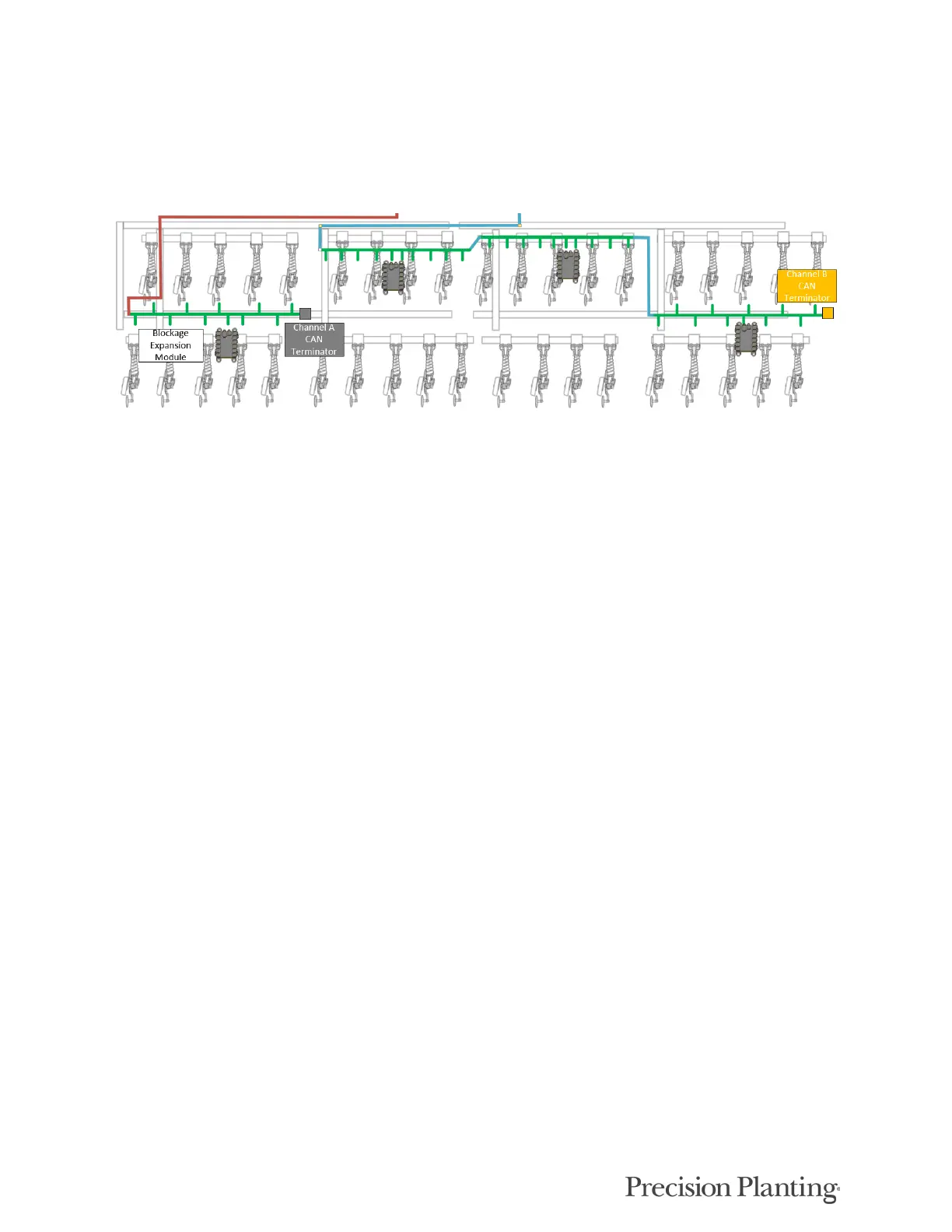

The sample below from the Module Index Worksheet – CCS/Box Drill Style Seeder (Appendix
C) is from an Air Seeder with 38 rows split into 2 CAN networks, CAN A (red line) and CAN B
(Blue line), with four Blockage Expansion Modules (BXMs).
In the above scenario, the Module Index Worksheet – CCS/Box Drill Style Seeder should be
filled out as follows:
Step 1:
Make a note of the in-ground rows that each BXM is plugged in between (CAN A: rows 6&7;
CAN B: rows 15&16, 24&25, and 33&34).
Step 2:
Mark the module present on each backbone connector (SRM or BXM)
Step 3:
For each network, label the Row # according to the SRM Backbone connection they are
connected to. For BXMs, assign the BXM to the row number just before the location of the
BXM, for consistency. (Ex: BXM plugged in between row 9 and row 8 — label it Row 8).
