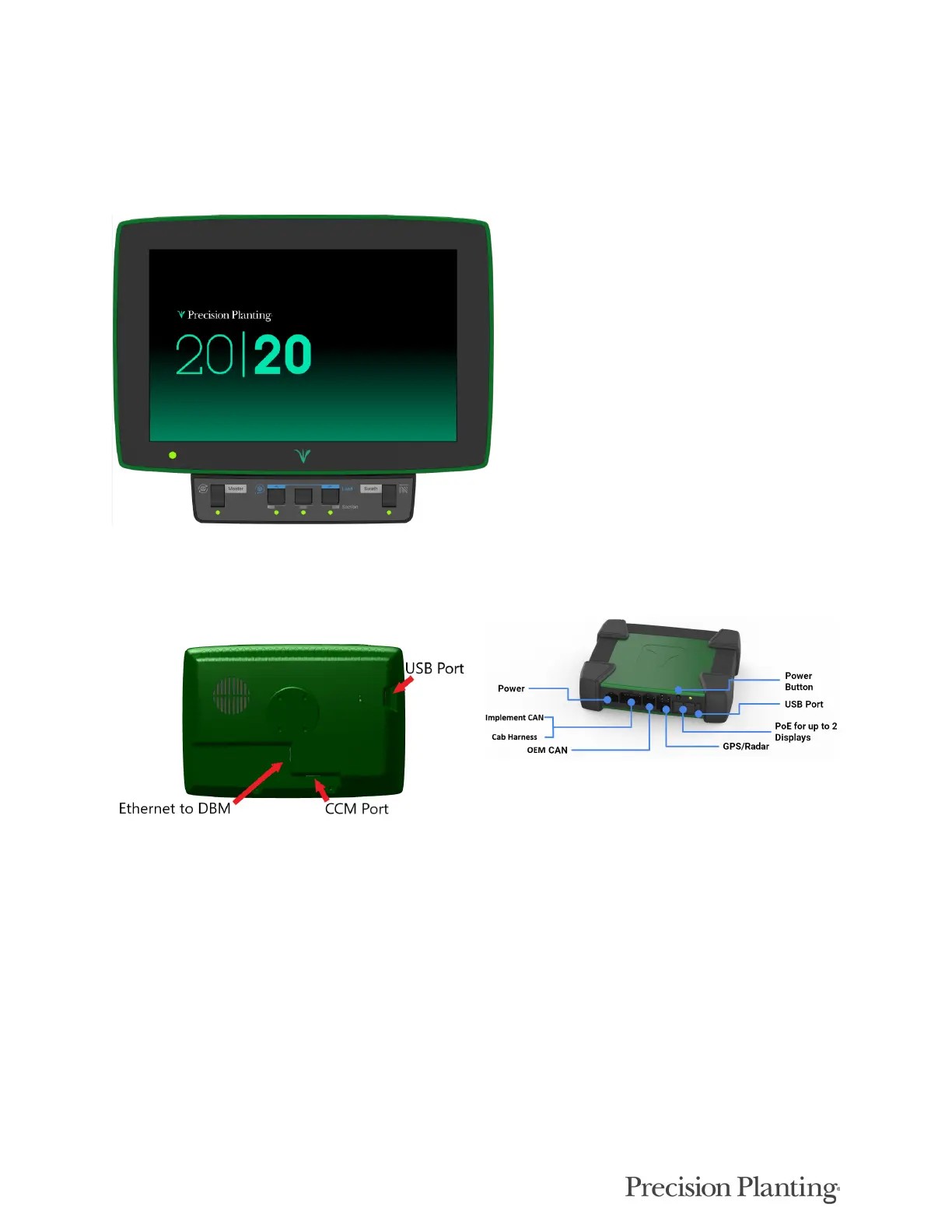

20|20 Hardware Overview
Either one or two displays can be connected to the Display Base Module at any time. One of
these two displays can be an iPad running the Climate Corporation FieldView Cab app. Displays
can be mounted in any location within the cab.
Display Base Module [DBM]
The Power over Ethernet [PoE] ports requires a Shielded Twisted Pair [STP] Ethernet Cable to
connect to a display. If only one display is being used, use either port. Both ports will be used if
connecting to two displays or one display and a FieldView Module [FVM]. The order by which
two displays or a single display and FVM are plugged in does not matter.
