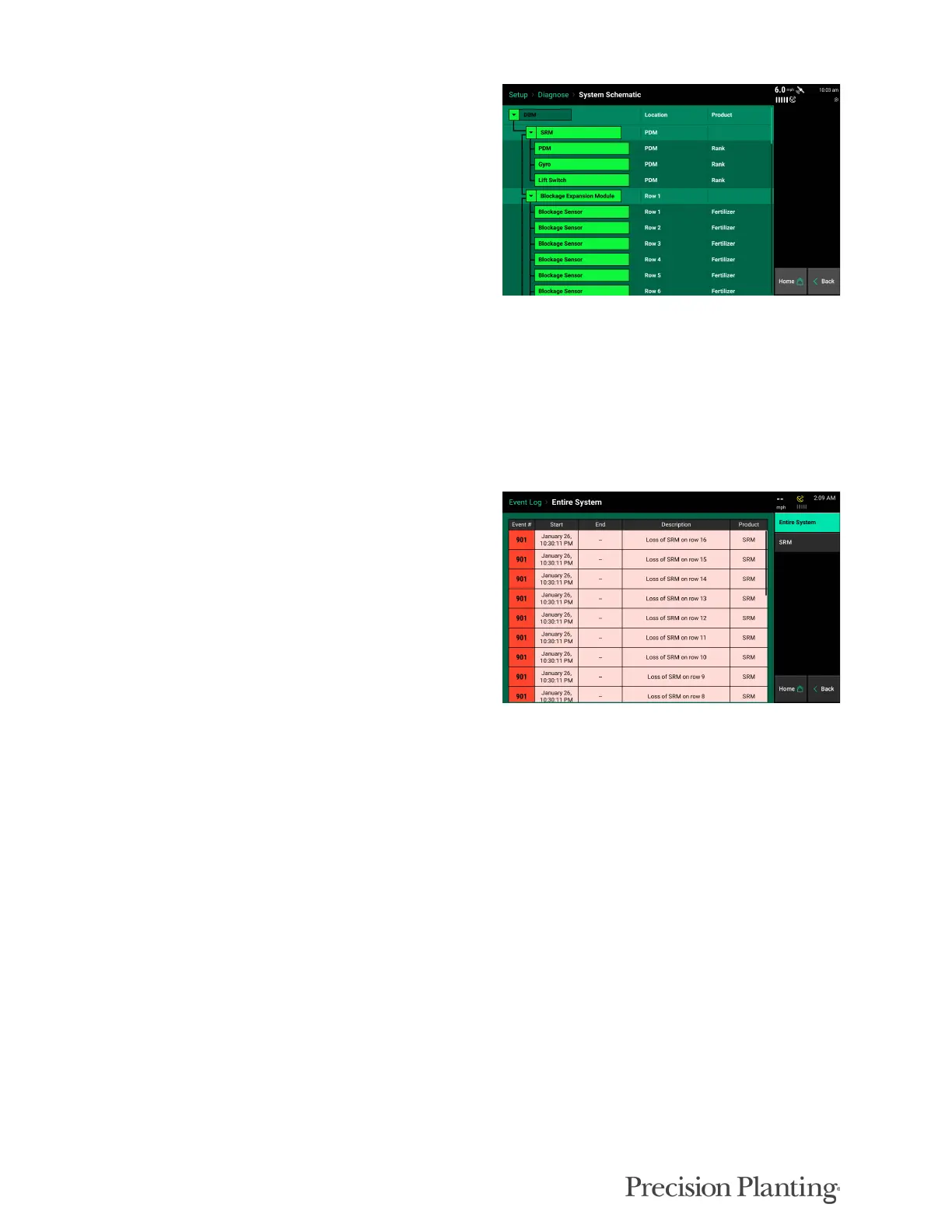

System Schematic - The system schematic is a
tree-style overview of all products setup or
communicating with the 2020. Select the arrow
on each box to show or hide rows. The system
schematic shows the location and Product name
for each module, as well as the state — signified
by color.
Event Log
Select the Event Log button to view a list of all event codes/error codes that have happened on
the system. The Event Log is in order from the most recent event to the oldest event with the
newest event codes at the top of the list. All events will have a number and a date/time when the
event happened along with a description of the event. Select any event code to view additional
details for that specific code
Additionally, event codes can be sorted by a
system type. Select the system type on the right
hand of the screen (e.g. SRM). System types will
only be available for selection if there are event
codes for specific systems. Otherwise, select
“Entire System” to view all event logs.
