Precor Experience Series User Manual

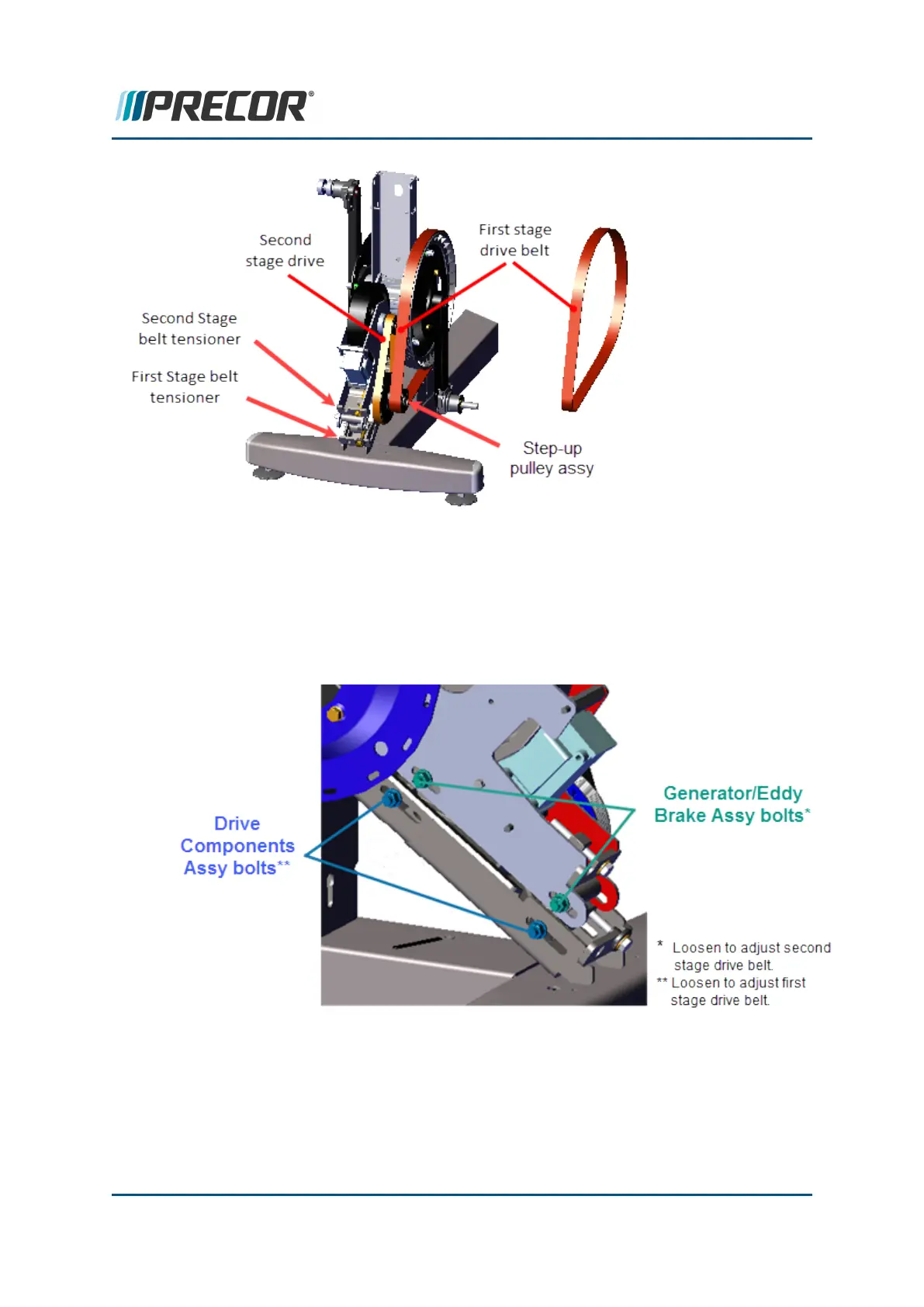

6. Tension the first stage drive belt, see "First Stage Drive Belt Tension Adjustment" on
page52.
7. Tension the second stage drive belt, see "Second Stage Drive Belt Tension Adjust-
ment" on page56.
8. Tighten the two Generator/Brake assembly and two Drive Components assembly car-
riage bolt fasteners, torque to 180 in-lbs (20.3 Nm).
9. Reconnect the Generator input cable (J1) and Eddy Brake load cable (J7) on the LPCA
board. Reinstall the LPCA/Battery module cover and secure with the #2 Phillips screw
fastener.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 133
6 Replacement Procedures
Generator/Brake Assembly Replacement
