1. Remove the Drive Access panel, see "Drive Access Panel Replacement" on page83.
2. Remove the left and right Drive Disk covers, see "Drive Disk Covers Replacement" on
page84.
3. Remove the left and right Stairarms and the Drive Housing covers, see "Drive Housing
Covers Replacement" on page88.
4. Remove the Drive Components assembly, see "Drive Components assembly Replace-
ment" on page127.

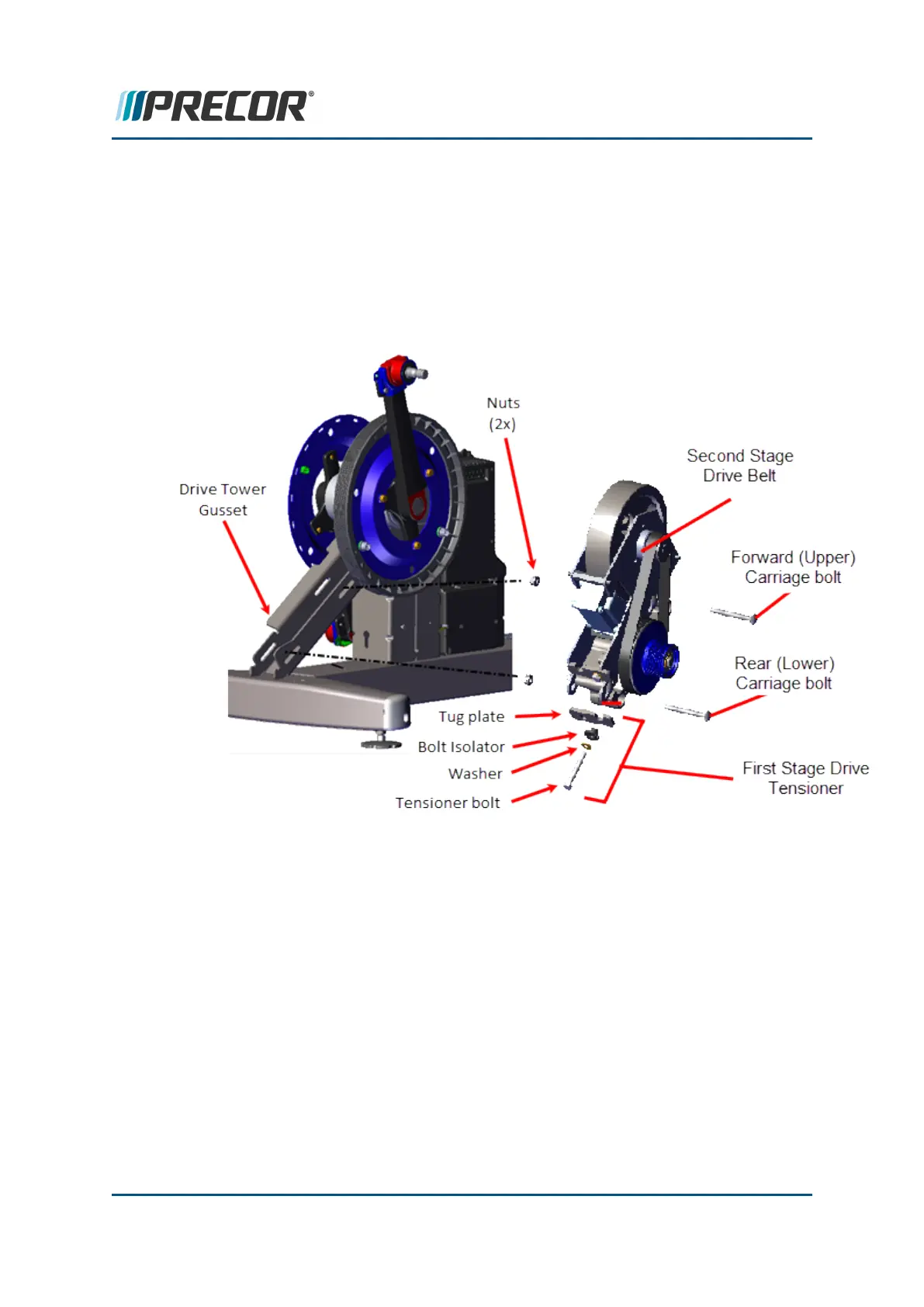

2. Use a 1/2" socket to remove the second stage belt tension hardware: the tensioner
adjustment bolt, washer, and tug plate.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 144
6 Replacement Procedures
Generator/Brake Assembly Replacement
