3. Remove the second stage drive belt by walking the belt off the Step-up Pul-
ley/Tensioner and Generator/Brake assembly pulleys.

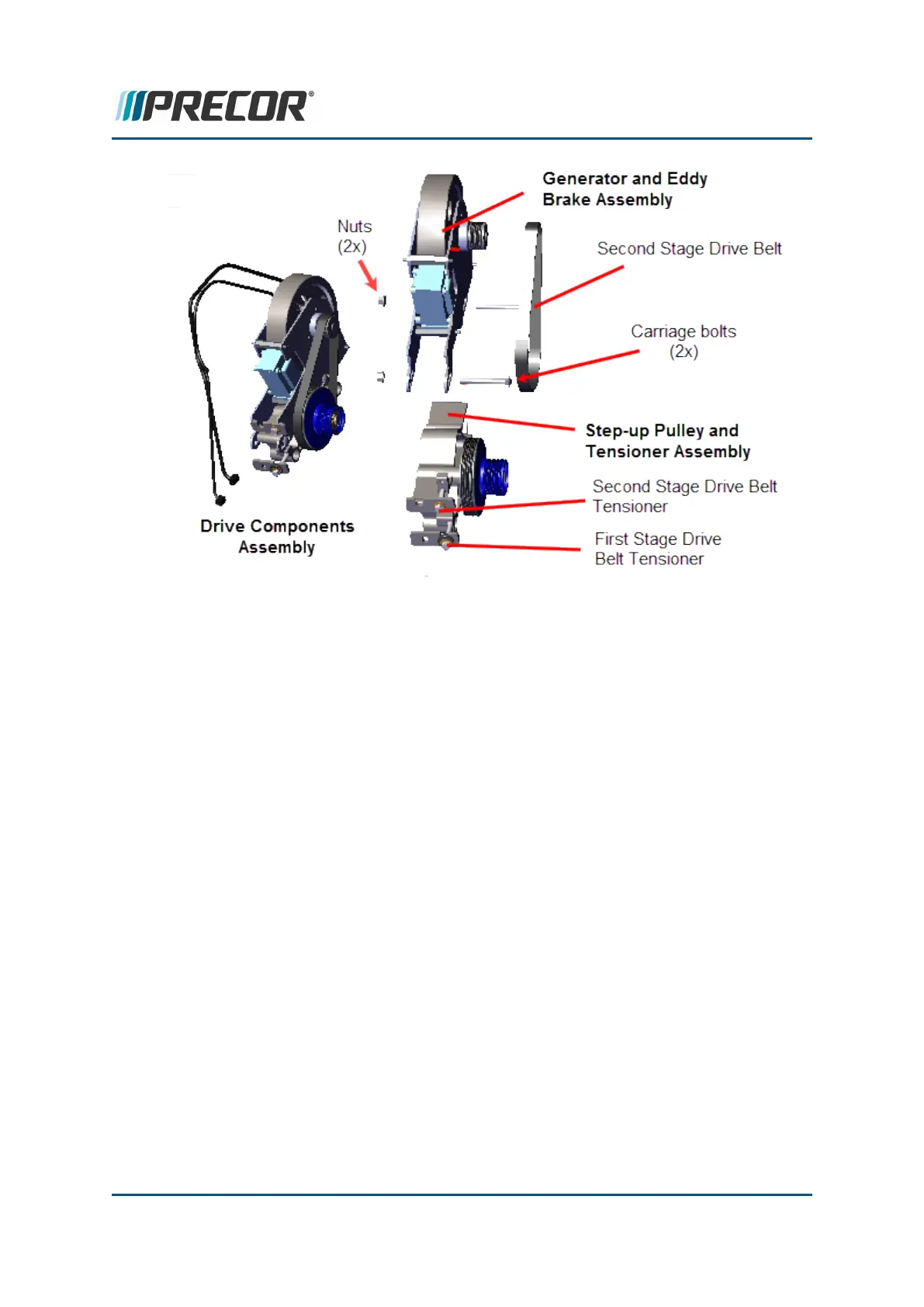

4. Use a 1/2" socket to remove the two carriage bolt fasteners to separate the Gen-
erator/Brake assembly from the Step-up Pulley/Tensioner assembly.
Installation Instructions
1. Place the Generator/Brake assembly onto the Step-up pulley/Tensioner assembly.
Secure using the two carriage bolts and nuts. Tighten the bolts just enough to keep the
carriage bolt heads inserted into the bolt belt adjustment slots to allow movement. Do
not fully tighten.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 145
6 Replacement Procedures
Generator/Brake Assembly Replacement
