2. Use a 1/2" socket to install the second stage belt tension hardware: the tensioner adjust-
ment bolt, washer, and tug plate. Tighten the tensioner bolt just enough to keep the ten-
sioner hardware in place.
3. Reinstall the second stage drive belt by walking the belt onto the larger Step-up Pul-
ley/Tensioner pulley and Generator/Brake assembly pulley. Tighten the tensioner bolts
just enough to keep the belt on the pulleys and tensioner hardware in place. Do not fully
tension or over tension the belt.
4. Reinstall the Drive Components assembly, see "Drive Components assembly Replace-
ment" on page127.
5. Adjust the First Stage Drive Belt tension, see "First Stage Drive Belt Tension Adjust-
ment" on page52.
6. Adjust the Second Stage Drive Belt tension, see "Second Stage Drive Belt Tension
Adjustment" on page56.
7. Reinstall the left and right Stairarms and Drive Housing covers, see "Drive Housing
Covers Replacement" on page88.
8. Reinstall the left and right Drive Disk covers, see "Drive Disk Covers Replacement" on
page84.
9. Reinstall the Drive Access panel, see "Drive Access Panel Replacement" on page83.
10. Verify machine operation and return to service, see "Standard Service Menus" on
page19.
.See Also
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 146
6 Replacement Procedures

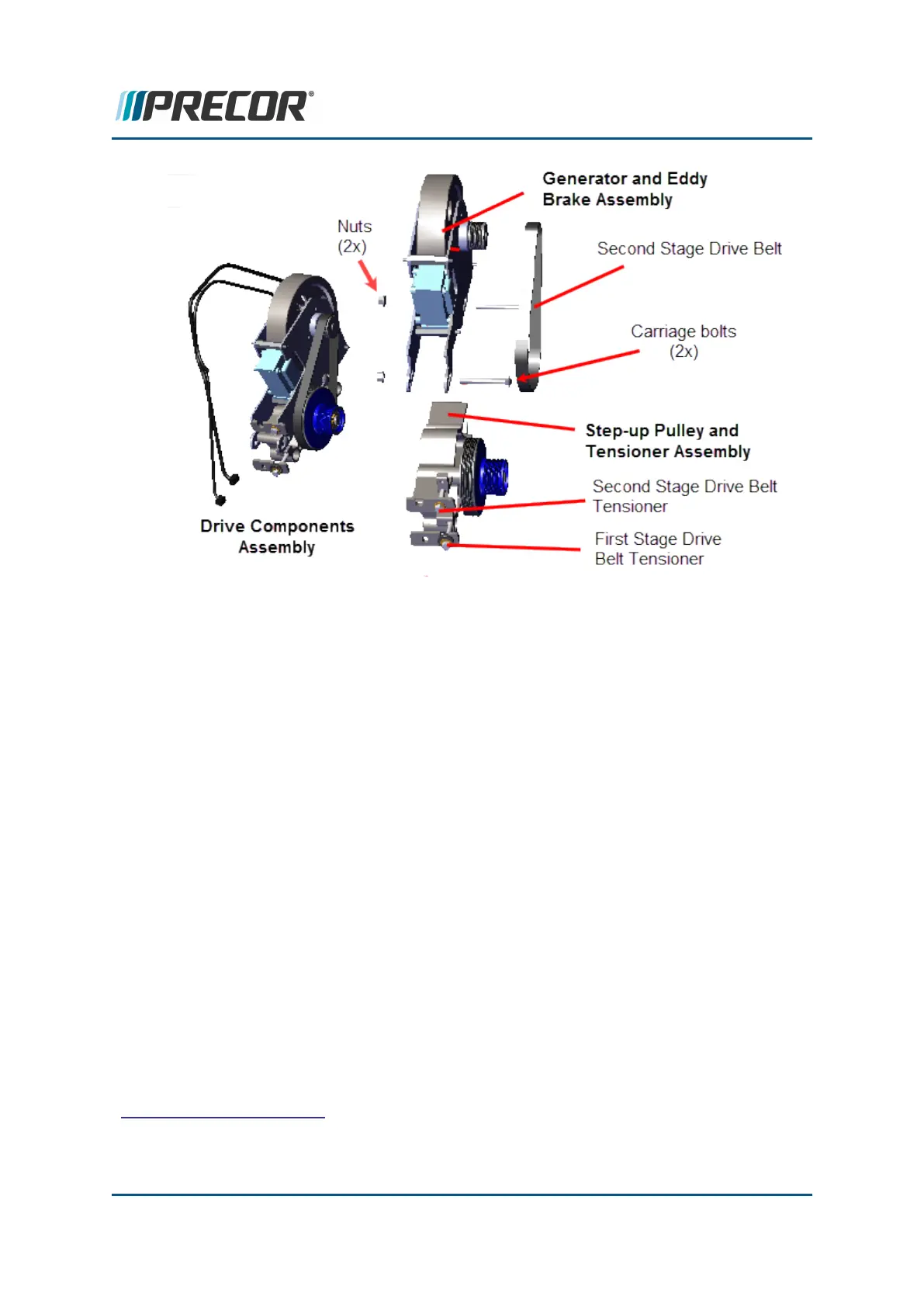

Generator/Brake Assembly Replacement
