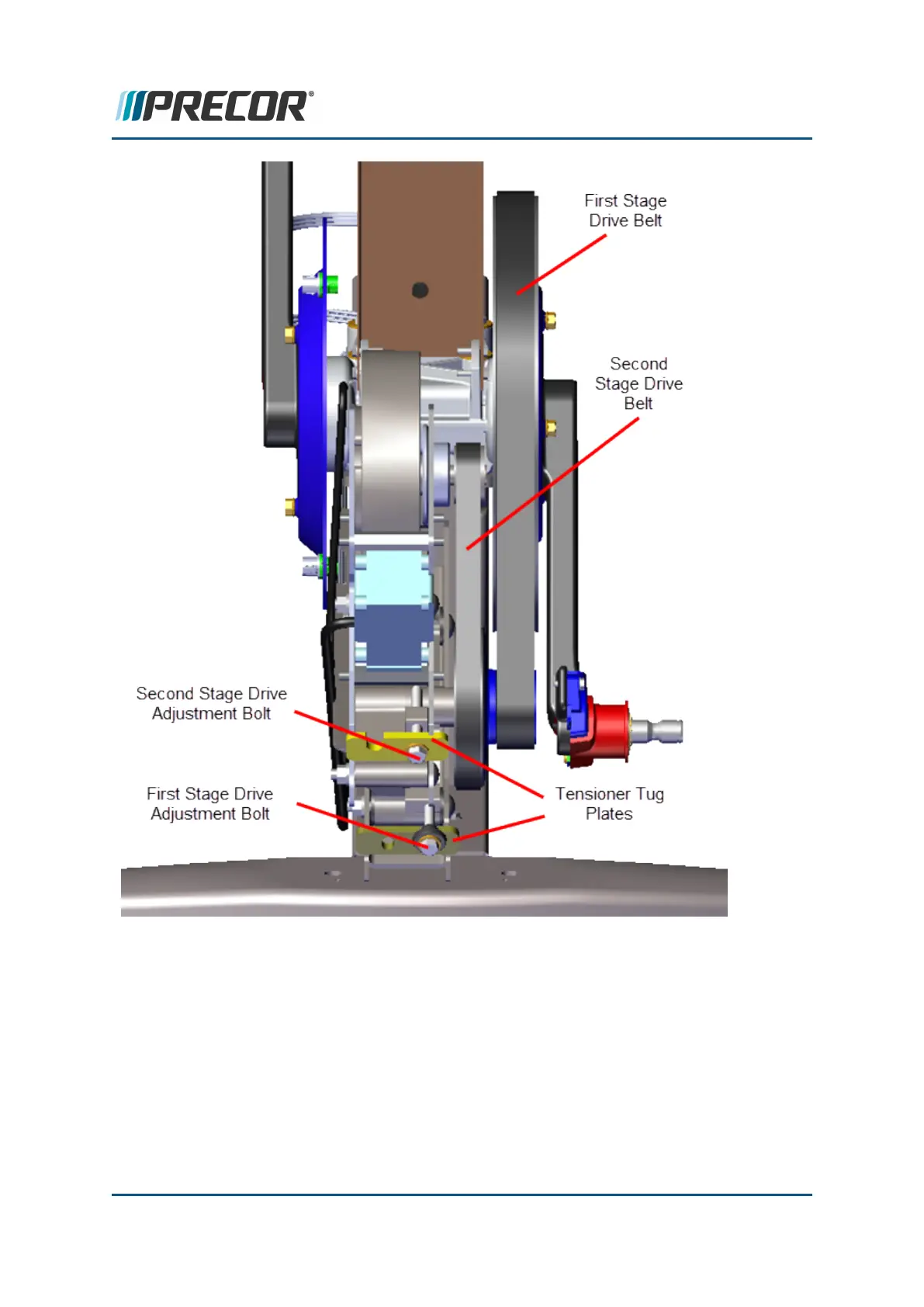

3. Tension the first stage drive belt to 140-150 lbs (63.5 - 68 kgs), see "First Stage Drive
Belt Tension Adjustment" on page52.
4. Verify the second stage drive belt is within the specified tension 110-120 lbs (50- 54.4
kgs), see "Second Stage Drive Belt Tension Adjustment" on page56.
5. Tighten the two Drive Components assembly carriage bolt fasteners, torque to 180 in-
lbs (20.3 Nm).
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 159
6 Replacement Procedures
Input Drive Assembly Replacement
