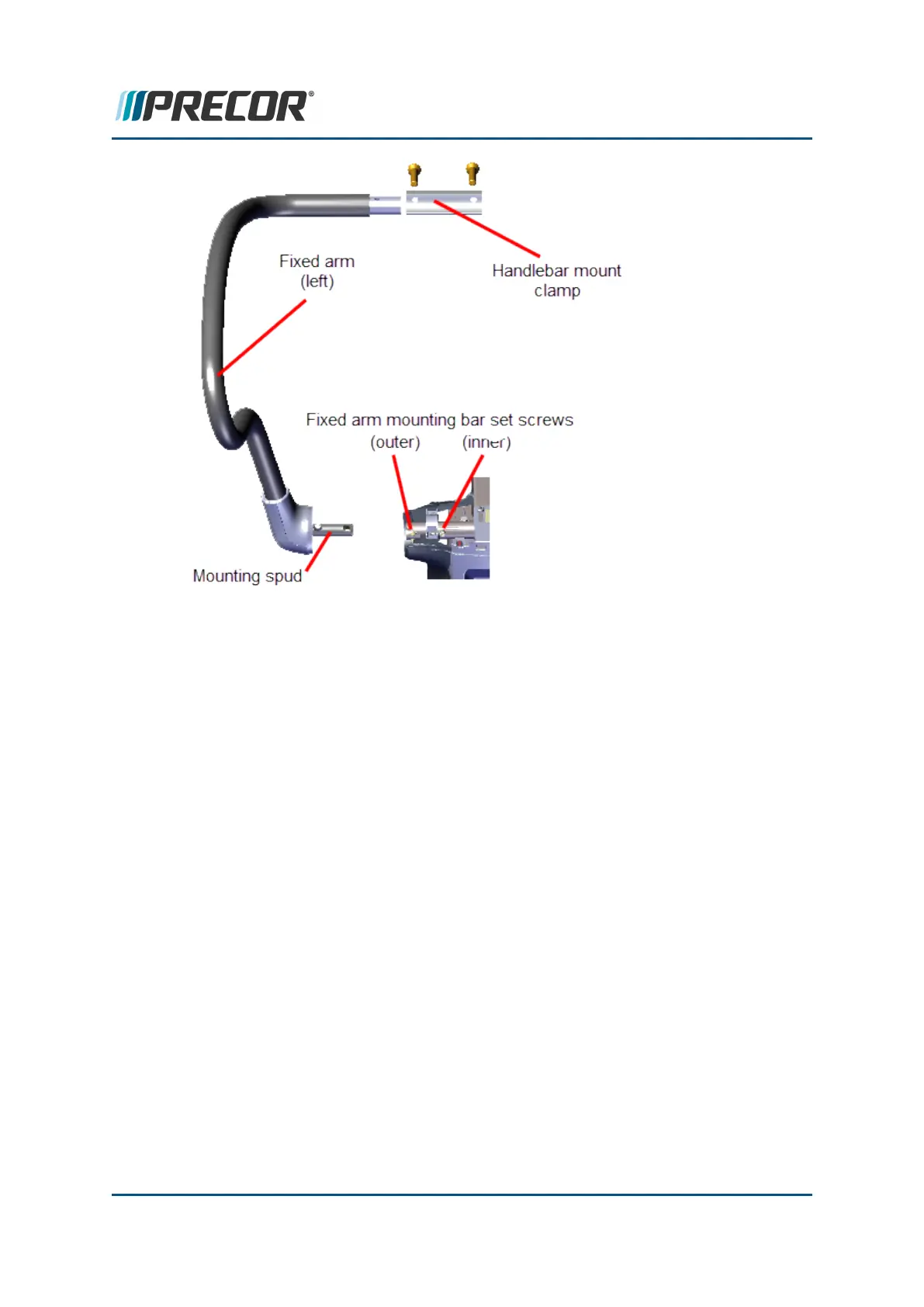

2. Position the Fixed arm into the Handlebar Mounting Bracket. Secure using the Handle-
bar Mount Clamp and two 5/32" hex key fasteners. Fully tighten and torque fasteners to
144 in-lbs (16.3 Nm).
3. Reinstall New Inner and Outer 3/16" hex key Nylock set screws, torque fasteners to
300 in-lbs (34 Nm)
CAUTION:Do not reuse the inner or outer Nylock patch set screws for installation.
Either removing or loosening the Nylock set screw will compromise the integrity of
the Nylock patch. Discard and order new set screws for installation (see Exploded
View Diagrams, bubble # 252).
1. Repeat procedure for both left and right handle bars.
2. Verify machine operation and return to service, see "Standard Service Menus" on
page19.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 180
6 Replacement Procedures
Fixed Arms Replacement
