Precor Experience Series User Manual

1. Remove the Lift Front Cover (see "Lift Front Cover Replacement" on page72), Access-
ory Tray (see "Accessory Tray Cover Replacement" on page77), and Lift Rear cover
(see "Lift Rear Cover Replacement " on page77)

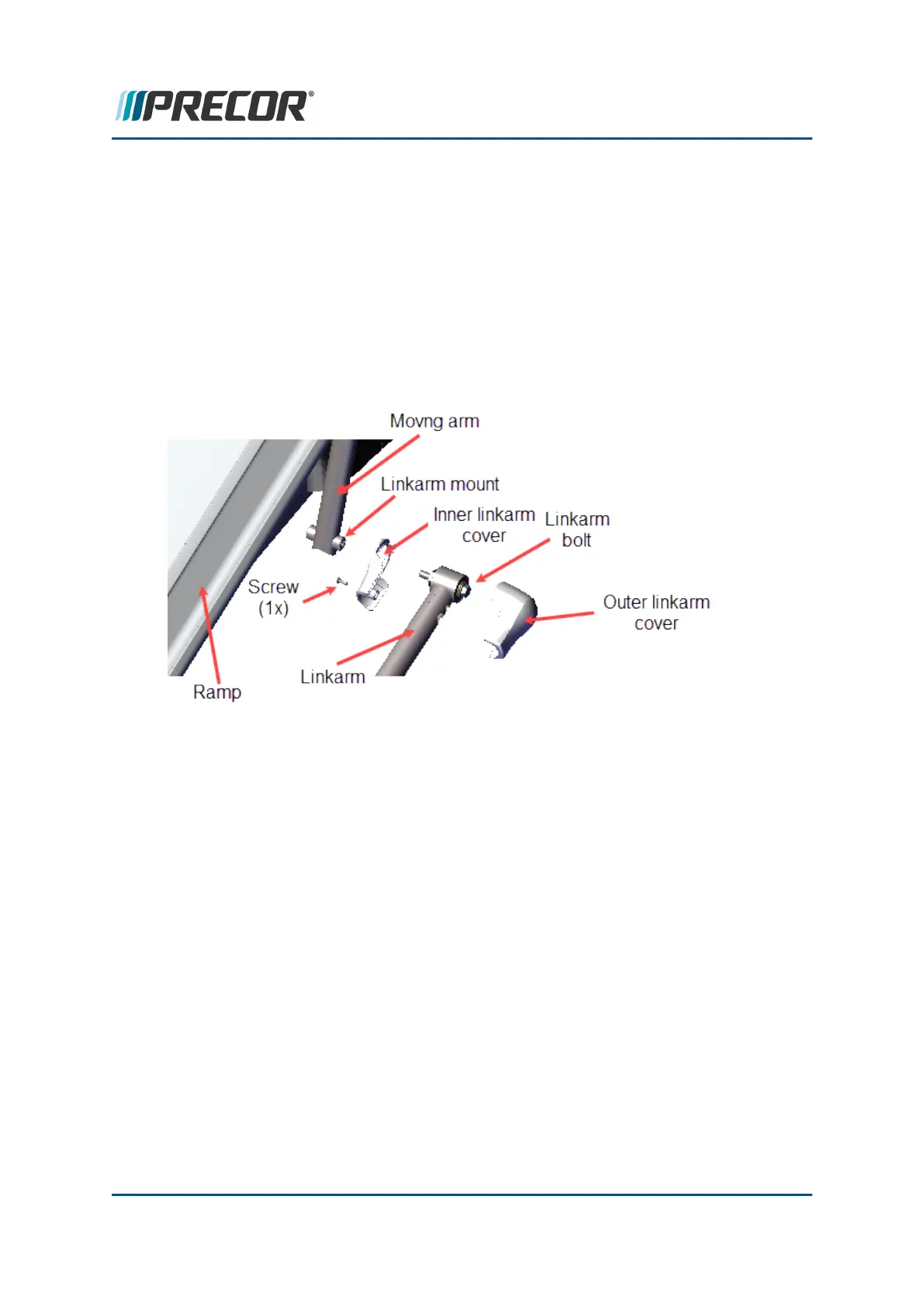

2. Disconcert the Linkarm from the Moving Arm:
a. Remove the #2 Phillips screw and the Outer Linkarm cover. Retain part(s) and/or
fastener(s) for installation.
b. Loosen the 9/16" Linkarm hex bolt and remove the Linkarm from the Moving Arm.
Retain part(s) and/or fastener(s) for installation.
c. Remove the Inner Linkarm cover from the Moving Arm. Retain part(s) and/or
fastener(s) for installation.
3. Loosen the top half of the Lift Side cover from the front tower weldment:
a. Remove the front upper corner and the middle front #3 Phillips Lift Side cover
weldment screws.
b. Then remove the two #2 Phillips screws and the Upper Pivot Anchor bracket.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 182
6 Replacement Procedures
Moving Arms Replacement
