4. Remove the Moving Arm:
a. Remove the 3/16" hex key pivot shaft outer Nylock set screw. Do not loosen and
then retighten the Nylock set screw, this will damage the Nylock patch. Discard
and do not reuse the Nylock set screw.
b. Then remove the 3/16" hex key pivot shaft inner set screw and gently pull the

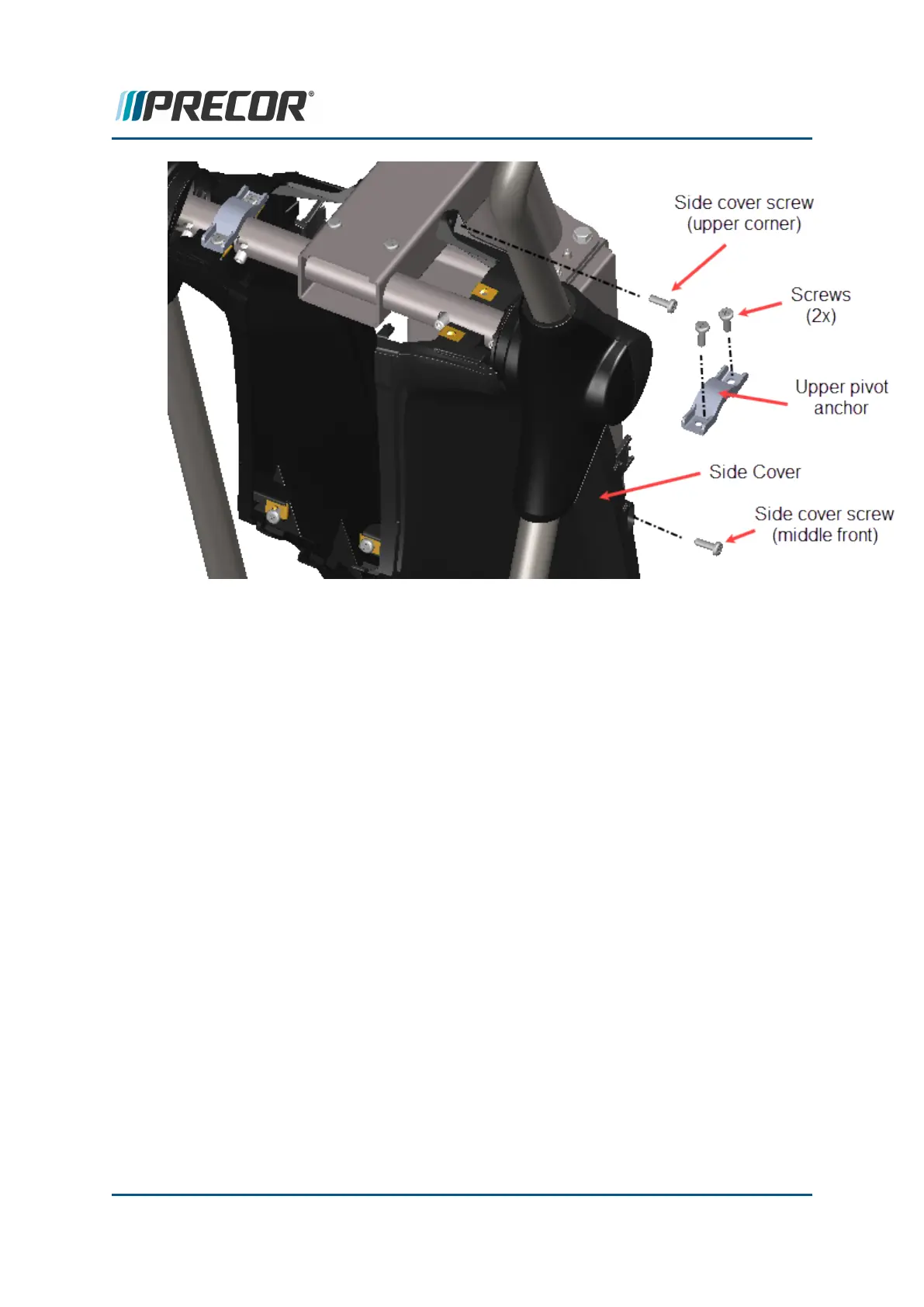

Moving Arm outward and over the side cover to remove. Discard and do not
reuse the Nylock set screw.
CAUTION:Do not reuse the inner or outer Nylock patch set screws for installation.
Either removing or loosening the Nylock set screw will compromise the integrity of
the Nylock patch. Discard and order new set screws for installation (see Exploded
View Diagrams, bubble # 252).
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 183
6 Replacement Procedures
Moving Arms Replacement
