Installation Instructions

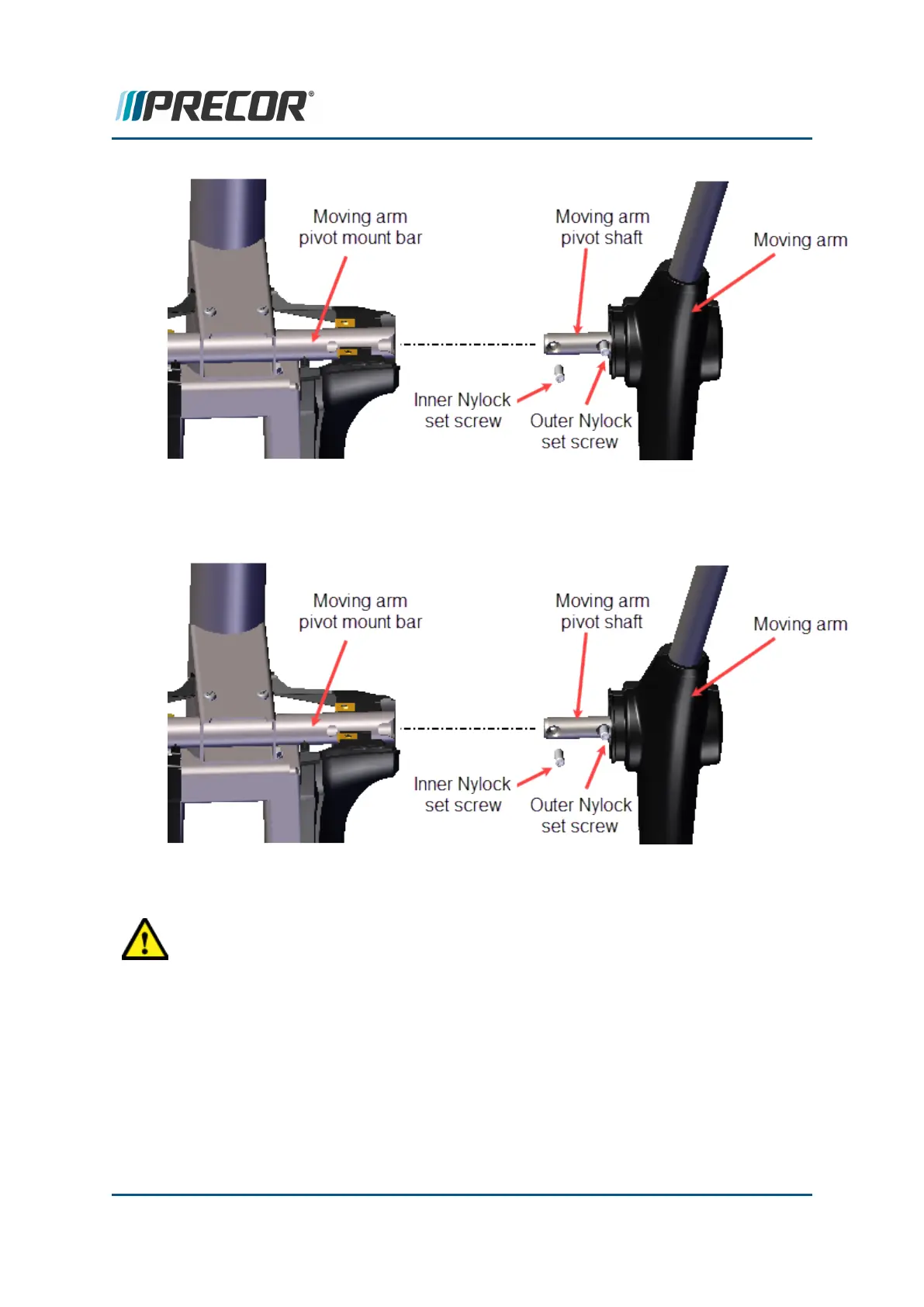

1. Reinstall the Moving Arm pivot shaft into the weldment moving arm pivot mount bar.
2. Secure using new 3/16" hex key pivot shaft inner and outer, Nylock set screws, torque
to 300 in-lbs (34 Nm).
CAUTION:îîDo not reuse the inner or outer Nylock patch set screws for install-
ation. Either removing or loosening the Nylock set screw will compromise the integ-
rity of the Nylock patch. Discard the used set screws and order new set screws for
installation (see Exploded View Diagrams, bubble # 252).
1. Reinstall the upper corner and middle front #3 Phillips Lift Side cover weldment screws,
torque to 30 +/- 9 in-lbs (3.4 +/- 1 Nm).
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
