Precor Experience Series User Manual

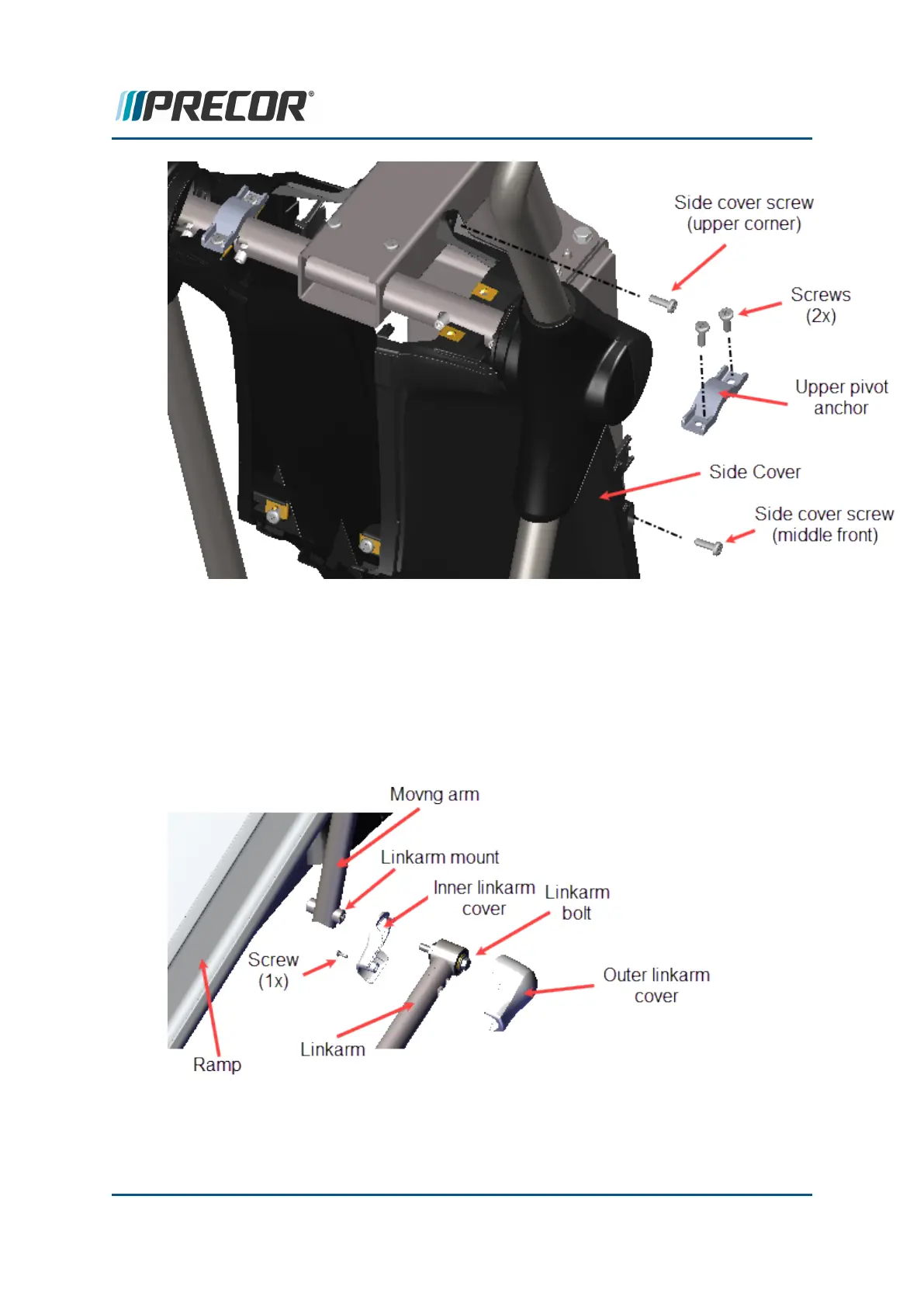

2. Reinstall the Upper Pivot Anchor bracket and secure using the two #2 Phillips screws,
torque to 30 +/- 9 in-lbs (3.4 +/- 1 Nm).
3. Reattach the Linkarm to the Moving Arm:
a. Reinstall the Inner Linkarm cover onto the Moving Arm Linkarm mount.
b. Then attach the Linkarm to the Moving Arm and secure using the 9/16" bolt,
torque to 300 +/- 90 in-lbs (34 +/- 10 Nm).
c. Reinstall the Outer Linkarm cover and secure using the #2 Phillips screw.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 185
6 Replacement Procedures
Moving Arms Replacement
