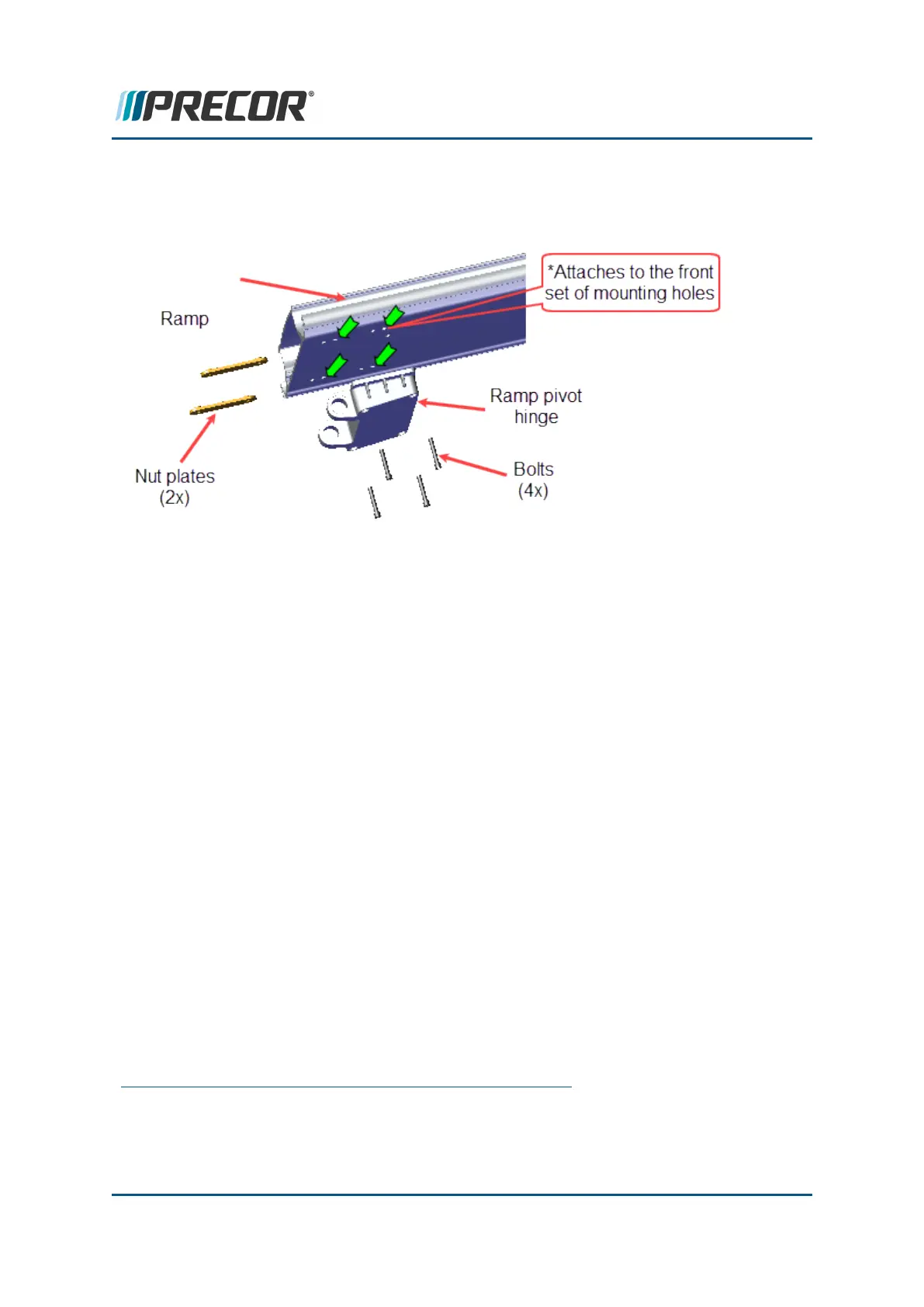

mounting holes. Then insert a Nut plate and secure using two 3/16" hex key bolts. Install
the second Nut Plate and secure using two 3/16" hex key bolts. Torque
1
bolts to 96 in-
lbs (8 ft-lbs or 10.8 Nm).
Ramp Installation
3. Reinstall the ramp front onto the lift motor yoke arm and secure using two 1/2" bolts
(2x), washers (2x), and nuts (2x). Make sure to hold the ramp while installing the fasten-
ers. Torque bolts to 330 in-lbs (27.5 ft-lbs or 37.2 Nm).
1
Torque is a measure of the force that can cause an object to rotate about an axis. Bolt/nut
example: 5 NM torque is equivalent to 5 newton's of force applied one meter from the center of
the bolt, 6 ft-lb is equivalent to 6 lbs of force applied 1 foot away from the center of the bolt.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 192
6 Replacement Procedures
Ramp Assembly Replacement
