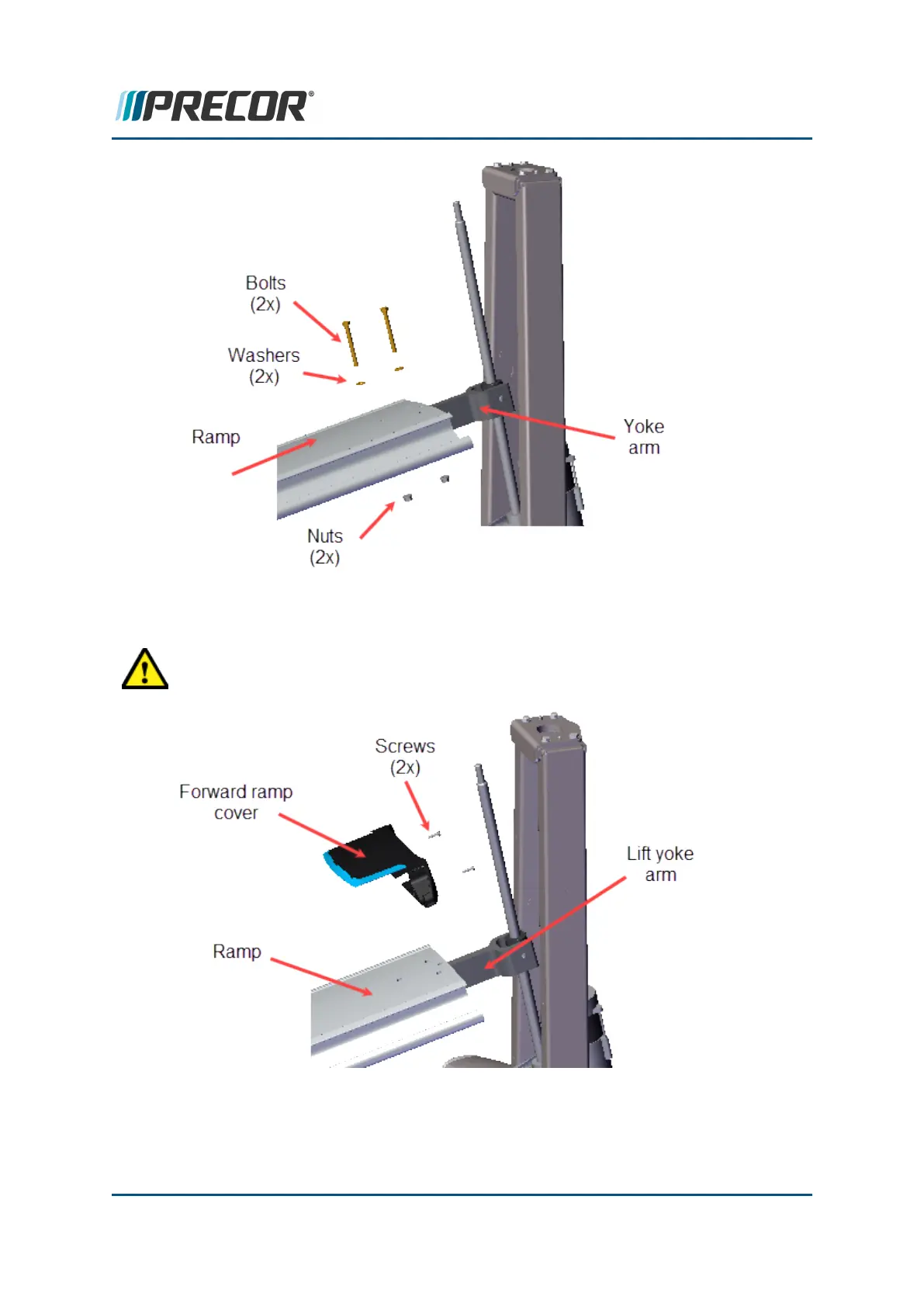

4. .Reinstall the Forward Ramp cover and secure using the two #2 Philips pan head
screws. Torque screws to 30 +/- 9 in-lbs (3.4 +/- 1 Nm).
CAUTION:Do not over tighten the forward ramp cover screws which could strip
and damage the ramp screw mounting threads.
5. Carefully move the ramp forward and set the ramp pivot mounting bracket onto the
frame weldment pivot mount. As the ramp is moved forward, carefully guide the lift
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 193
6 Replacement Procedures
Ramp Assembly Replacement
