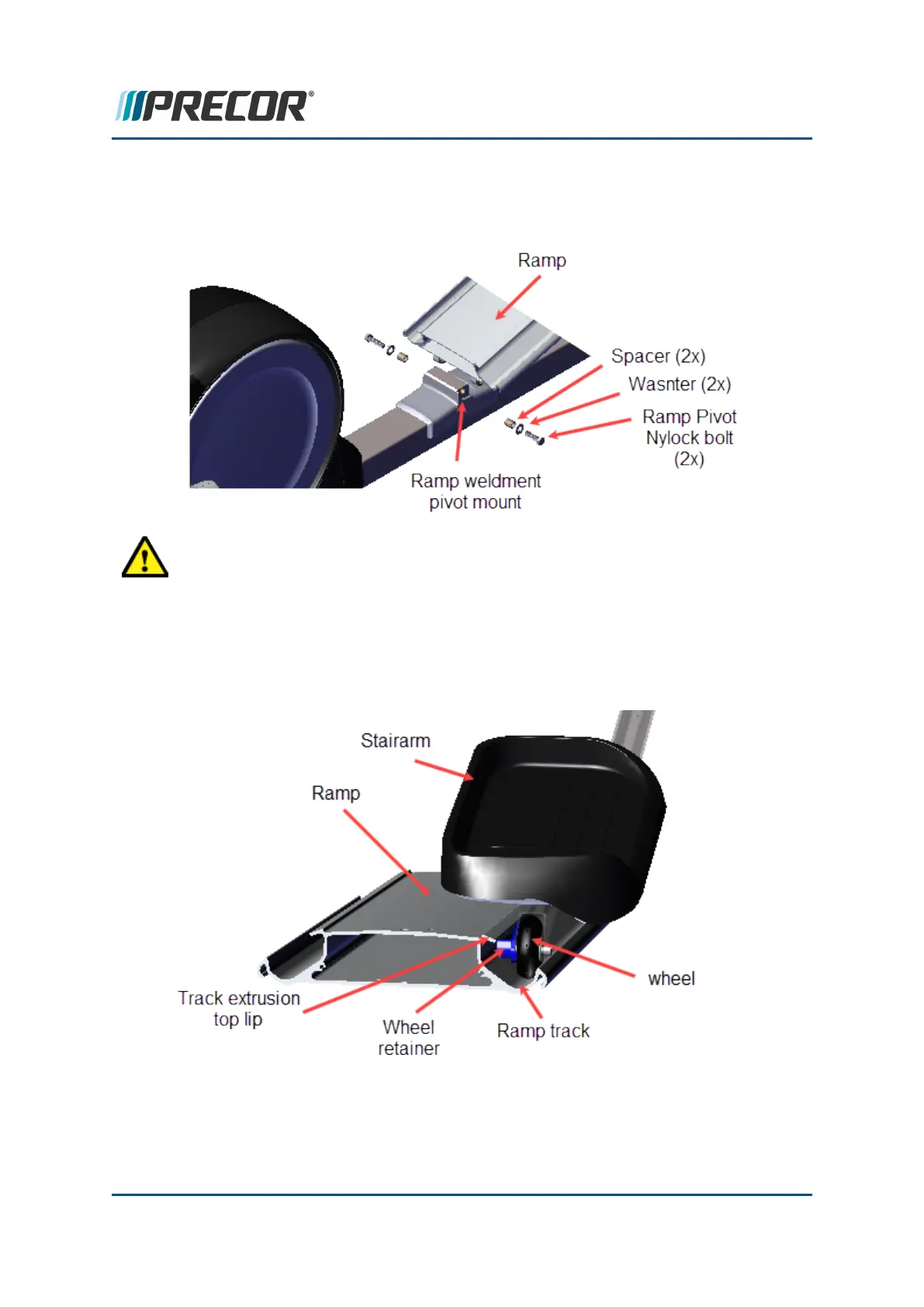

motor yoke and jackscrew into the front tower weldment. Align the pivot bolt mounting
holes and secure using the two 3/4" (19 mm) ramp pivot bolts, flat washers, and
spacers. Torque bolts to 1080 in-lbs (90 ft-lbs or 122 Nm).
CAUTION:Do not reuse the Ramp Pivot Nylock patch bolt fasteners for installation.
Discard the used bolts and order new bolts for installation (see Exploded View Dia-
grams, bubble # 361).
6. Reinstall the left and right Stairarms onto the ramp. Insert the wheel from the bottom of
the track making sure that the wheel retainer is positioned underneath the ramp track
extrusion top lip. Verify that the Stairarm wheel is correctly installed by attempting to pull
the Stairarm upward off the track, reinstall the wheel if needed.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 194
6 Replacement Procedures
Ramp Assembly Replacement
